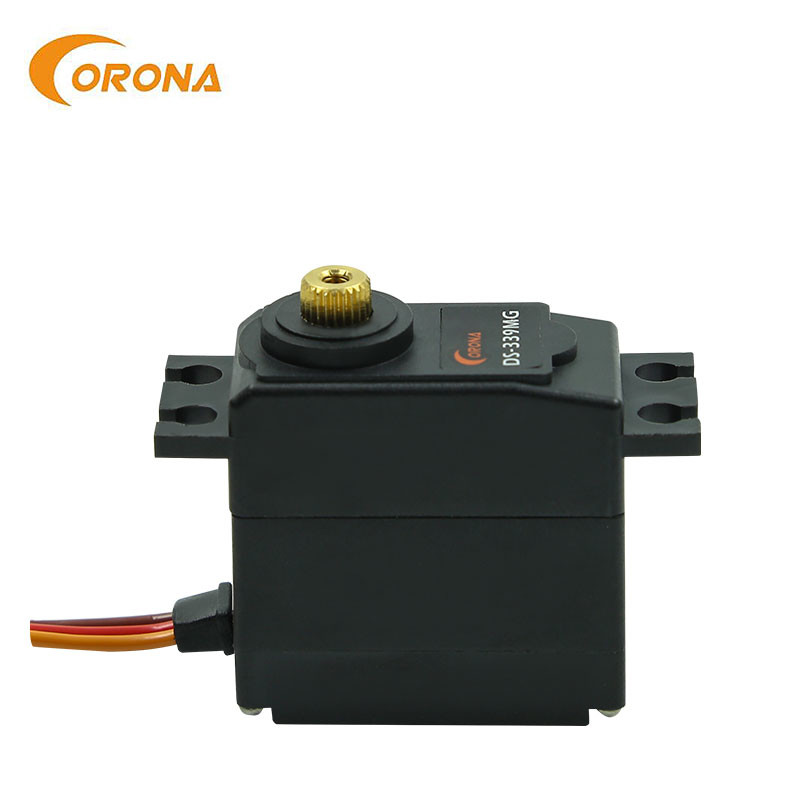

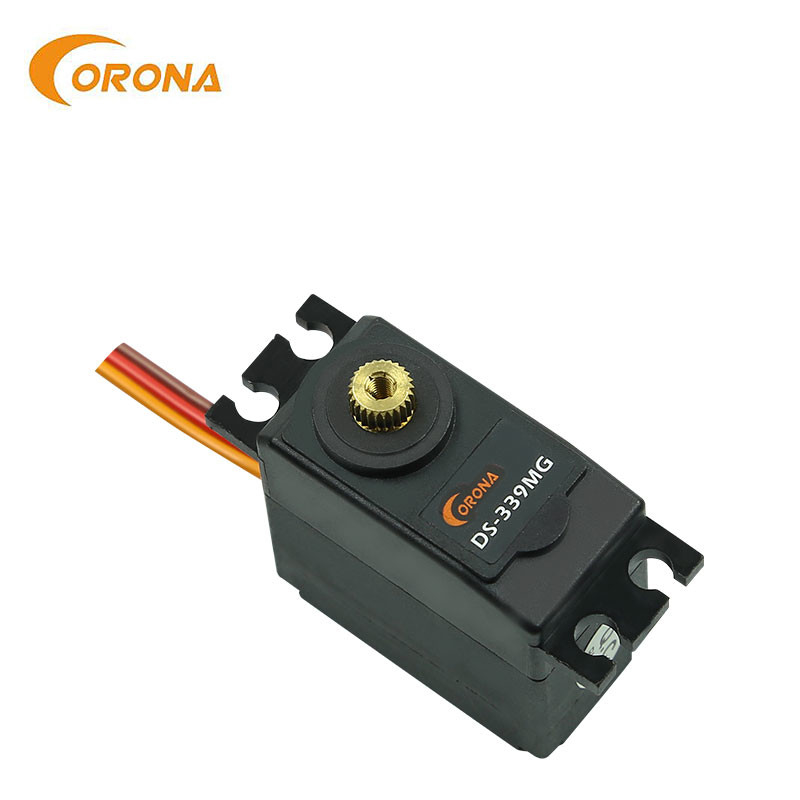

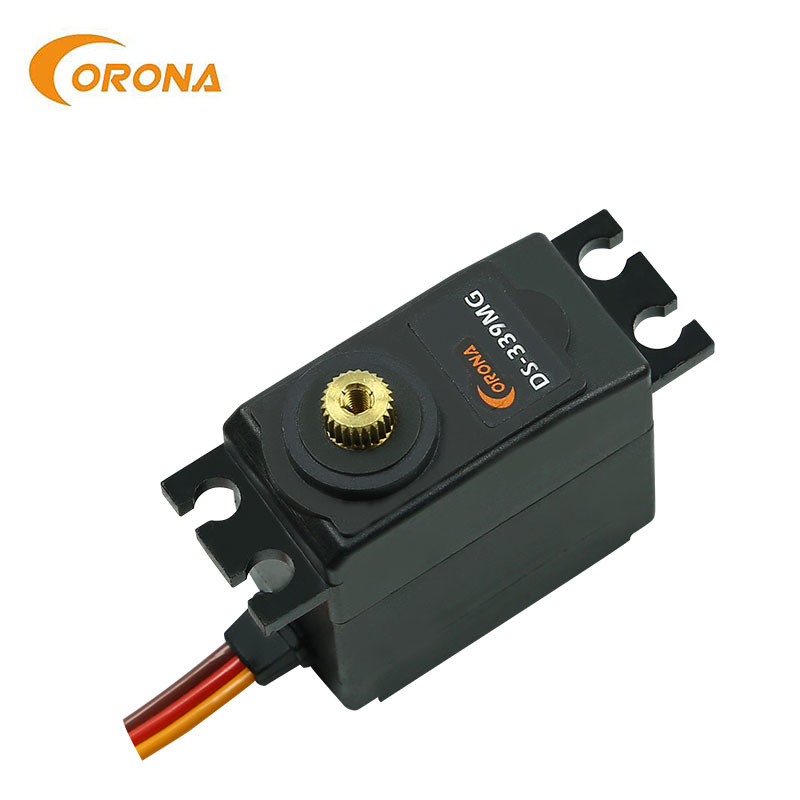

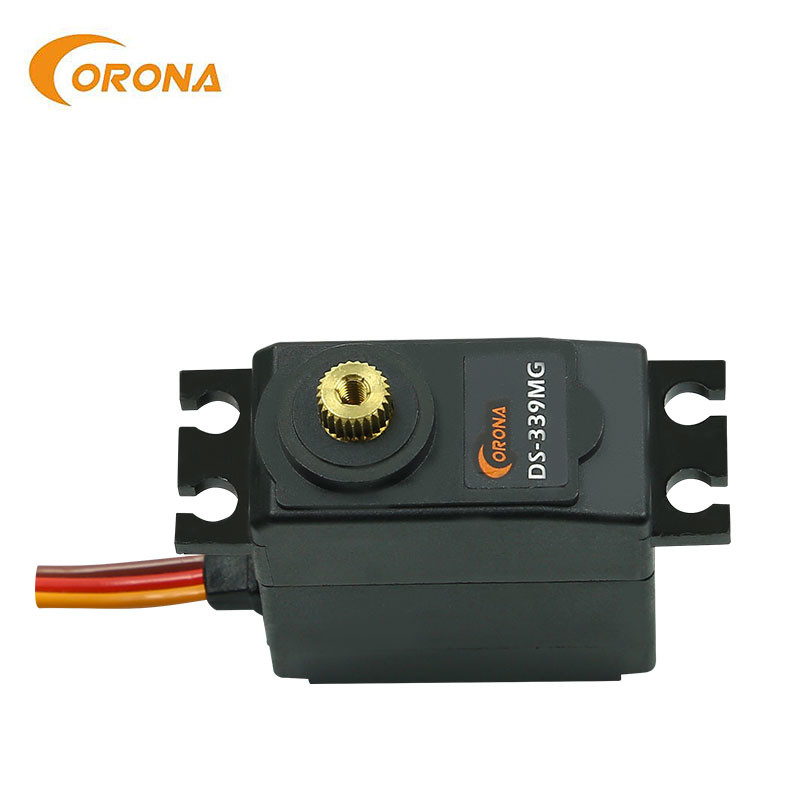

5 Kg Rc Servo Motor Medium Digital Metal Gear Boat Plane Servo Corona Ds 339 Mg

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Corona
Certification: ISO9001 CE ROHS
Model Number: DS339MG
Minimum Order Quantity: 2pieces
Price: $7.19/pieces $9.59 pieces
Packaging Details: box
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 30000 pcs/per Month
Detail Information
Features: 5kg .cm Remote Distance: 100m
Controller Battery: 2s Material: Plastic
Video Capture Resolution: 1080p FHD Operator Skill Level: Beginner
Indoor/Outdoor Use: Indoor-Outdoor Size: 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight: 32g Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA Stall Torque: 4.4kg.cm / 5.0kg.cm
Dead Band: ≤3uSec Potentiometer: 5 Slider/Indirect Drive
Ball Bearing: MR106 Gear: Metal
Connector Wire Length: 300mm
High Light:

rc servo 5 kg

,

servo corona ds 339 mg

,

5 kg servo motor


Product Description

 Corona DS339MG 5kg 0.14sec medium size digital metal gear rc toys boat Plane servo

The most common order is signal, +voltage, ground. The standard voltage is 4.8 V DC, however 6 V and 12 V is also used on a few servos.



Product Description



Item No DS339MG
Size 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight 32g
Operating Voltage 4.8V / 6.0V
Operating Current 300mA / 400mA
Operateing speed 0.14sec.60º/ 0.15sec.60º
Stall torque 4.4kg.cm / 5.0kg.cm
Dead band ≤3uSec
Operating speed 40º/one side pulse traveling 400us
Potentiometer 5 slider/Indirect Drive
Ball bearing MR106
Gear Metal
Connector wire length 300mm
Operating Temperature Range -20 ℃ to +60℃



These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
5 Kg Rc Servo Motor Medium Digital Metal Gear Boat Plane Servo Corona Ds 339 Mg 0

Servo Applications:
1. Electric lock (anti-heft door lock servo)

2. Smart lamp Switch Servo

3.  machine safety mechanism servo

4. Water/gas valve control Servo
5. Luggage case lock servo

6. Camera gimbal control servo
7. UAV heavy duty servo

7. Servo Release Servo Drop

9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo

11. Smart bike gear change servo
12. Electric car mirror servo

13. Car seat adjustment servo
14. Robot arm servo

15. Medical equipment servo

16. Curtain Servo

17. Robot servo

18. Wheel servo

19. Car window winding servo

5 Kg Rc Servo Motor Medium Digital Metal Gear Boat Plane Servo Corona Ds 339 Mg 1

5 Kg Rc Servo Motor Medium Digital Metal Gear Boat Plane Servo Corona Ds 339 Mg 2
