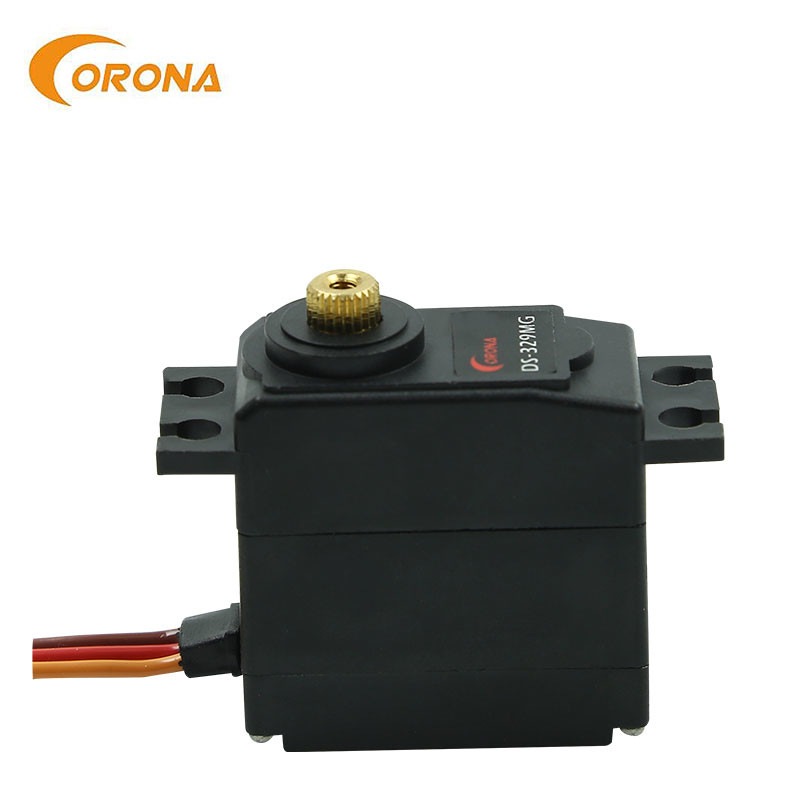

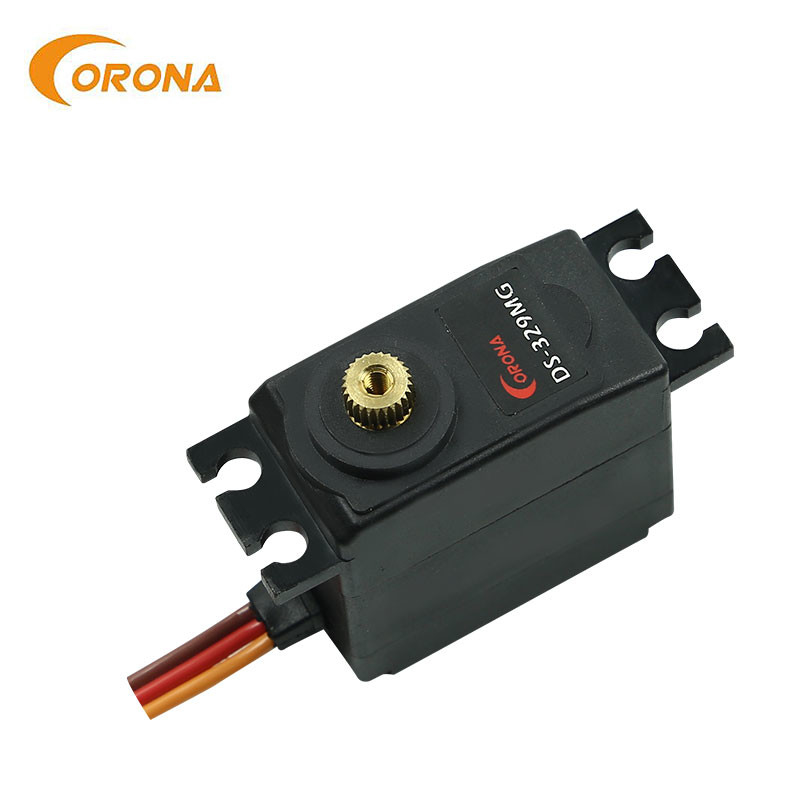

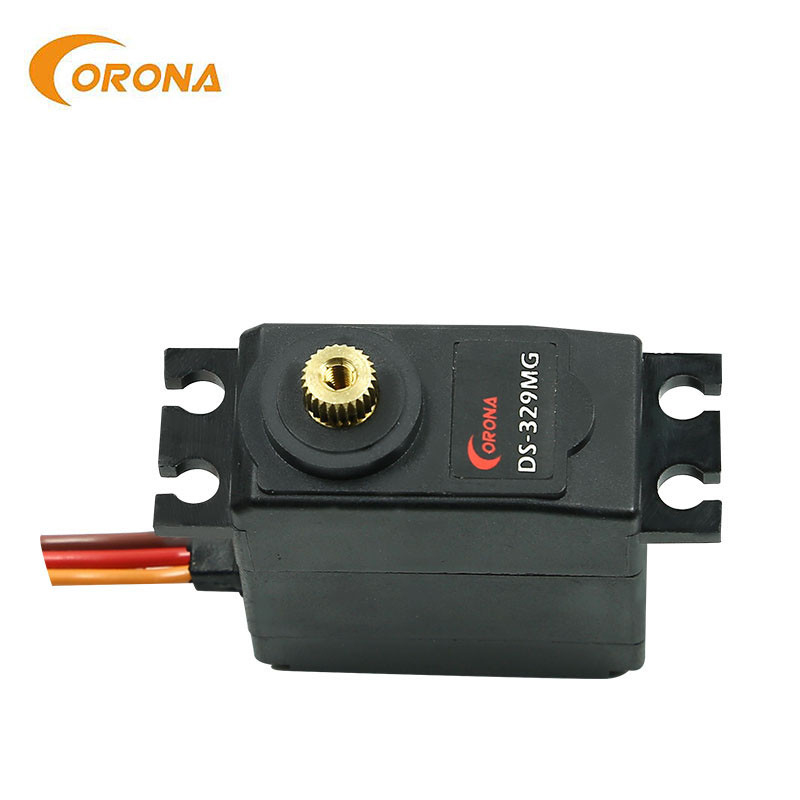

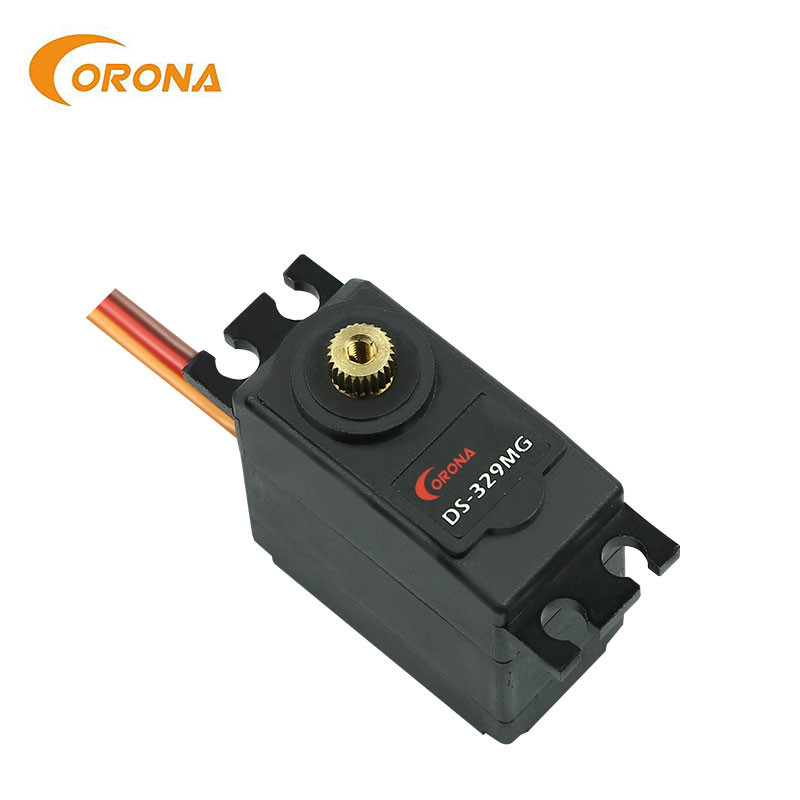

32g Metal Gear Servo Motor Rc Helicopter Robot Servo Corona DS329MG

Basic Information
Place of Origin: Wuxi, China
Brand Name: corona
Certification: CE ROHS ISO9001
Model Number: DS329MG
Minimum Order Quantity: 2pcs
Price: USD9.0-6.4
Packaging Details: box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000PCS PER DAY
Detail Information
High Light:

32g metal gear servo

,

metal gear servo motor rc

,

Corona DS329MG


Product Description

Corona DS329MG medium digital metal gear rc helicopter robot servo

Essential details
Type:
medium servo
Place of Origin:
Jiangsu, China
Brand Name:
Corona
Model Number:
DS329MG
Size:
32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight:
32g
Operating Voltage:
4.8V / 6.0V
Operating Current:
300mA / 400mA
Stall torque:
3.8kg.cm / 4.5kg.cm
Dead band:
≤3uSec
Potentiometer:
5 slider/Indirect Drive
Ball bearing:
MR106
Gear:
Metal
Connector wire length:
300mm
Power:
Battery
Material:
Plastic
Plastic Type:
ABS
Scale:
1:10
Radio Control Style:
RC Hobby
Supply Ability
Supply Ability
3000 Piece/Pieces per Day
Packaging & delivery
Packaging Details
one pieces per color box packing
Port
Shanghai
Lead time:
Quantity(pieces) 1 - 100 101 - 500 501 - 1000 >1000
Lead time (days) 3 7 10 To be negotiated


Corona DS329MG medium digital metal gear  rc helicopter  robot  servo

Product Description

Corona DS329MG medium digital metal gear  rc helicopter  robot  servo

Item No DS329MG
Size 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight 32g
Operating Voltage 4.8V / 6.0V
Operating Current 300mA / 400mA
Operateing speed 0.11sec.60º/ 0.12sec.60º
Stall torque 3.8kg.cm / 4.5kg.cm
Dead band ≤3uSec
Operating speed 40º/one side pulse traveling 400us
Potentiometer 5 slider/Indirect Drive
Ball bearing MR106
Gear Metal
Connector wire length 300mm
Operating Temperature Range -20 ℃ to +60℃
These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
32g Metal Gear Servo Motor Rc Helicopter Robot Servo Corona DS329MG 2

Servo Applications:
1. Electric lock (anti-heft door lock servo)

2. Smart lamp Switch Servo

3. Washing machine safety mechanism servo

4. Water/gas valve control Servo
5. Luggage case lock servo

6. Camera gimbal control servo
7. UAV heavy duty servo

7. Servo Release Servo Drop

9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo

11. Smart bike gear change servo
12. Electric car mirror servo

13. Car seat adjustment servo
14. Robot arm servo

15. Medical equipment servo

16. Curtain Servo

17. Robot servo

18. Wheel servo

19. Car window winding servo
