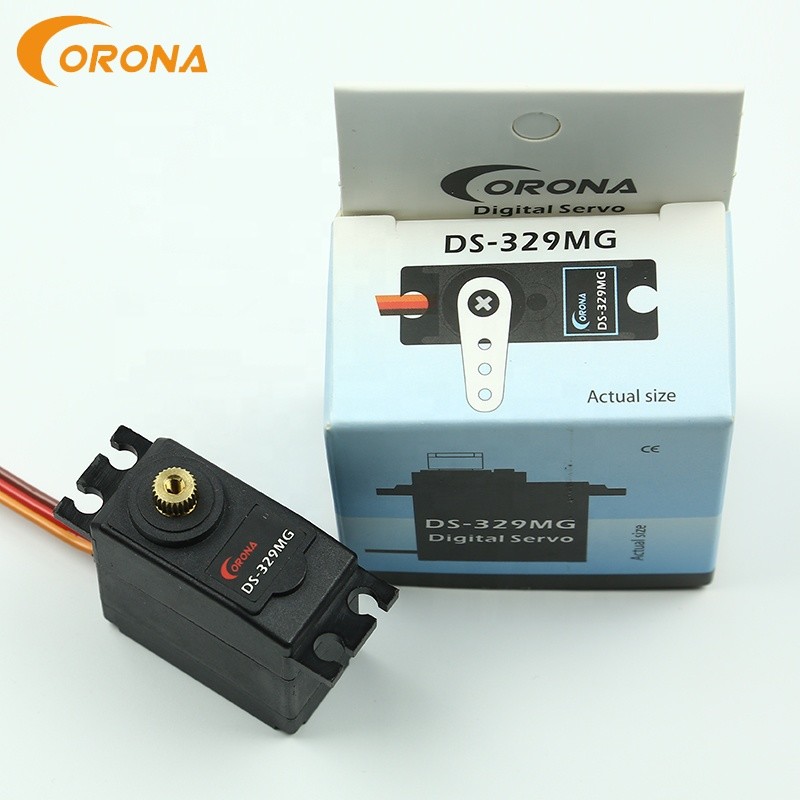

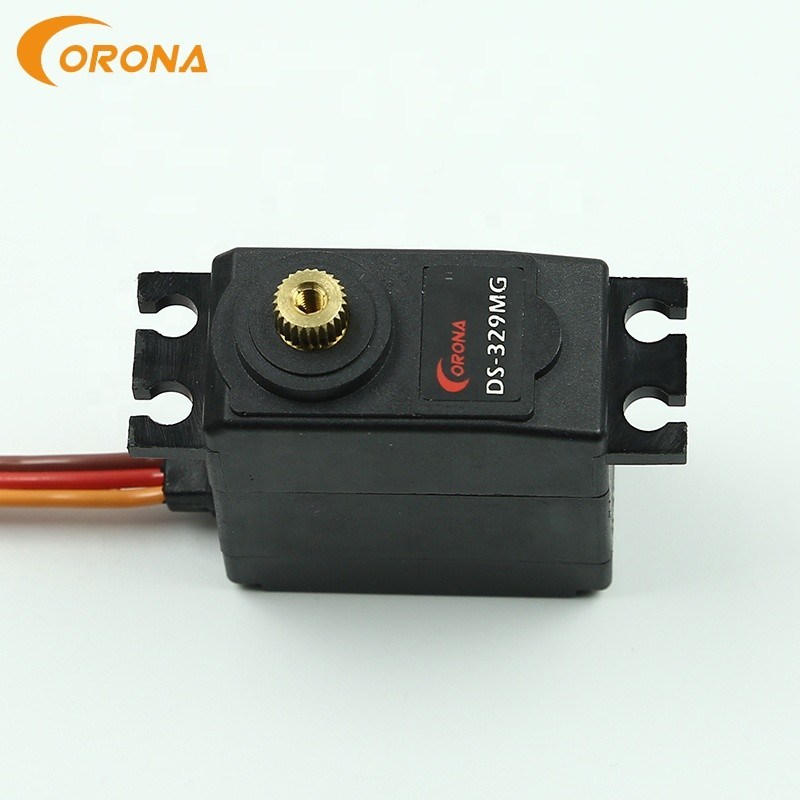

4.8V Medium Servo Motor Suppliers Corona DS329MG

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Corona
Certification: ISO9001 CE ROHS
Model Number: DS329MG
Minimum Order Quantity: 2pieces
Price: $9.15/pieces 1-10 pieces
Packaging Details: box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000 Piece/Pieces per Day
Detail Information
Type: Medium Servo Size: 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight: 32g Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA Stall Torque: /
Dead Band: ≤3uSec Potentiometer: 5 Slider/Indirect Drive
Ball Bearing: MR106 Gear: Metal
Connector Wire Length: 300mm Power: Battery
Material: Plastic Plastic Type: ABS
Scale: 1:10 Radio Control Style: RC Hobby
Port: Shanghai
High Light:

4.8V Medium Servo Motor


Medium Servo Motor Suppliers


Corona DS329MG

Product Description

Corona DS329MG medium digital metal gear rc helicopter robot servo

The very simplest servomotors use position-only sensing via a potentiometer and bang-bang control of their motor; the motor always rotates at full speed (or is stopped). This type of servomotor is not widely used in industrial motion control, but it forms the basis of the simple and cheap servos used for radio-controlled models.

 4.8V Medium Servo Motor Suppliers Corona DS329MG 0

Item No DS329MG
Size 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight 32g
Operating Voltage 4.8V / 6.0V
Operating Current  300mA / 400mA
    Operateing speed  0.11sec.60º/ 0.12sec.60º
    Stall torque /
    Dead band  ≤3uSec
    Operating speed  40º/one side pulse traveling 400us
Potentiometer 5 slider/Indirect Drive
   Ball bearing  MR106
Gear  Metal
    Connector wire length 300mm
Operating Temperature Range -20 ℃ to +60℃

    These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
4.8V Medium Servo Motor Suppliers Corona DS329MG 1

Servo Applications:
1. Electric lock (anti-heft door lock servo)

2. Smart lamp Switch Servo

3. Smart toilet servo

4. Water/gas valve control Servo
5. Luggage case lock servo

6. Camera gimbal control servo
7. UAV heavy duty servo

7. Servo Release Servo Drop

9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo

11. Smart bike gear change servo
12. Electric car mirror servo

13. Car seat adjustment servo
14. Robot arm servo

15. Medical equipment servo

16. Curtain Servo

17. Robot servo

18. Wheel servo

19. Car window winding servo

4.8V Medium Servo Motor Suppliers Corona DS329MG 2
