| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Certification: | CE ROHS |
| Model Number: | R6FA |
| Minimum Order Quantity: | 2pcs |
| Price: | $15.87/pieces -$21.11/ pieces |
| Packaging Details: | one pieces per color box packing |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union,Paypal . Alibaba Trade Assurance |
| Supply Ability: | 10000 pcs/per Month |
| Use: | Universal | Compatibility: | 3PKS,3PM,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14 |
|---|---|---|---|
| Compatibility1: | T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG | Operating Current: | 50mA Max |
| Operating Voltage: | 3.6V ~10V | Sensitivity: | About -100dBm |
| Weight: | 8g | ||
| High Light: | futaba mini receiver,mini Futaba 2.4 Ghz Fasst Receiver,Corona R6FA |
||

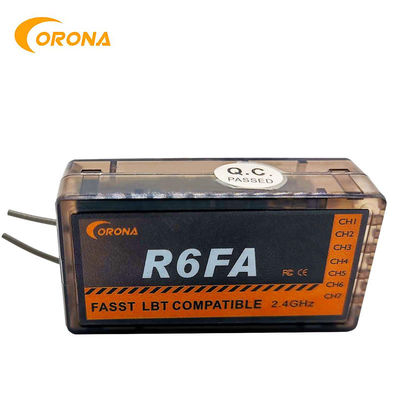

Corona R6FA rc helicopter transmitter receiver futaba fasst compatible 3PKS,3PM,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14
CORONA R6FA is a best choice for compatible with futaba transmitter. The Max operating current is 50mA.
Speed mode setting(only available on FASST air system):
Turn off the transmitter, connect the battery to the receiver, you will see the Red LED light flashing. The RED LED flash high speed to indicate receiver is in (HS) high speed PPM mode OR Low speed indicate receiver is under (LS) low speed PPM mode, press the F/S button for 5-6 seconds while the Green LED is off (Rx in signal searching status), then release the button. You will see the Green LED will flash for about 4 - 5 seconds.
| Compatibility | 3PM,3PKS,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG |
| Operating Current | 50mA max |
| Operating Voltage | 3.6V ~10V |
| Latency | 7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode 8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode 14ms @ FASST surface system C1 CODE mode(without high speed mode) |
| Sensitivity | about -100dBm |
| Weight | 8g |
Compatibility:
CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver is designed to use with FUTABA FASST 2.4GHz transmitters, such as 3PM,3PKS,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG,14SG,18MZ
Specifications:
Operating Current: 50mA max
Operating Voltage: 3.6 ~8.4V
Latency: 7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode
8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode
14ms @ FASST surface system C1 CODE mode(without high speed mode)
Sensitivity: about -100dBm
Setup:
Bind procedure:
· Turn on the FASST transmitter
· Connect the battery to the receiver while pressing receiver’s F/S button.
· The Dual-color LED’s continuous will cycle through the following:
o Red LED light (searching radio signal)
o Green LED light (acquired the radio signal)
o Red LED off (bind ok)
o Green LED flashes 10 times (ID store in memory)
o Green LED lights solid (normally operation)
Note:FASST surface system take a bit more time to complete the bind procedure.
Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.
Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.
1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?
For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?
For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?
Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?
EXW,FOB,CFR,CIF,DDU.
6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
