Micro Futaba 2.4 Ghz Fasst Receiver Compatible For 3GR 4PKS TM7 TM8 Corona R4FA-SB

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Corona
Certification: CE ROHS
Model Number: R4FA-SB
Minimum Order Quantity: 2pcs
Price: $15.87/pieces -$20/ pieces
Packaging Details: one pieces per color box packing
Delivery Time: 7 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 10000 pcs/per Month
Detail Information
Use: R4FASB Compatibility: 3PM,3PKS,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14
Compatibility1: T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG Operating Current: 50mA Max
Operating Voltage: 3.6V ~10V Sensitivity: About -100dBm
Weight: 7g
High Light:

micro fasst receiver

,

micro Futaba 2.4 Ghz Fasst Receiver

,

Corona R4FA-SB


Product Description

Corona R4FA-SB 2.4ghz futaba fasst receiver compatible for 3GR,4PK(S),TM7, TM8



R4FA-SB receiver compatible with Futaba 3PKS , TM10,TM14, etc . If you are not sure if your transmitter can be compatible with our receiver pls contact us before your order .



The MAX voltage is 10v when you used this receiver .



We highly recommend you set failsafe feature before flying your models. An example of a minimal useful, failsafe setting would be to shut down the model’s throttle, so that it does not fly or drive away uncontrolled.



Product Description





Latency 14mS for independent 4 channel output and S.BUS output @ FASST multi-channel mode
21mS for Continuous PPM output and RSSI output@ FASST multi-channel mode
16mS for independent 4 channel output and S.BUS output @ FASST 7ch mode
24mS for Continuous PPM output and RSSI output@ FASST 7ch mode
14mS for independent 3 channel output@ FASST surface system C1 CODE mode
Compatibility

3GR,4PK(S),TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG



Weight

7g



Operating Current

50mA max



Sensitivity

about -100dBm



Operating Voltage

3.6V ~10V







Compatibility:



The CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver is designed for use with FUTABA’s FASST 2.4GHz transmitters; including the 3PM,3PKS,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14 and the T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG. The R4FA-SB and R6FA-SB receivers supply a more useful mode for users. Both the R4FA-SB and R6FA-SB support FUTABA’s FASST air system and surface system. The R4FA-SB supports 7-channel with continuous PPM (positive and negative) output ,RSSI output and S.BUS output, R6FA-SB supports 6 channel high speed PPM(HS) mode to optimize helicopter response control and S.BUS output.



Under S.BUS output mode, both R4FA-SB and R6FA-SB supply 12 proportional channels and 2 DG channels. Therefore, the R4FA-SB or R6FA-SB becomes 14-channel receivers when using S.BUS output.



Specifications:



Operating Current: 50mA max

Operating Voltage: 3.6 ~10V

Latency: R4FA-SB’s description

14mS for independent 4 channel output and S.BUS output @ FASST multi-channel mode

21mS for Continuous PPM output and RSSI output@ FASST multi-channel mode

16mS for independent 4 channel output and S.BUS output @ FASST 7ch mode

24mS for Continuous PPM output and RSSI output@ FASST 7ch mode

14mS for independent 3 channel output@ FASST surface system C1 CODE mode

R6FA-SB’s description

7mS for independent 6 channel (HS) output@ FASST multi-channel mode

14mS for independent 7 channel (LS) output and S.BUS output @ FASST multi-channel mode

8ms for independent 6 channel (HS) output@ FASST 7ch mode

16mS for independent 7 channel (LS) output and S.BUS output @ FASST 7ch mode

14ms for independent 3 channel output@ FASST surface system C1 CODE mode



Sensitivity: about -100dBm



Operation temperature: -10~80 deg C





Setup:



Bind procedure:

· Turn on the FASST transmitter

· Connect the battery to the receiver while pressing the receiver’s F/S button.

· The Dual-color LED’s will continuously cycle through the following:

o Red LED light (searching radio signal)

o Green LED light (acquired the radio signal)

o Red LED off (bind ok)

o Green LED flashes 10 times (ID stored in memory)

o Green LED lights solid (normal operation)

       Note: FASST surface systems take a bit more time to complete the bind procedure.

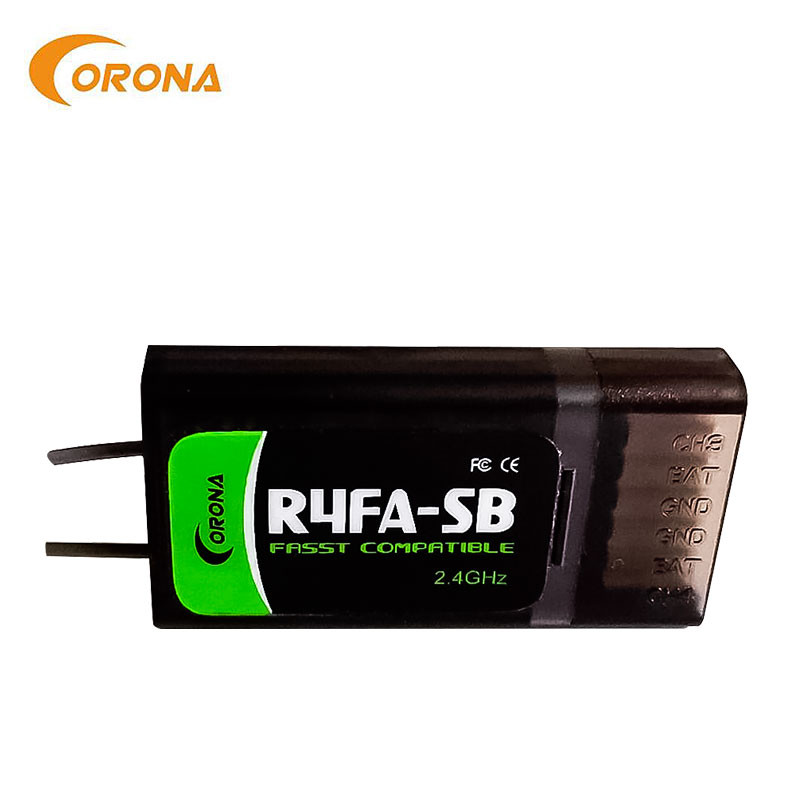

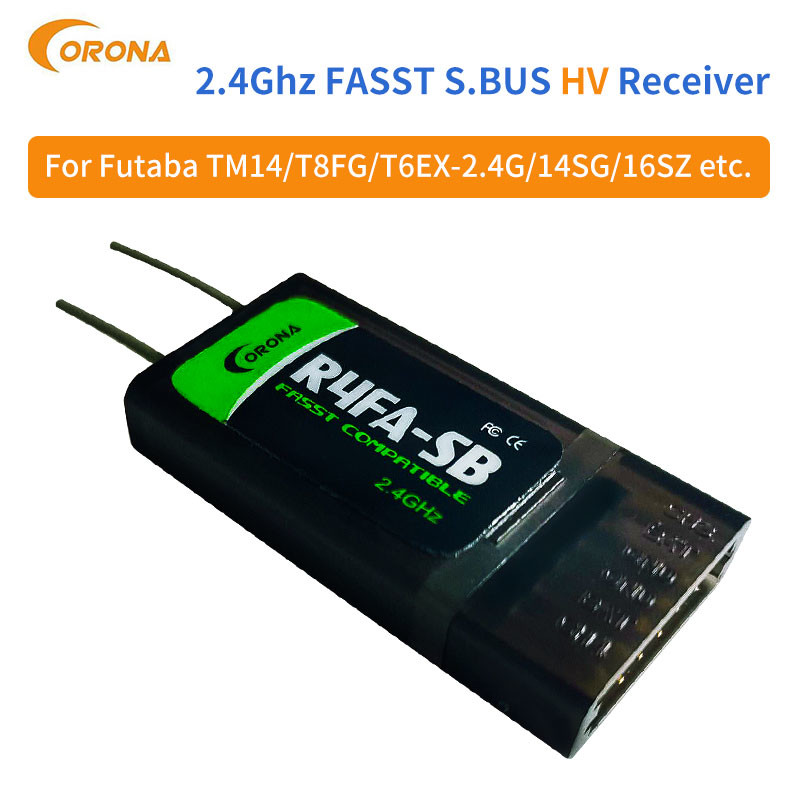

Micro Futaba 2.4 Ghz Fasst Receiver Compatible For 3GR 4PKS TM7 TM8 Corona R4FA-SB 0Micro Futaba 2.4 Ghz Fasst Receiver Compatible For 3GR 4PKS TM7 TM8 Corona R4FA-SB 1

Company Information



Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.


Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.

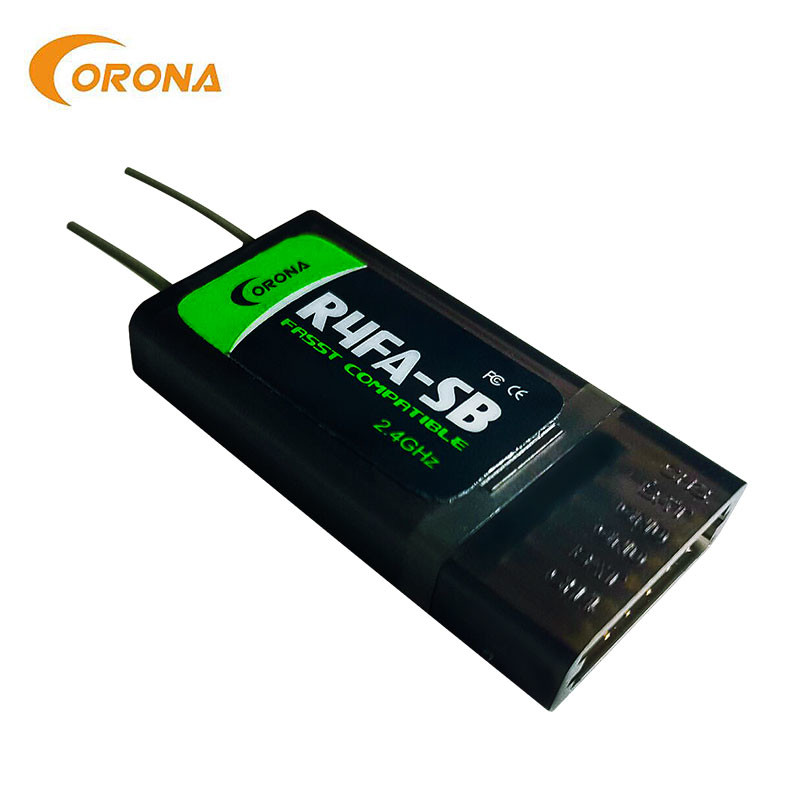

Micro Futaba 2.4 Ghz Fasst Receiver Compatible For 3GR 4PKS TM7 TM8 Corona R4FA-SB 2

Micro Futaba 2.4 Ghz Fasst Receiver Compatible For 3GR 4PKS TM7 TM8 Corona R4FA-SB 3

FAQ

1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?

For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?

For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?

Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?

EXW,FOB,CFR,CIF,DDU.
6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
