Futaba Fasst Micro Receiver 8ch Rc Truck Racing Boat Airplane TM7 TM8 Corona R8FA

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Corona
Certification: CE ROHS
Model Number: R8FA
Minimum Order Quantity: 2pcs
Price: $16.66/pieces -$22.22 pieces
Packaging Details: one pieces per color box packing
Delivery Time: 7 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 10000 pcs/per Month
Detail Information
Use: Universal Compatibility: TM7, TM8, TM10, TM14 Or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG
Operating Current1: 70mA @ FASST 7ch Mode Normal And 110 MA Max Operating Current: 80mA @ FASST Multi-channel Mode Normal And 110 MA Max
Operating Voltage: 4.0 ~10V Sensitivity: About -96dBm
Weight: 16.8g
High Light:

futaba receiver 8ch

,

Futaba Fasst Micro Receiver

,

Corona R8FA


Product Description

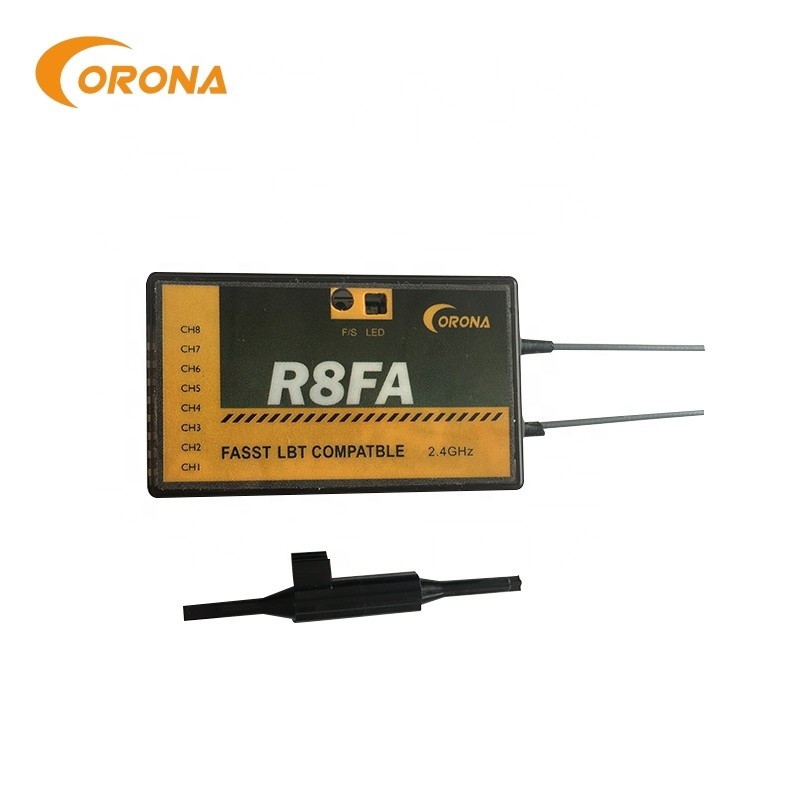

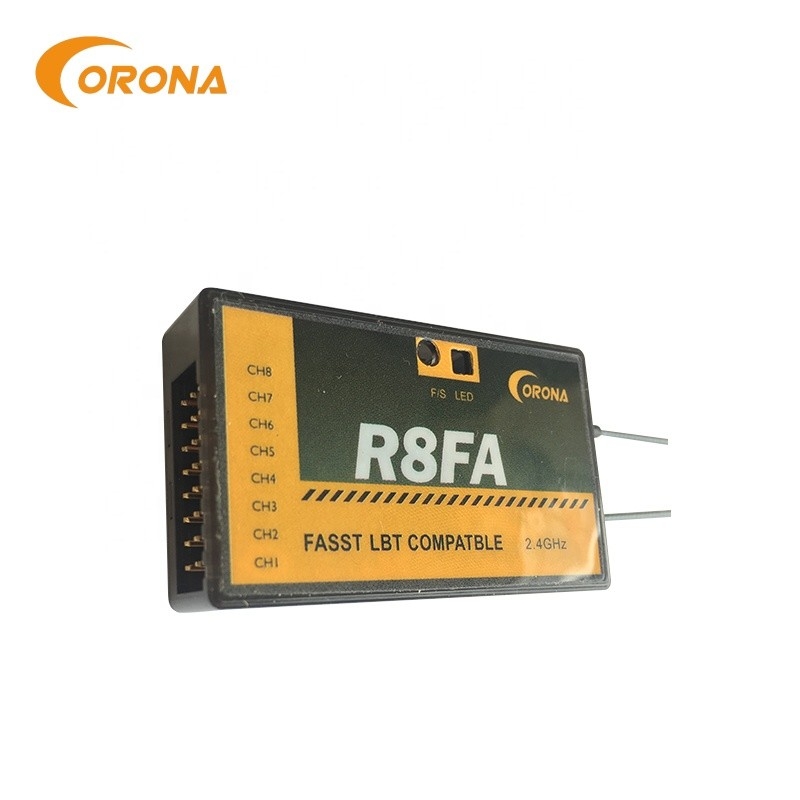

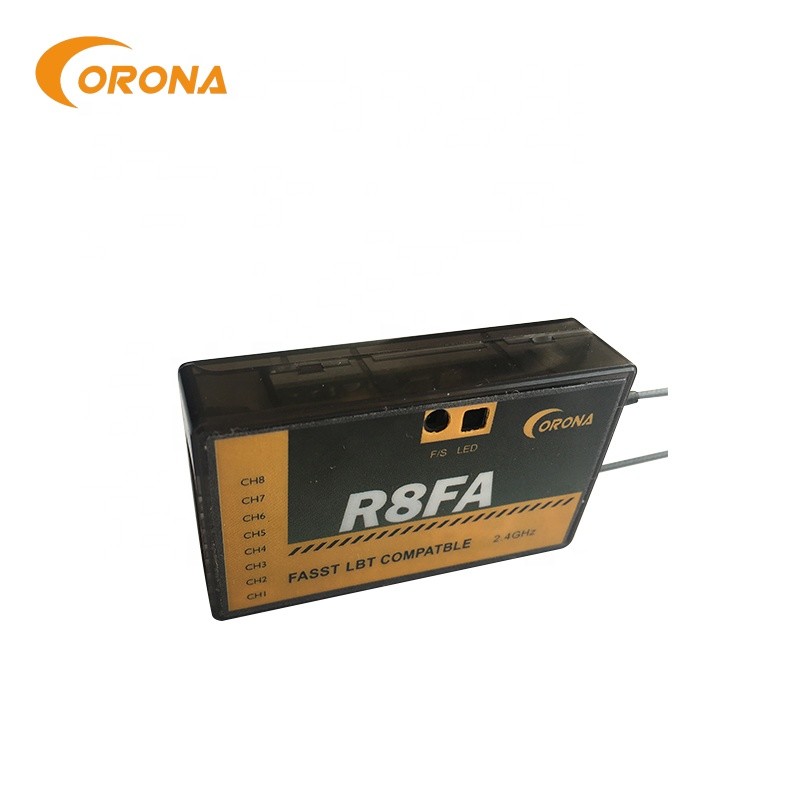

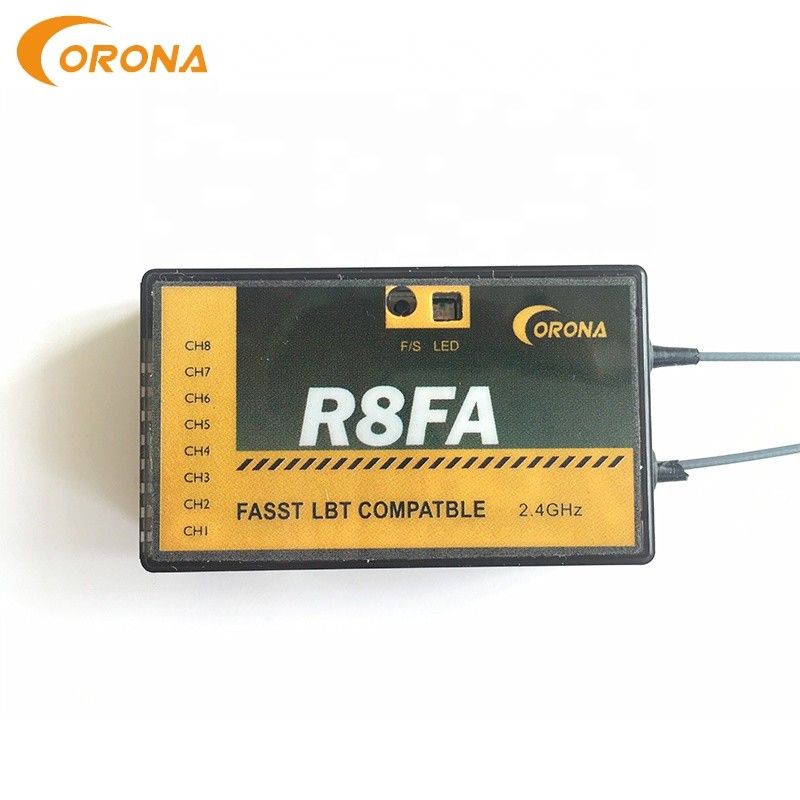

Corona R8FA 2.4g futaba fasst receiver for rc truck / rc racing boat / rc airplane TM7, TM8



CORONA R8FA can compatible futaba FASST transmitter . It has 8 channels .



If you have futaba transmitter such as 4pks , TM8, 10CG,12FG then you can choose this receiver .



If you are not clear if your transmitter can used our receiver , pls feel free to contact us .

Product Description
Compatibility TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG
Operating Current 70mA @ FASST 7ch mode normal and 110 mA max,
80mA @ FASST multi-channel mode normal and 110 mA max
Operating Voltage 4.0 ~10V
Latency 7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel ode(HS mode only available on the R8FA)
8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode(HS mode only available on the R8FA)
Sensitivity about -96dBm
Weight 16.8g





Compatibility:



CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver is designed to use with FUTABA FASST 2.4GHz transmitters, such as TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG,14SG,18MZZ



Setup:



Bind procedure:

· Turn on the FASST transmitter

· Connect the battery to the receiver while pressing receiver’s F/S button.

· The Dual-color LED’s continuous will cycle through the following:

Red LED light (searching radio signal)

Green LED light (acquired the radio signal)

Red LED off (bind ok)

Green LED flashes 10 times (ID store in memory)

Green LED lights solid (normally operation)









Fail-safe setting:



There are two ways to set the Failsafe setting on the CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver;

1. TX-failsafe feature: This method is to set failsafe on the FASST transmitter and has priority (works on channel 3 only under FASST 7ch mode or on multiple-channels under FASST multi-channel mode) while the receiver is working on, just like the FUTABA receivers.

2. RX-failsafe feature: Turn on FASST transmitter and turn on the CORONA 2.4GHz Spread Spectrum Receiver, put all the sticks and switches to where give the control inputs you want if the receiver looses signal and Press the F/S button down for about 5 - 6 seconds while the Green LED light solid (Rx in normal operation), then release the button. You will see the Red LED will flash for about 4 - 5 seconds. (Note: The Red LED will FLASH high speed to indicate the RX-failsafe is turned on OR FLASH low speed to indicate the RX-failsafe is turned off). If you press the F/S button a second time while the Red LED is flashing, the receiver will change its RX-failsafe status (on / off),then the LED will return to Green solid again. If you not press the F/S button .Nothing will be changed and the LED will return to Green solid again. If you want to cancel the RX-failsafe feature (not just turn it off), you can do it by binding the receiver again.

Note: If you do not set a failsafe setting, the receiver will hold all controls at the position of the last command received before signal was lost. When RX-failsafe is turned on, the receiver will initiate the RX-failsafe settings after loosing signal for over 1 second, the receiver will hold the last received positions until the failsafe takes over. When the RX-failsafe and TX-failsafe feature are both turned on, the receiver will use the TX-failsafe command.

We highly recommend you set failsafe feature while flying your models. An example of a useful Failsafe setting would be to shut down the model’s throttle, so that it does not fly or drive away uncontrolled.



Company Information



Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.


Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.

Futaba Fasst Micro Receiver 8ch Rc Truck Racing Boat Airplane TM7 TM8 Corona R8FA 0

Futaba Fasst Micro Receiver 8ch Rc Truck Racing Boat Airplane TM7 TM8 Corona R8FA 1

Packaging & Shipping

 Futaba Fasst Micro Receiver 8ch Rc Truck Racing Boat Airplane TM7 TM8 Corona R8FA 2

FAQ

1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?

For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?

For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?

Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?

EXW,FOB,CFR,CIF,DDU.
6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
