| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Certification: | CE ROHS |
| Model Number: | R4FA |
| Minimum Order Quantity: | 2pcs |
| Price: | $13.49/pieces -$16.66 pieces |
| Packaging Details: | one pieces per color box packing |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union,Paypal . Alibaba Trade Assurance |
| Supply Ability: | 10000 pcs/per Month |
| Name: | R4FA | Compatibility: | 3PM,3PKS,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14 |
|---|---|---|---|
| Compatibility1: | T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG | Operating Current: | 50mA Max |
| Operating Voltage: | 3.6V ~10V | Sensitivity: | About -100dBm |
| Weight: | 7g | ||
| High Light: | 2.4 ghz 4 channel transmitter and receiver,2.4 ghz rc transmitter and receiver,2.4 ghz 4 channel receiver |
||

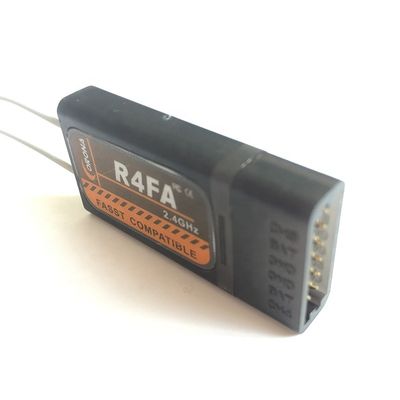

Corona R4FA 2.4g futaba fasst compatible rc remote control truck trailer receiver
CORONA R4FA is a small receiver . It only have 7g for this receiver .
This receiver design for rc hobby. We can also provide OEM & ODM service .
When you used R4FA receiver the Max voltage is 10V .
If you have any questions when used this receiver , pls contact us . We will help you .
Compatibility:
CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver is designed to use with FUTABA FASST 2.4GHz transmitters, such as 3PM,3PKS,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG,14SG,18MZ
| Operating Current | 50mA max |
| Sensitivity |
about -100dBm
|
| Compatibility |
T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG,14SG,18MZ
|
| Latency | 7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode 8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode 14ms @ F |
| Operating Voltage | 3.6V ~10V |
Specifications:
Operating Current: 50mA max
Operating Voltage: 3.6 ~8.4V
Latency: 7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode
8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode
14ms @ FASST surface system C1 CODE mode(without high speed mode)
Sensitivity: about -100dBm
Setup:
Bind procedure:
· Turn on the FASST transmitter
· Connect the battery to the receiver while pressing receiver’s F/S button.
· The Dual-color LED’s continuous will cycle through the following:
o Red LED light (searching radio signal)
o Green LED light (acquired the radio signal)
o Red LED off (bind ok)
o Green LED flashes 10 times (ID store in memory)
o Green LED lights solid (normally operation)
Note:FASST surface system take a bit more time to complete the bind procedure.
