Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Corona |
Certification: | CE ROHS |
Model Number: | GR7FA |
Minimum Order Quantity: | 2pcs |
Price: | $18.25/pieces -$23.33/ pieces |
Packaging Details: | one pieces per color box packing |
Delivery Time: | 7 working days |
Payment Terms: | T/T, Western Union,Paypal . Alibaba Trade Assurance |
Supply Ability: | 10000 pcs/per Month |
Use: | Universal | Compatibility: | TM7, TM8, TM10, TM14 Or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG,14SG,18MZ |
---|---|---|---|
Operating Current: | 70mA Max | Operating Voltage: | 3.6~8.5V |
Latency: | 14mS @ FASST Multi-channel Mode /16mS @ FASST 7ch Mode | Sensitivity: | About -96dBm |
Weight: | 16g | Operation Temperature: | -10~70 DegC |
High Light: | GYRO Futaba 2.4 Ghz Fasst Receiver,futaba gyro receiver,Corona GR7FA |

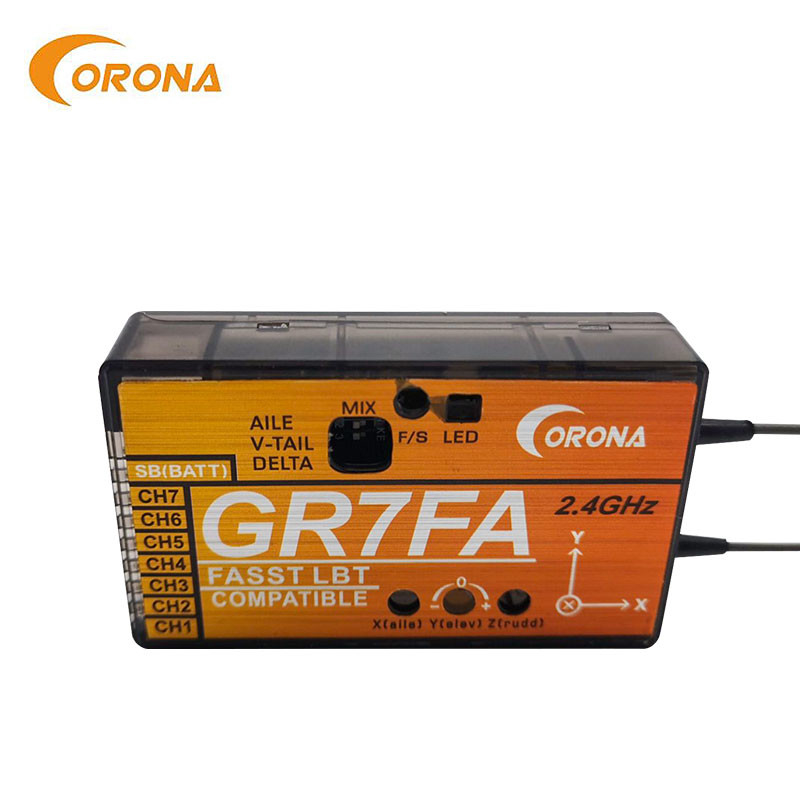

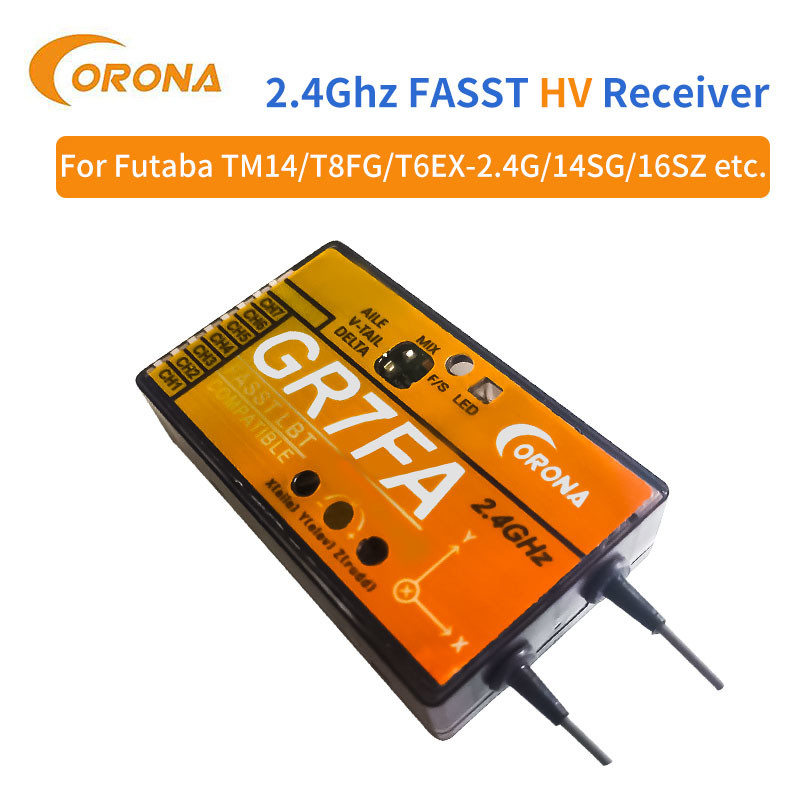

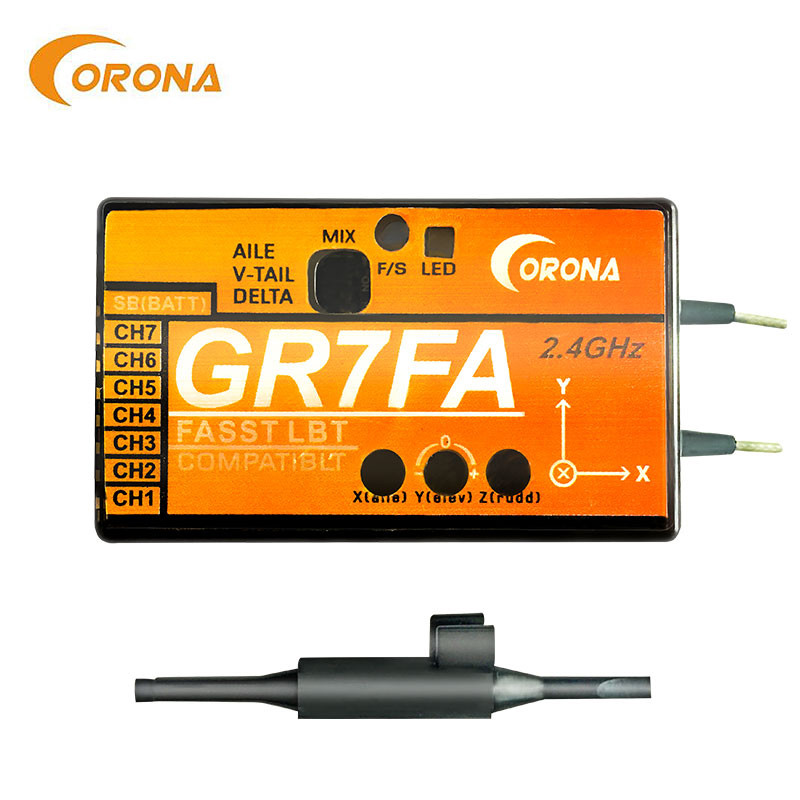

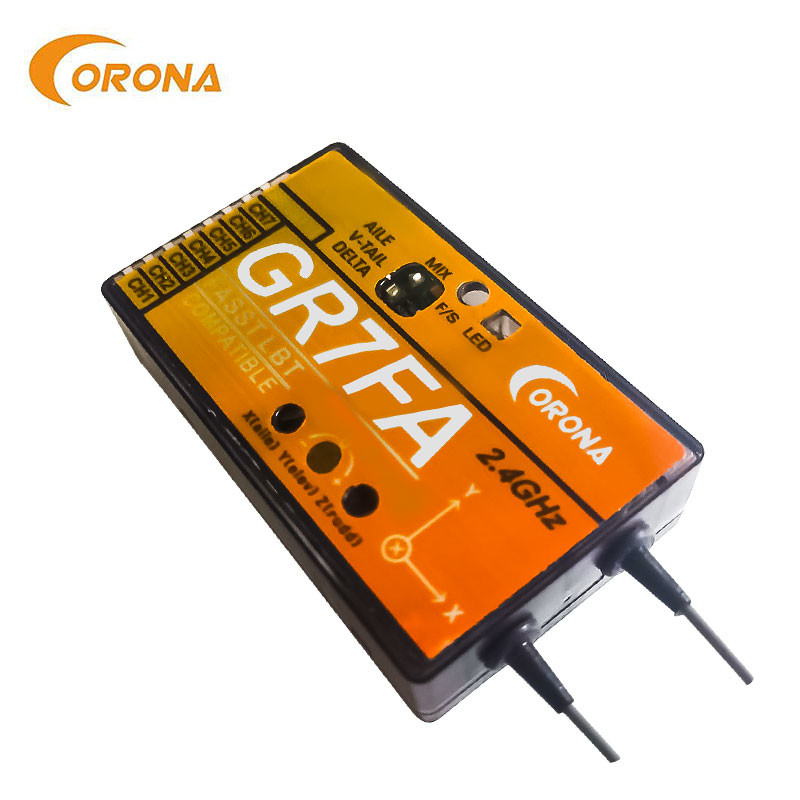

Corona GR7FA GYRO 2.4g futaba fasst compatible rc transmitter and receiver
CORONA GR7FA can compatible futaba T6EX-2.4G ,7C-2.4G , 12FG etc transmitter. We have many dealer sold this receiver.
The Min voltage is 3.6v when you use this receiver .
If you want to use gyro function ,pls use it on CH5 .
Any questions pls feel free to ask us .
Product model | GR7FA |
Compatibility | TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG,14SG,18MZ |
Operating Current | 70mA max |
Operating Voltage | 3.6~8.5V |
Latency | 14mS @ FASST multi-channel mode /16mS @ FASST 7ch mode |
Sensitivity | about -96dBm |
Weight | 16g |
2.4g receiver has been applied by plenty of groups,like hobbyists,students,engineers,ect.We also have many different 2.4g receivers.Please feel free to contact us if you have orders or custom and even OEM/ODM.
Compatibility:
CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver is designed to use with FUTABA
FASST 2.4GHz transmitters, such as TM7, TM8, TM10, TM14 or T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG,14SG,18MZ
Feature:
Mode supply: No mixer, Dual-aileron, V-tail mixer, Delta mixer
Independent simple gyro gain adjustment for Aileron, Elevator and Rudder
S.BUS output support expanding servo channels.
Support gyro function switch on and off in flying by Switching signal of CH5
Specifications:
Voltage Range :3.6~8.5V
Operating Current: 70mA max
Operation temperature: -10~70 degC
Latency: 14mS @ FASST multi-channel mode /16mS @ FASST 7ch mode
Sensitivity: about -96dBm
Weight: 16g
Bind procedure:
Turn on the FASST transmitter
Connect the battery to the receiver while pressing receiver’s F/S button
Installation Guide:
Make sure that your plane has good status before installing GR7FA and other electrical device on it.
The receiver need to be firmly mounted near the gravity of the plane by double side tape, refer to illustration below.
Ensure the axis direction is out of four kind types description below. Fixed GR7FA reference the information mentioned in axis description pictures on receiver’s box.
Turn on FASST transmitter, turn off any mixer feature on the transmitter, firstly set stick trimming and sub-trim parameters to zero .Preset all sensitivity at about 40~60%, Select the proper mode of mixer on GR7FA and power on it, check and adjust aileron, elevator or rudder to the neutral position of control surface. Adjustment can be done by stick trimming on the transmitter. If mode selection and sensitivity changed, please power the GR7FA again to let new feature take effect.
Check all servo controlling that you need under flying is correct. Reverse the servo direction on the transmitter if need. Roll the model along the x, y or z axis alone to check the compensation direction that you want as the picture show.
If compensation direction is reversed, set the sensitivity value reverse. If any sensitivity changed,please power the GR7FA again to let new feature take effect.
