| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Certification: | ISO9001 CE ROHS |
| Model Number: | DS559HV |
| Minimum Order Quantity: | 2pieces |
| Price: | $13.33/pieces 1-10 pieces |
| Packaging Details: | box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 3000 pieces per day |
| Size: | 40x21x41mm(1.57"x0.82"x1.6") | Weight: | 65.5g |
|---|---|---|---|
| Operating Voltage: | 6V / 7.4V | Operating Current: | 300mA / 400mA |
| Stall Torque: | 16kg.cm / 20kg.cm | Dead Band: | ≤3uSec |
| Potentiometer: | 5 Slider/Indirect Drive | Ball Bearing: | MR106 |
| Gear: | Metal | Connector Wire Length: | 300mm |
| Type: | Helicopter | Power: | Battery |
| Material: | Plastic | Plastic Type: | ABS |
| Scale: | 1:10 | Radio Control Style: | RC Hobby |
| High Light: | 20kg servo motor,servo motor repair,Corona DS559HV |
||

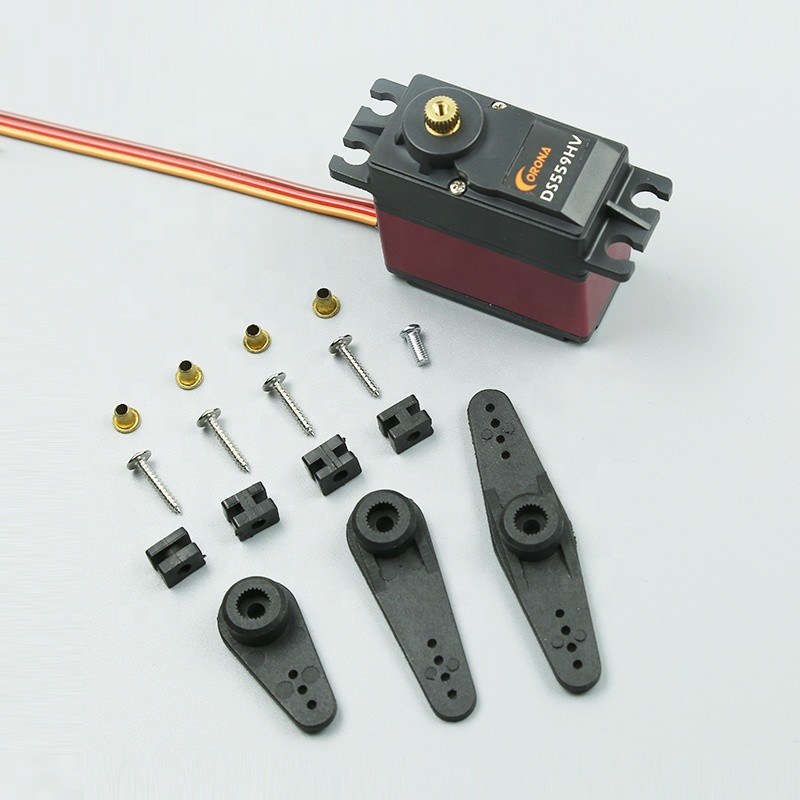

Corona DS559HV 20kg digital metal gear servo for rc model airplane
| Item: | DS559HV |
| Size: | 40x21x41mm(1.57"x0.82"x1.6") |
| Weight: | 65.5 |
| Operating voltage: | 6V / 7.4V |
| Operating current: | 300mA / 400mA |
| Operateing speed: | 0.20sec.60º/ 0.18sec.60º |
| Stall torque: | 16kg.cm / 20kg.cm |
| Dead band: | ≤3uSec |
| Operating speed: | 40º/one side pulse traveling 400us |
| Potentiometer: | 5 slider/Indirect Drive |
| Ball bearing: | MR106 |
| Gear Material: | Metal |
| Connector wire length: | 300mm |
| Temperature: | -20 ℃ to +60℃ |
These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
Servo Applications:
1. Electric lock (anti-heft door lock servo)
2. Smart lamp Switch Servo
3. Water/gas valve control Servo
4. Luggage case lock servo
5. Camera gimbal control servo
6. UAV heavy duty servo
7. Servo Release Servo Drop
8. Safety lock servo
9. Automatic Perfume and liquids Sprayer Servo
10. Smart bike gear change servo
11. Electric car mirror servo
12. Car seat adjustment servo
13. Robot arm servo
14. Medical equipment servo
15. Curtain Servo
16. Robot servo
17. Wheel servo
18. Car window winding servo
Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.
Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.
