| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Certification: | ISO9001 CE ROHS |
| Model Number: | BL6168 |
| Minimum Order Quantity: | 2 pieces |
| Price: | $20.63/pieces 2-100 pieces |
| Packaging Details: | box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 3000 pieces per day |
| Type: | Standard Servo | Size: | 37X21X41.5mm(1.48"x0.8"x1.5") |
|---|---|---|---|
| Weight: | 63.6g | Operating Voltage: | 4.8V / 6.4V |
| Operating Current: | 200mA / 300mA | Stall Torque: | 25kg.cm /32kg.cm |
| Bead Band: | ≤3uSec | Potentiometer: | High Precision Potentiometer |
| Ball Bearing: | High Precision Potentiometer | Gear: | Metal |
| Connector Wire Length: | 300mm | ||
| High Light: | small high torque servo motor,high torque industrial servo motor,Corona BL6168 |
||

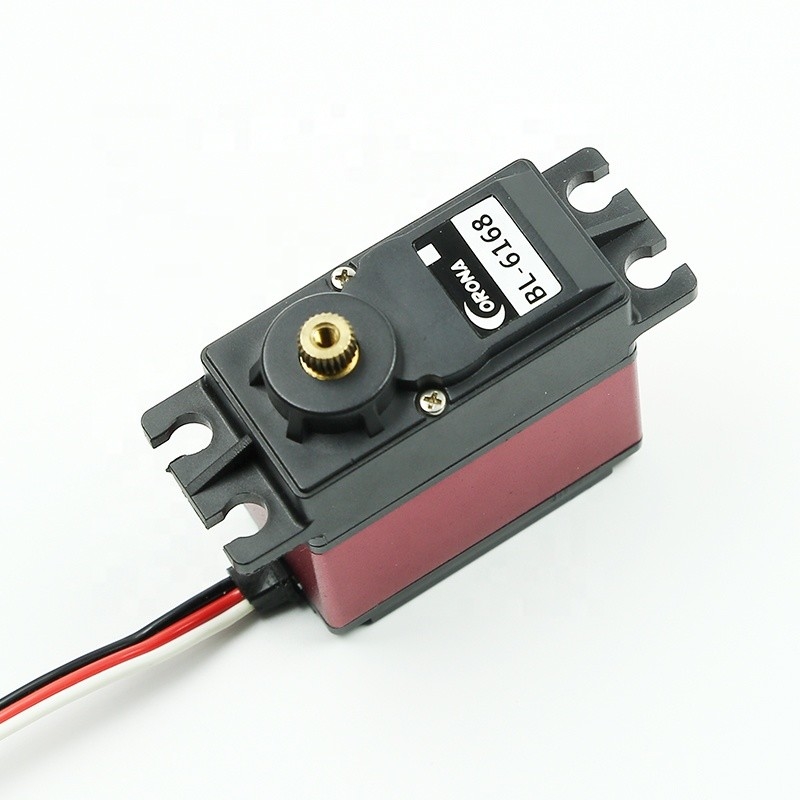

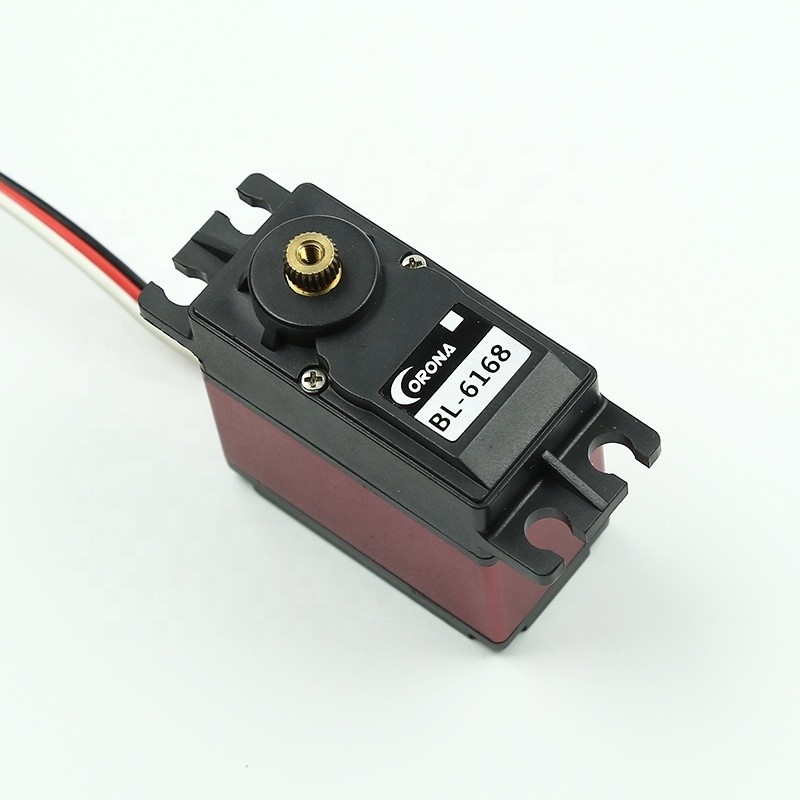

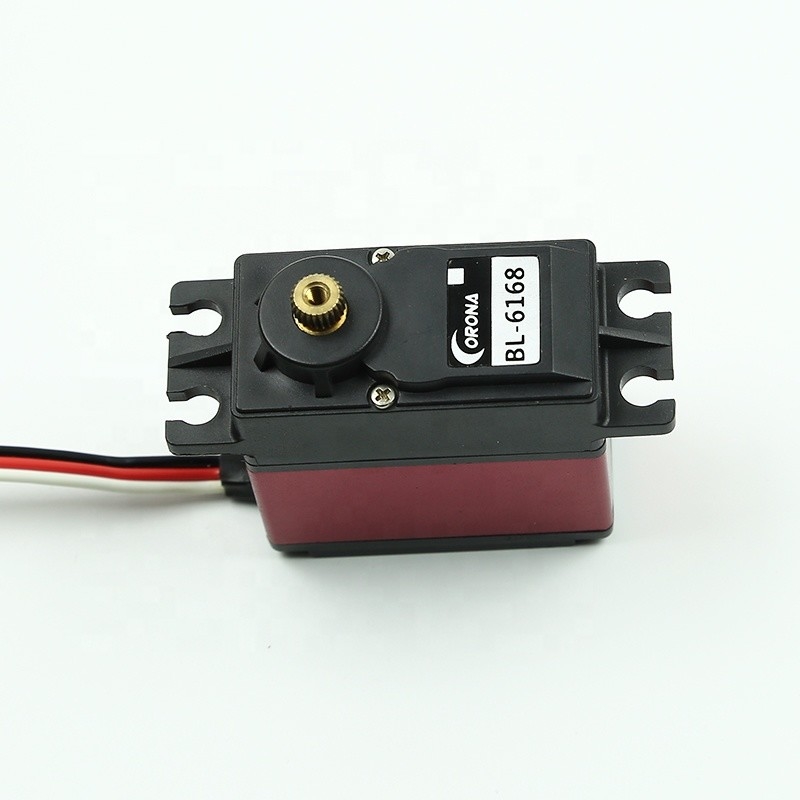

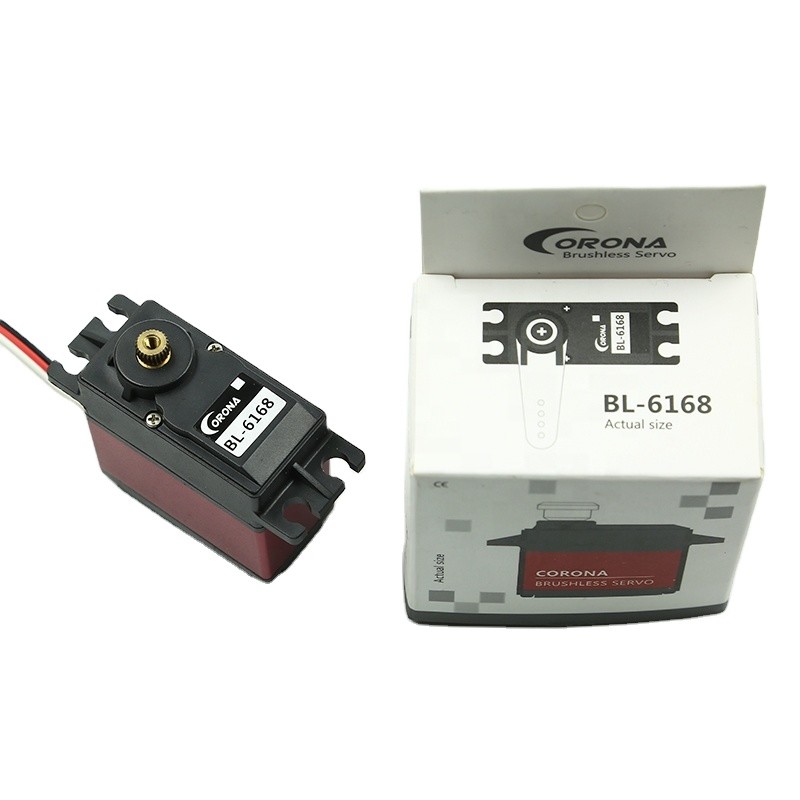

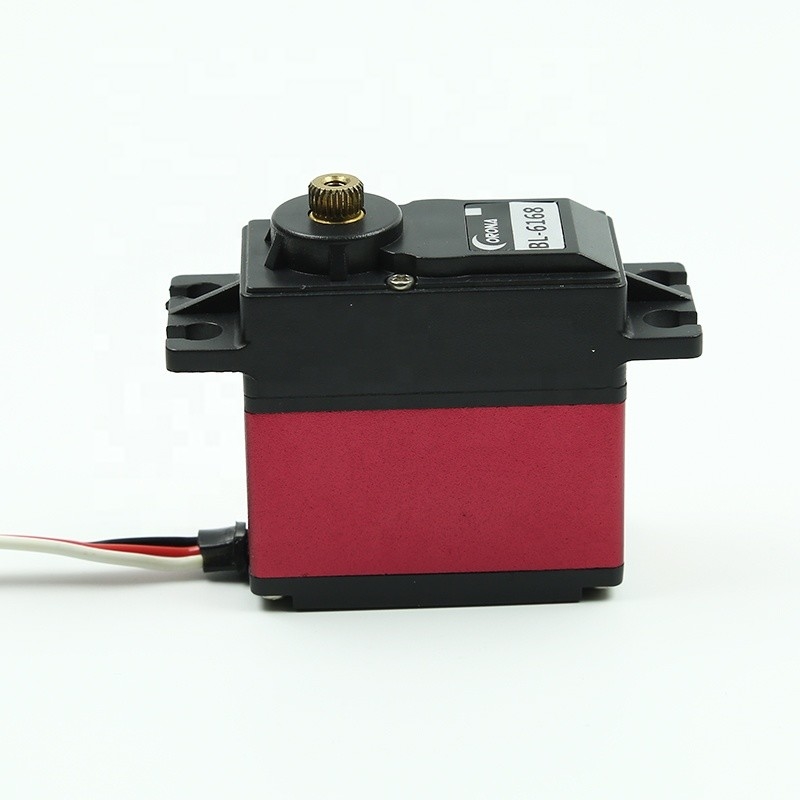

Corona BL6168 63.6g 32kg high torque rc rc standard brushless servo motor
| Item: | BL6168 |
| Size: | 37X21X41.5mm(1.48"x0.8"x1.5") |
| Weight: | 63.6g |
| Voltage | 4.8V / 6.4V |
| Curren: | 200mA / 300mA |
| Operating Speed: | 0.18sec.60º / 0.14sec.60º |
| Stall torque: | 25kg.cm /32kg.cm |
| Bead band: | ≤3uSec |
| Operating trave: | 40º/one side pulse 400us |
| Potentiometer: | High Precision Potentiometer |
| Ball bearing: | MR106 High Precision |
| Gear: | Metal |
| Connector wire: | 300mm |
| Operating Temperature: | -20℃~+70℃ |
These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
Servo Applications:
1. Electric lock (anti-heft door lock servo)
2. Smart lamp Switch Servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Luggage case lock servo
6. Camera gimbal control servo
7. UAV heavy duty servo
7. Servo Release Servo Drop
9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Robot arm servo
15. Medical equipment servo
16. Curtain Servo
17. Robot servo
18. Wheel servo
19. Car window winding servo
Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.
Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.
