Fast Servo Motor Rc Car Helicopters Corona DS538HV

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Corona
Certification: ISO9001 CE ROHS
Model Number: DS538HV
Minimum Order Quantity: 2pieces
Price: $7.13/pieces 1-100 pieces
Packaging Details: box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000 pieces per day
Detail Information
Type: Standard Servo Size: 20x40x38.5mm(0.78"x1.57"x1.51")
Weight: 58g Operating Voltage: 6V/7.4V
Operating Current: 300mA / 400mA Stall Torque: /
Dead Band: ≤3uSec Potentiometer: 5 Slider/indirect Drive
Ball Bearing: MR106 Gear: Metal
Connector Wire Length: 300mm Radio Control Style: RC Hobby
Power: Standard Material: Standard
Plastic Type: Standard Scale: Standard
High Light:

fast servo motor


servo motor rc car


Corona DS538HV

Product Description

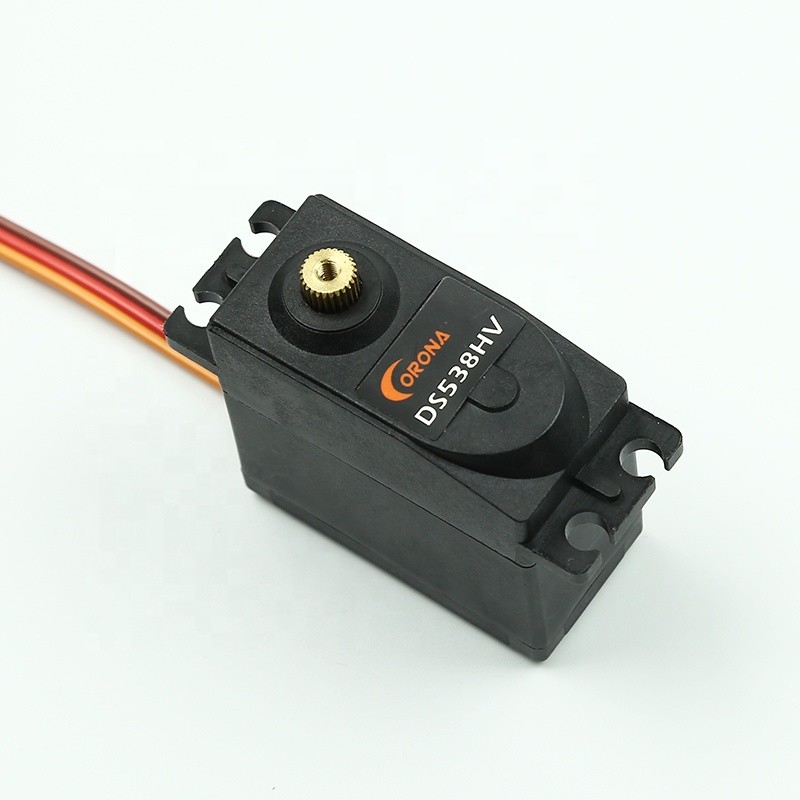

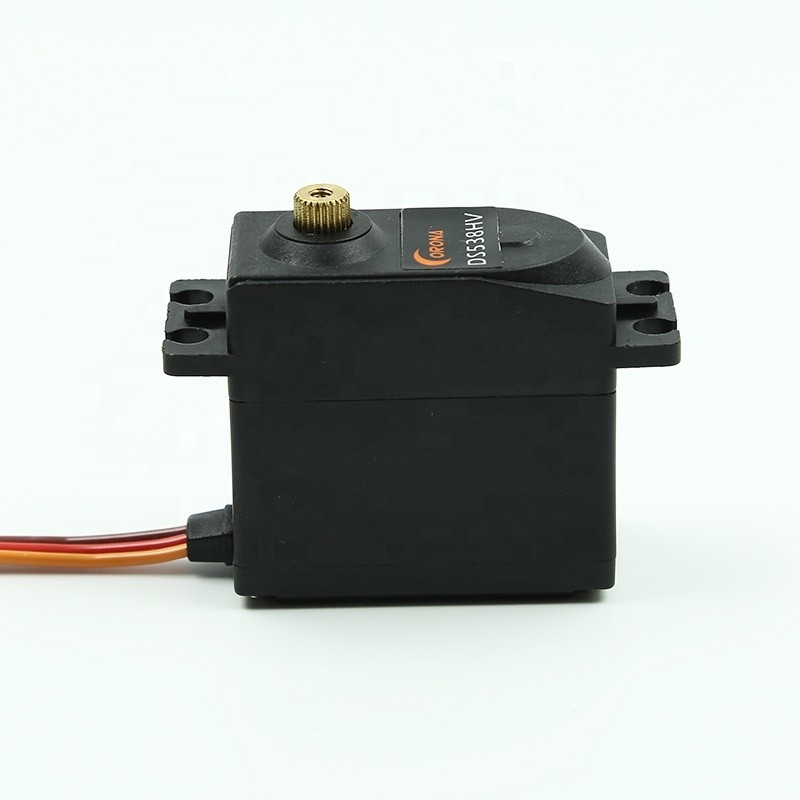

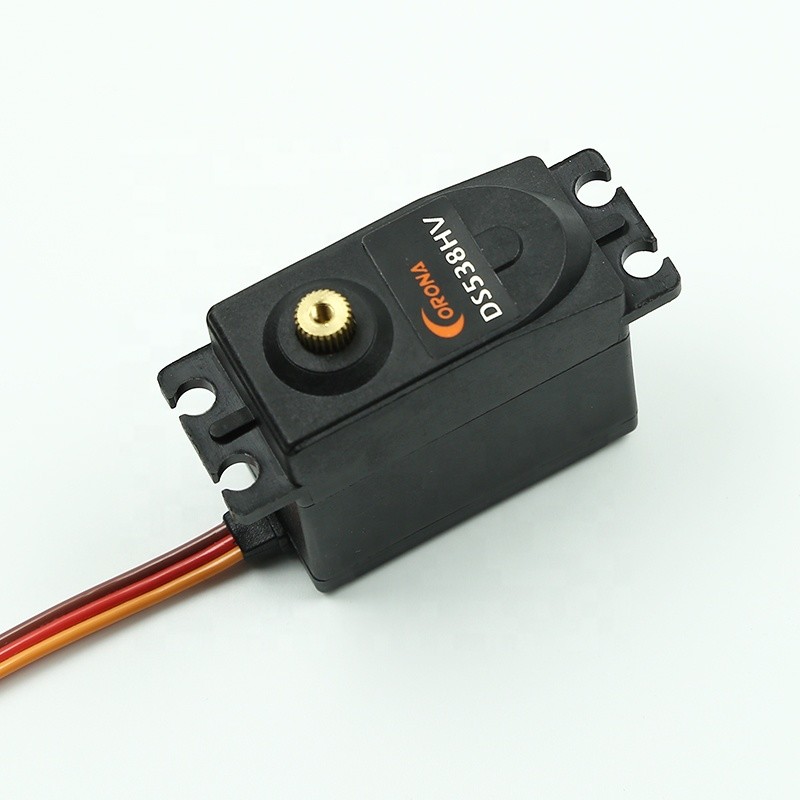

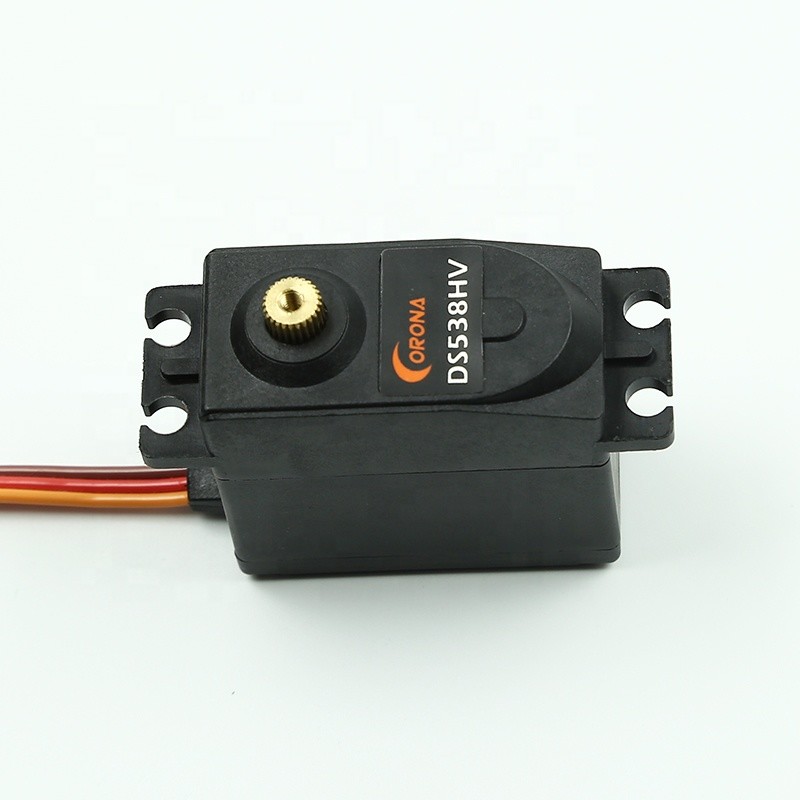

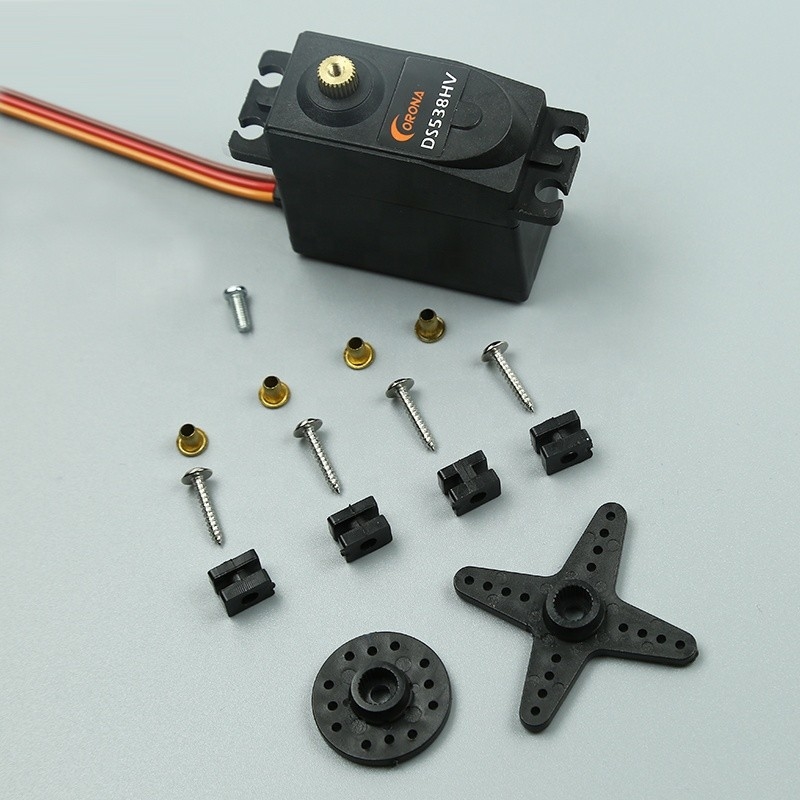

Corona DS538HV standard size metal gear servo for rc helicopters and rc car

DS538HV is a reliable servo with high voltage.
We sold ton of these while available and on sale. Works well in a budget situation. Used this servo as a cheaper (and better) replacement for KS4031-06W servo, used on Kyosho RC Surfer 4. Identical form, fit and function. DS538HV can also be used in industrial use. The torque is acceptable in smart apllication.

Fast Servo Motor Rc Car Helicopters Corona DS538HV 0


Item: DS538HV
Size: 20x40x38.5mm(0.78"x1.57"x1.51")
Weight: 58g
Voltage: 6V/7.4V
Current: 300mA / 400mA
Operating speed: 0.13sec.60º/ 0.12sec.60º
Stall Torque: /
Dead Band: ≤3uSec
Operating Travel: 40º/one side pulse 400us
Potentiometer 5 slider/indirect Drive
   Ball bearing  MR106
Gear  Metal
    Connector wire length 300mm
Operating Temperature Range -20 ℃ to +60℃

These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.

Fast Servo Motor Rc Car Helicopters Corona DS538HV 1

Fast Servo Motor Rc Car Helicopters Corona DS538HV 3

Servo Applications:
1. Electric lock (anti-heft door lock servo)

2. Smart lamp Switch Servo

3. Washing machine safety mechanism servo

4. Water/gas valve control Servo
5. Luggage case lock servo

6. Camera gimbal control servo
7. UAV heavy duty servo

7. Servo Release Servo Drop

9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo

11. Smart bike gear change servo
12. Electric car mirror servo

13. Car seat adjustment servo
14. Robot arm servo

15. Medical equipment servo

16. Curtain Servo

17. Robot servo

18. Wheel servo

19. Car window winding servo

Other Product

Fast Servo Motor Rc Car Helicopters Corona DS538HV 4

Fast Servo Motor Rc Car Helicopters Corona DS538HV 5

Company Information

Fast Servo Motor Rc Car Helicopters Corona DS538HV 6

Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.
Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.

Fast Servo Motor Rc Car Helicopters Corona DS538HV 7

Fast Servo Motor Rc Car Helicopters Corona DS538HV 8

Packaging & Shipping

 Fast Servo Motor Rc Car Helicopters Corona DS538HV 9


1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?

For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?

For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?

Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?

6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
