Rc 2.4 Ghz Receiver For Rc Car Futaba 8 Channel Receiver Corona CT8F Corona Cr8d Receiver Set

Basic Information
Place of Origin: CHINA
Brand Name: CORONA
Certification: CE ROHS
Model Number: CT8F+CR8D
Minimum Order Quantity: 2pcs
Price: $28.9/pcs-$34.9/pcs
Packaging Details: Individual package
Delivery Time: 7 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 10000 pcs/per Month
Detail Information
Futaba: FF9/9Z/3PM/3PK/7U/8U/8J/FN Series HITEC: OPTIC6/ECLIPSE7
WFLY: WFT09/WFT08 Robe: C18/C28
Dimension For CT8F: 58.5*37.5*22mm Operating Voltage: 6V ~13V
Output Power: <100mW Operating Current: 100mA
Compatinle Receivers: CR8D/CR6D/CR4D
High Light:

corona cr8d receiver

,

corona ct8f

,

2.4 ghz rc receiver


Product Description

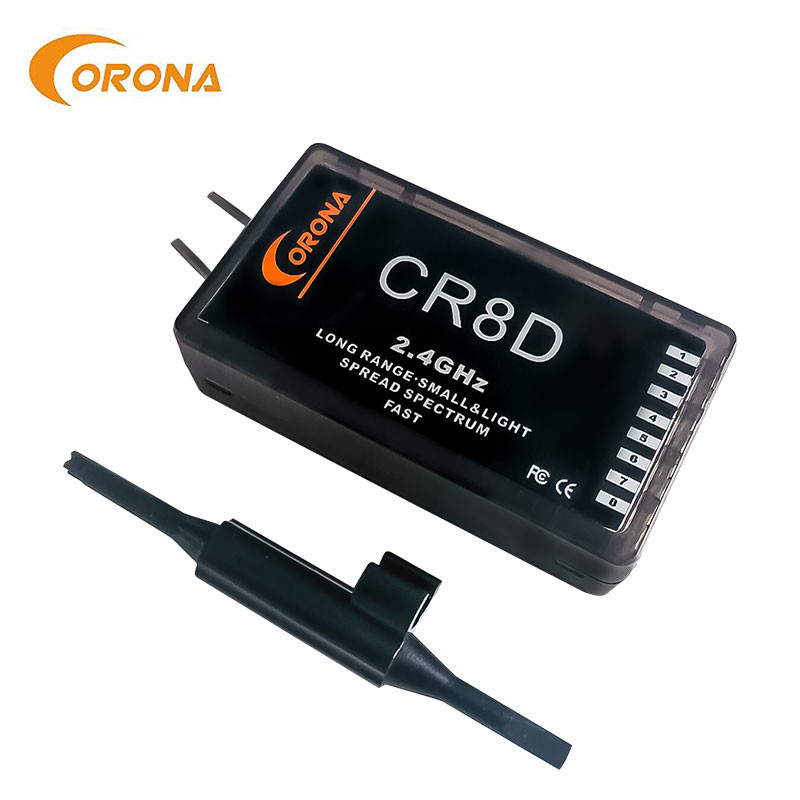

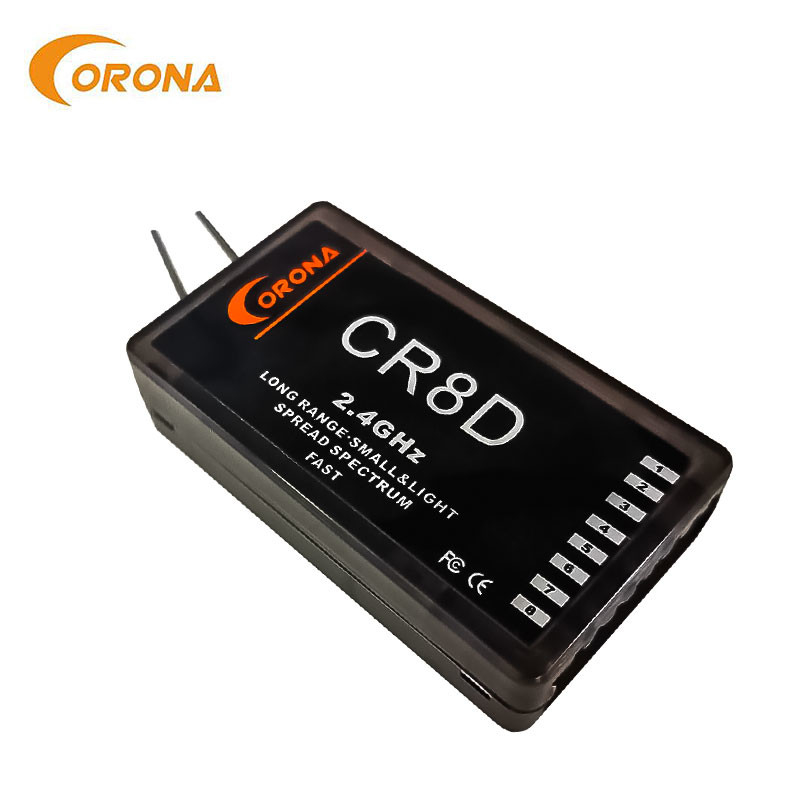

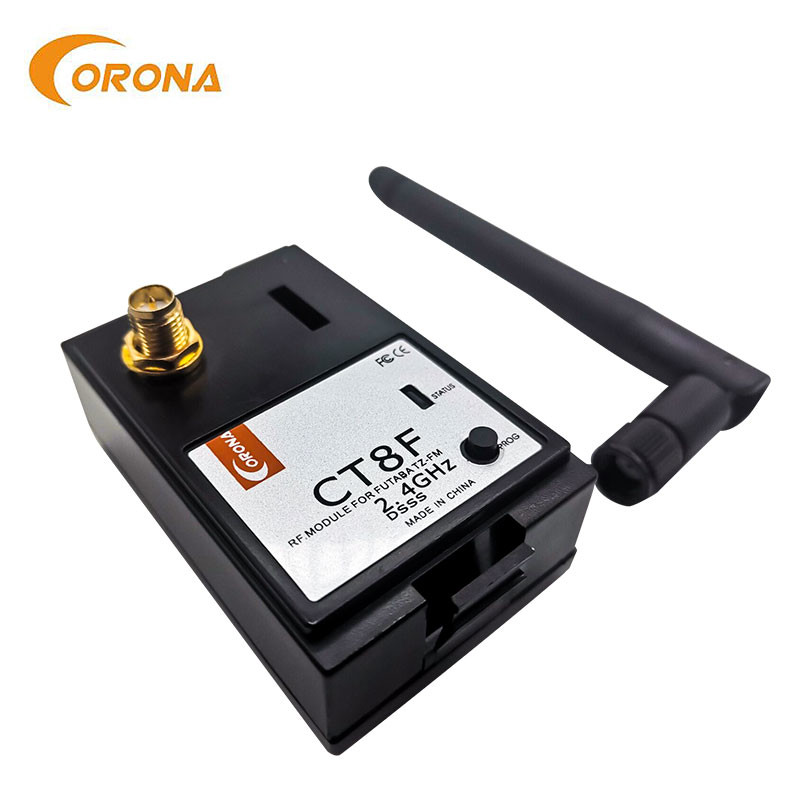

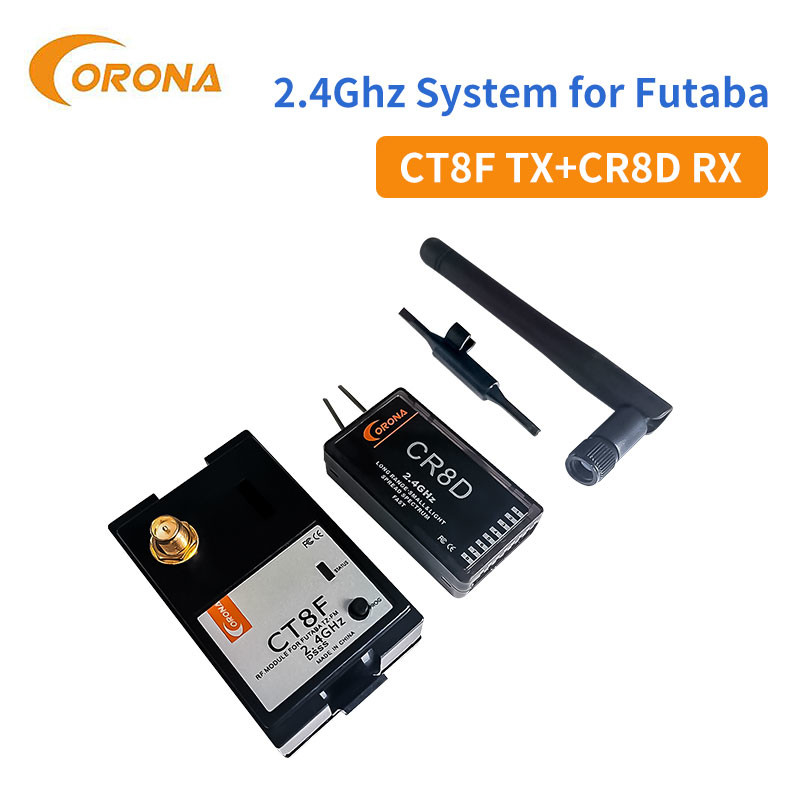

Corona CT8F+CR8D Set 2.4g DSSS rc transmitter and receiver compatible futaba transmitter



Receiver and Transmitter setup Instructions



1. Turn the transmitter on and adjust your transmitter to PPM mode and then turn the transmitter off .



2. Press and hold the programming button on the transmitting modele, turn the transmitter on, then you can release the button.

The Led on the Module will flash between red and yellow indicating the transmitter is ready to bind with the receiver.



3. Press and hold the button on the receiver and power the receiver on . The LED on the receiver will flash two times , indicating the receiver have recognized the transmitter. Turn off the transmitter and reveiver.



4. Power on the receiver without pressing any button , then power up the transmitter also without pressing button,, the LED on the transmitter light yellow . The RF-link will normally connect in 15-20 seconds between transmitter and the receiver. If linked the LED on the receiver will light red without any flash indicating the receiver is operating properly . If the LED flashes sometime or does not light at all . Repeat this step until link is connected properly .



If you have any questions pls do not hesitate to contact us .







 Description :



Futaba FF9/9Z/3PM/3PK/7U/8U/8J/FN series
HITEC OPTIC6/ECLIPSE7
WFLY WFT09/WFT08
Robe C18/C28
Dimension 58.5*37.5*22mm
Operating Voltage 6V ~13V
Output Power <100mW
Operating Current 100mA
Compatinle Receivers CR8D/CR6D/CR4D
