| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Model Number: | CT8Z+CR8D |
| Minimum Order Quantity: | 2pcs |
| Price: | $28.9/pieces -$34.9/ pieces |
| Packaging Details: | one pieces per color box packing |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union,Paypal . Alibaba Trade Assurance |
| Supply Ability: | 10000 pcs/per Month |
| Color: | Black | Material: | Plastic |
|---|---|---|---|
| Function: | Receive Signal | Size: | 38.5*21.8*6.5mm |
| Antenna Gain: | 3dbi | Operating Mode: | PPM |
| Frequency Band: | 2405Mhz~2478.5Mhz | Operating Voltage: | 8V ~13V |
| Output Power: | <100mW | Operating Current: | <100mA |
| Compatinle Receivers: | CR8D/CR6D/CR4D | ||
| High Light: | 2.4 ghz receiver for rc car,spektrum car receiver,corona ct8z |
||

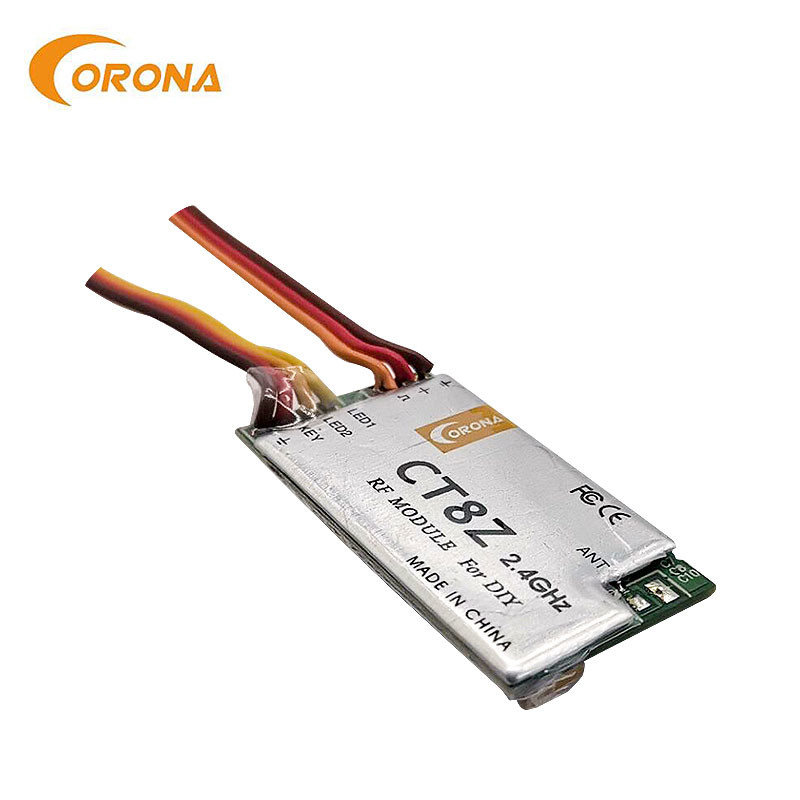

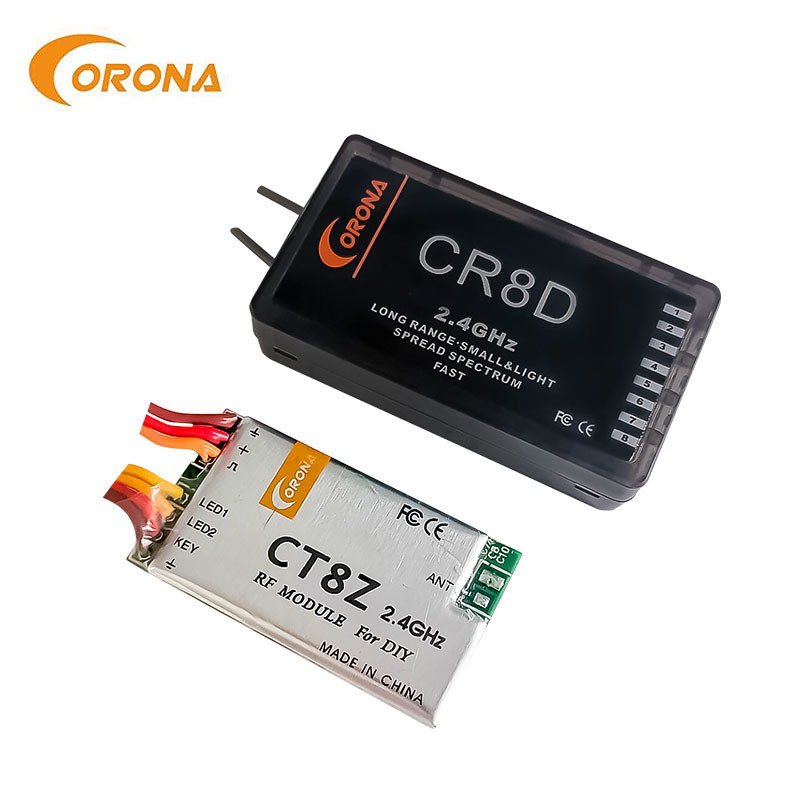

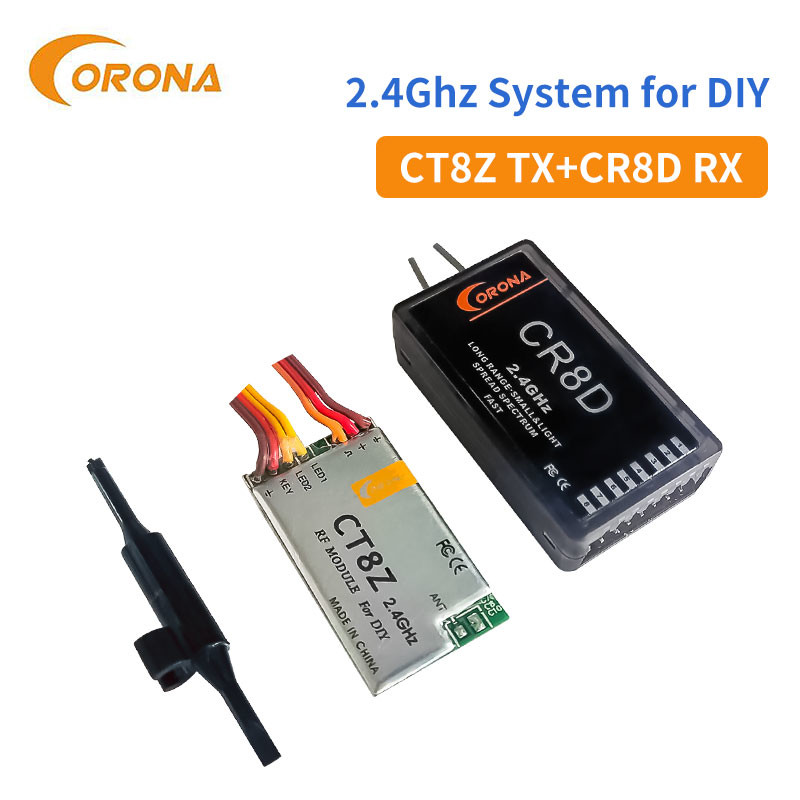

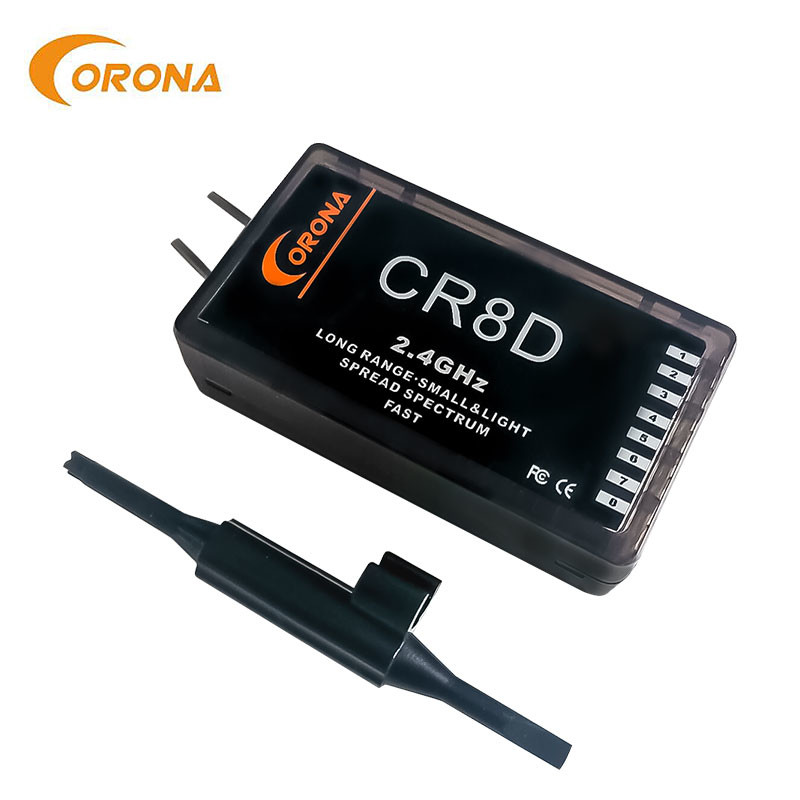

Corona DIY CT8Z+CR8D Set 2.4g DSSS rc transmitter and receiver for airplane rc car
Receiver and Transmitter Setup Instructions
By following these steps you will ensure your transmitter and receiver are properly setup and ready to fly.
1. Turn the transmitter on and adjust your transmitter to PPM mode and then turn the transmitter off.
2. Press and hold the programming button on the extend board,turn the transmitter on,then you can release the button.(Attention: Not keep hold the button down over 3 seconds,or its ID will change randomly) The LED on Module will flash between red and green indicating the transmitter is ready to bind with the receiver.
3. Press and hold the button on the receiver and power the receiver on. The LED on the receiver will flash twice, indicating the receiver have recognized the transmitter. Turn off the transmitter and receiver.
4. Power on the receiver(s) without pressing any button, then power up the transmitter also without pressing button, the LED on the transmitter light red. The RF-link will normally connect in 5~10 seconds between transmitter and the receiver(s).If linked the LED on the receiver(s) will light red without any flash indicating the receiver(s) is operating properly. If the LED flashes intermittely or does not light at all. Repeat this step until link is connected properly.
5. After setup, give power to the transmitter firstly and it will transfer singnal about 5 seconds later give power to the receiver to check the red led light steadily if all servos are under controlling it means it is ready to fly .
We hope you enjoy your new 2.4 Ghz receiver and transmitter modules. They have been designed and produced using the highest quality control measures available. If you have any questions please do not hesitate to contact us or visit our website.
| Size | 38.5*21.8*6.5mm |
| Antenna Gain | 3dbi |
| Frequency Band | 2405Mhz~2478.5Mhz |
| Operating Mode | PPM |
| Operating Voltage | 8V ~13V |
| Output Power | <100mW |
| Operating Current | <100mA |
| Compatinle Receivers | CR8D/CR6D/CR4D |
Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.
Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.
1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?
For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?
For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?
Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?
EXW,FOB,CFR,CIF,DDU.
6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
