| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Certification: | ISO9001 CE ROHS |
| Model Number: | CS239MG |
| Minimum Order Quantity: | 5pieces |
| Price: | $7.14 /pcs- $9.59/pieces |
| Packaging Details: | box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union,Paypal . Alibaba Trade Assurance |
| Supply Ability: | 30000 pcs/per Month |
| Warranty: | 3 Months | Type: | SERVO MOTOR |
|---|---|---|---|
| AC Voltage: | 4.8-6V | Size: | 30x10x34.5mm(1.18"x0.4"x1.35") |
| Weight: | 22g(0.77OZ) | Operating Voltage: | 4.8V /6.0V |
| Operating Current: | 300mA / 400mA | Stall Torque: | 4.kg.cm / 4.6kg.cm |
| Dead Band: | ≤5uSec | Potentiometer: | 3 Slider/Indirect Drive |
| Port: | Shanghai | ||
| High Light: | wing servo corona ds-239mg,corona ds-239mg digital slim wing servo,digital slim wing servo |
||

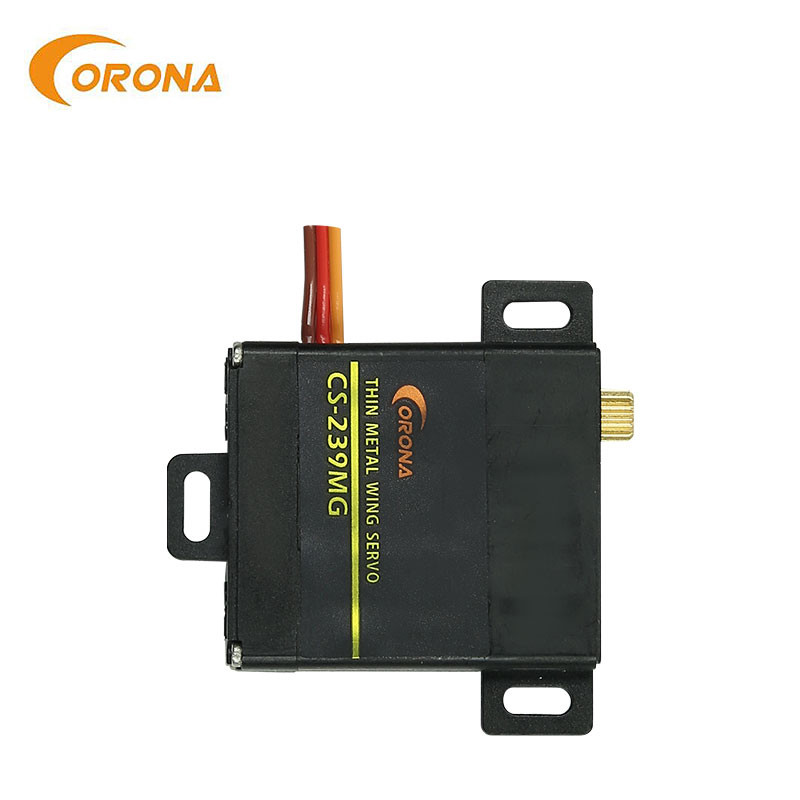

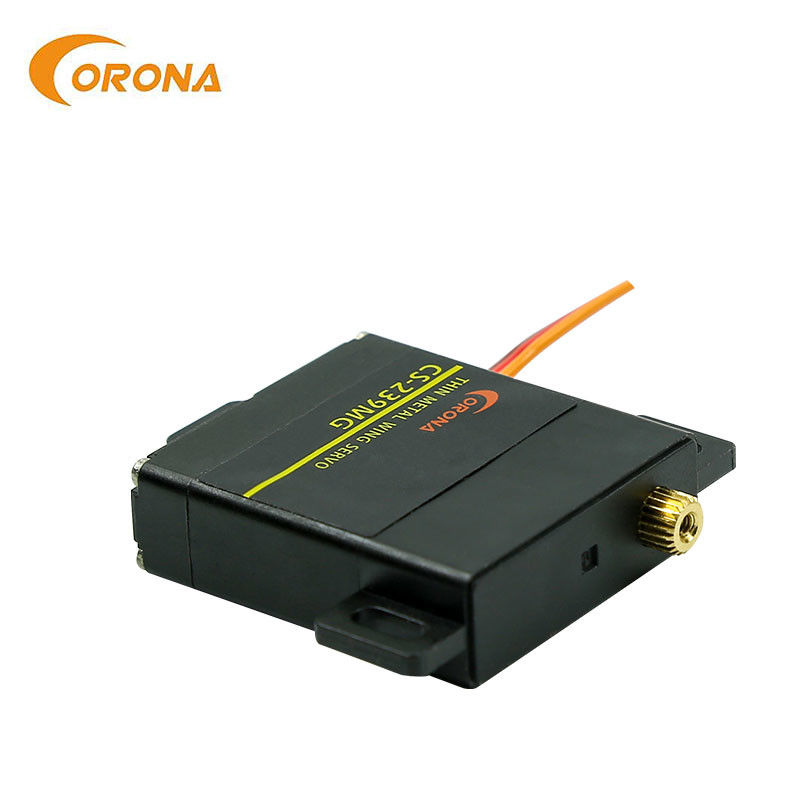

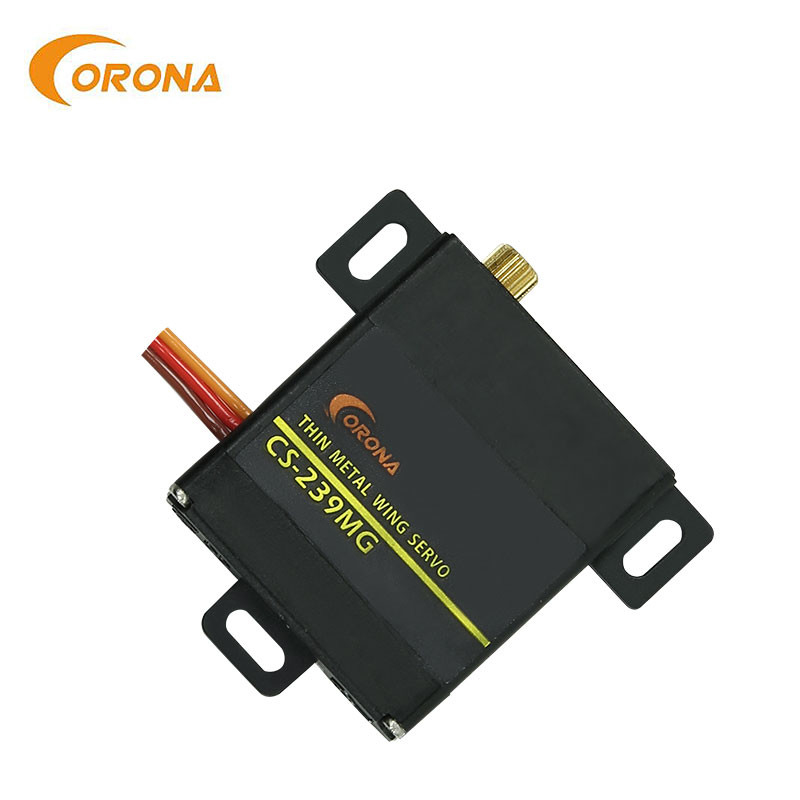

Corona CS239MG analog 4.6kg 6v 0.14sec slim wing glider servo
Servo motors are used in numerous markets to power machines, instruments, robots, and other factory automation applications. This blog addresses five major elements of a conventional brushless DC servo motor: the rotor, stator, bearings, feedback and housing.
| Item No | CS239MG |
| Size | 30x10x34.5mm(1.18"x0.4"x1.35") |
| Weight | 22g(0.77OZ) |
| Voltage | 4.8V /6.0V |
| Current | 300mA / 400mA |
| Operateing speed | 0.15sec.60º/ 0.14sec.60º |
| Stall torque | 4.kg.cm / 4.6kg.cm |
| Dead band | ≤5uSec |
| Operating Travel | 40º/One side pulse 400us |
| Potentiometer | 3 slider/Indirect Drive |
| Ball bearing | MR85x2 |
| Gear | Metal |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.
Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.
1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?
For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?
For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?
Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?
EXW,FOB,CFR,CIF,DDU.
6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
