| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Certification: | ISO9001 CE ROHS |
| Model Number: | DS239HV |
| Minimum Order Quantity: | 2 pieces |
| Price: | $10.16/pieces 2-10 pieces |
| Packaging Details: | one pieces per color box packing |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 3000 pieces per day |
| Weight: | 22g(0.77OZ) | Size: | 30x10x34.5mm(1.18"x0.4"x1.35") |
|---|---|---|---|
| Operating Voltage: | 6.0V / 8.4V | Operating Current: | 300mA / 400mA |
| Dead Band: | ≤3uSec | Stall Torque: | 4.kg.cm / 4.6kg.cm |
| Potentiometer: | 3 Slider/IndirectDrive | Radio Control Style: | RC Hobby |
| Scale: | Standard | ||
| High Light: | micro metal gear servo,metal gear servos,Corona DS239HV |
||

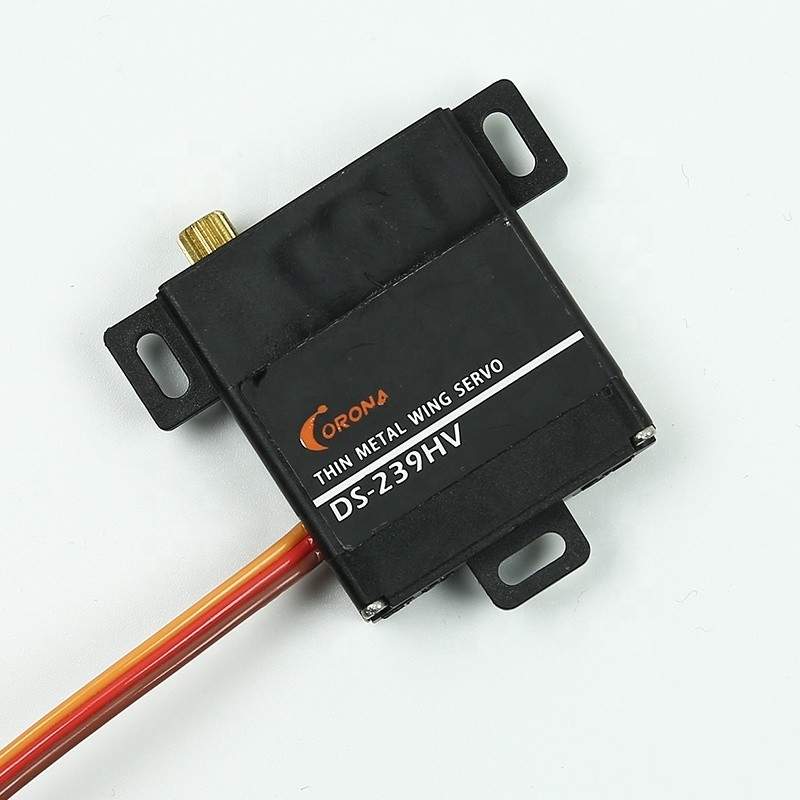

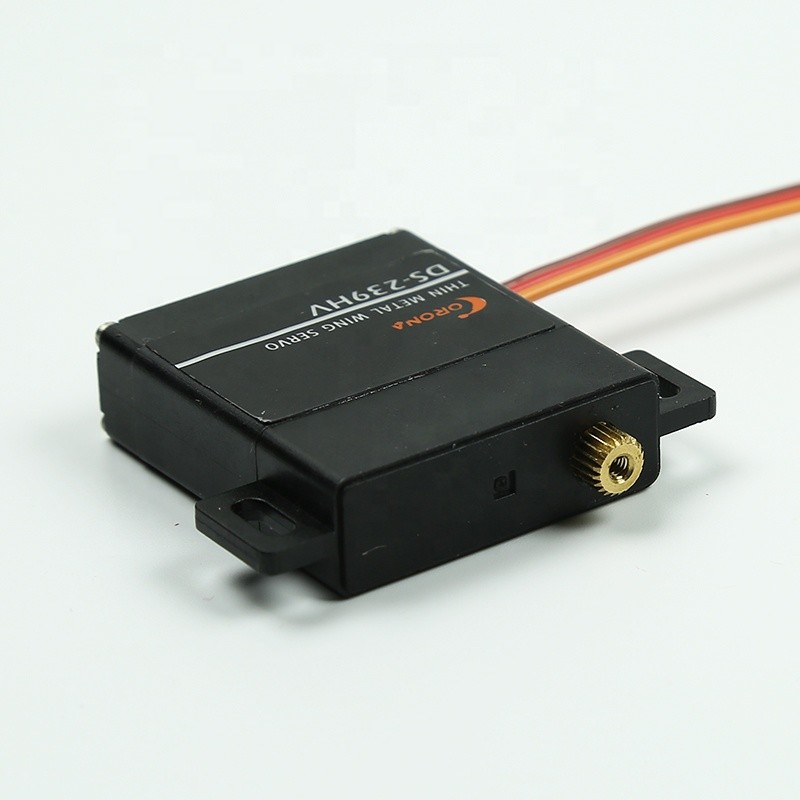

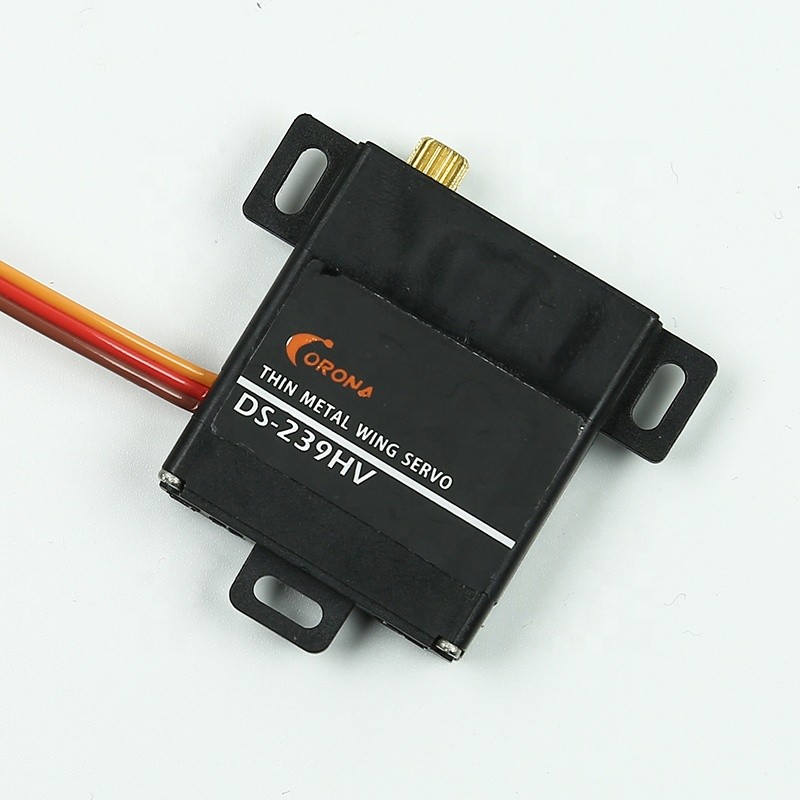

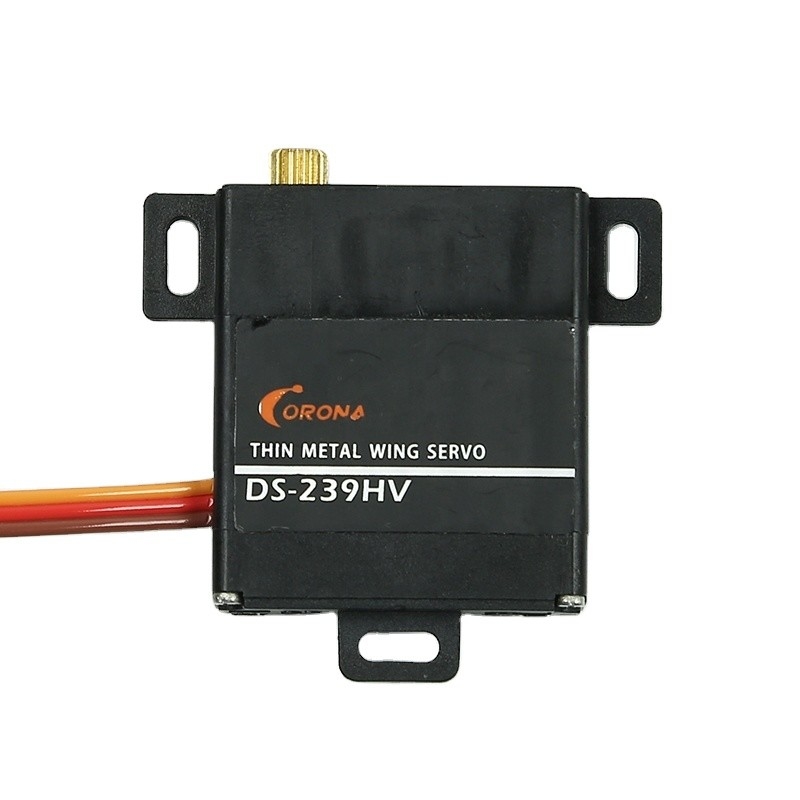

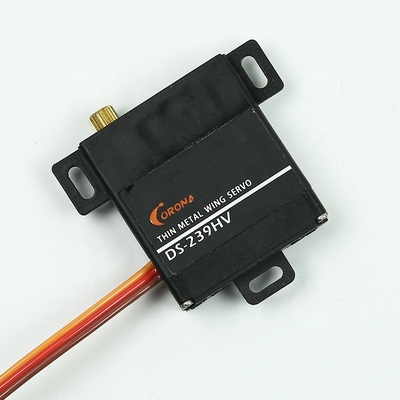

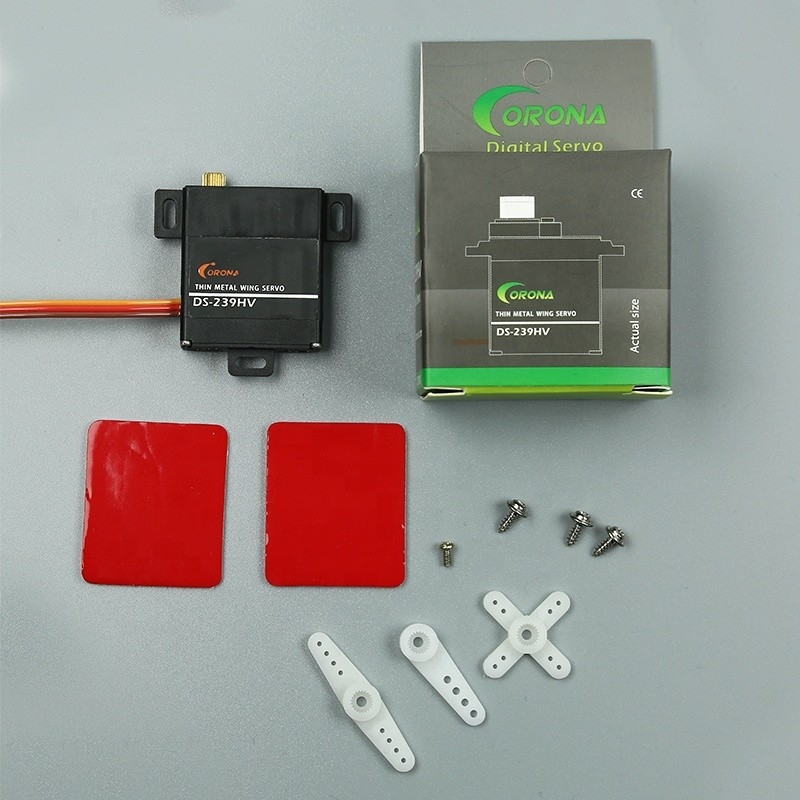

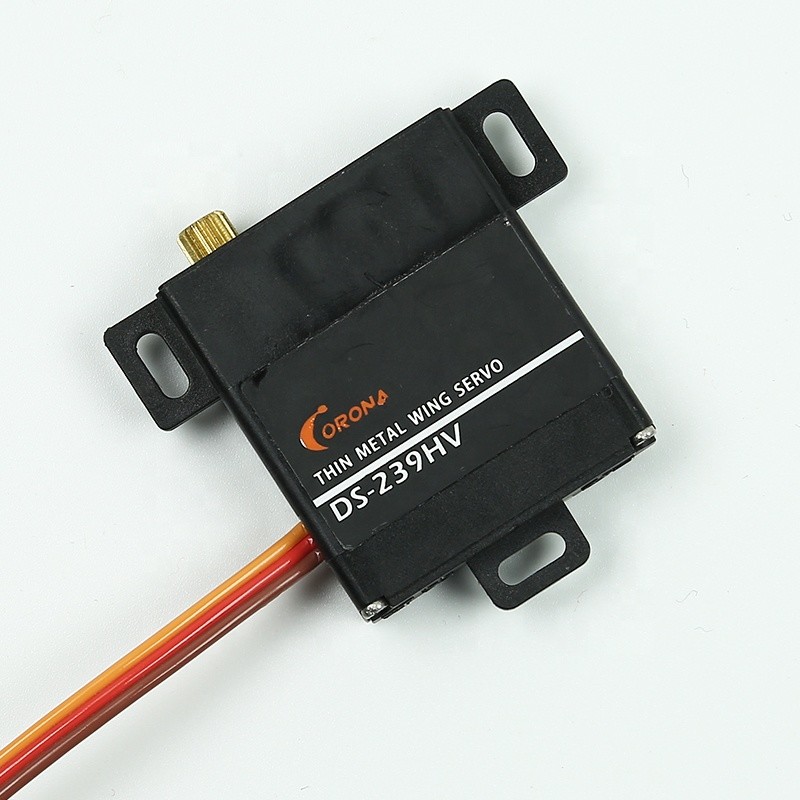

Corona DS239HV Mini Metal Gear Digital Servos For Rc Helicopter Plane Boat Car
| Item No | DS239HV |
| Size | 30x10x34.5mm(1.18"x0.4"x1.35") |
| Weight | 22g(0.77OZ) |
| Voltage | 6.0V / 8.4V |
| Current | 300mA / 400mA |
| Operateing speed | 0.14sec.60º/ 0.13sec.60º |
| Stall torque | 4.kg.cm / 4.6kg.cm |
| Dead band | ≤3uSec |
| Operating Travel | 40º/one side pulse traveling 400us |
| Potentiometer | 3 slider/IndirectDrive |
| Ball bearing | MR85X2 |
| Gear | Metal |
| Connector wire length | 215mm |
| Operating Temperature Range |
-20 ℃ to +60℃ |
These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
Servo Applications:
1. Electric lock (anti-heft door lock servo)
2. Smart lamp Switch Servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Luggage case lock servo
6. Camera gimbal control servo
7. UAV heavy duty servo
7. Servo Release Servo Drop
9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Robot arm servo
15. Medical equipment servo
16. Curtain Servo
17. Robot servo
18. Wheel servo
19. Car window winding servo
Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.
Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.
