4.6kg 22g Mini Servo Metal Gear Corona DS238HV 0.13Sec

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Corona
Certification: ISO9001 CE ROHS
Model Number: DS238HV
Minimum Order Quantity: 2pieces
Price: $7.14/pieces -$9.52 pieces
Packaging Details: box
Delivery Time: 7 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 30000 pcs/per Month
Detail Information
Type: Mini Servo Size: 29x13x30mm(1.14"x0.51"x1.18")
Weight: 22g(0.77OZ) Operating Voltage: 6.0V / 7.4V
Operating Current: 300mA / 400mA Stall Torque: 4.kg.cm / 4.6kg.cm
Dead Band: ≤3uSec Potentiometer: 3 Slider/indirect Drive
Ball Bearing: MR106 Gear: Metal
Connector Wire Length: 215mm
High Light:

22g Mini Servo Metal Gear

,

servo corona ds238hv

,

Corona DS238HV


Product Description

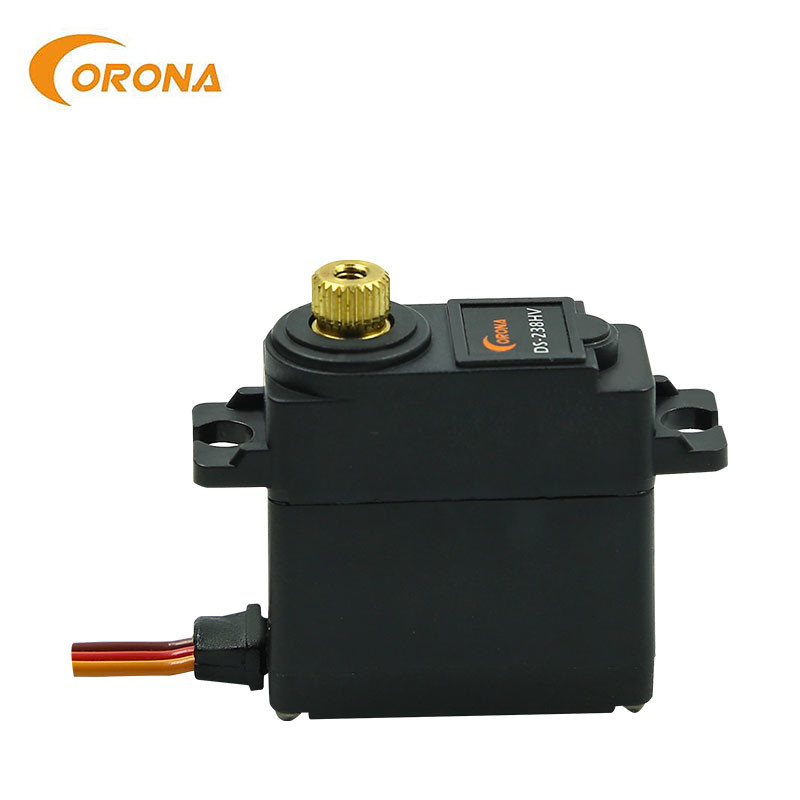

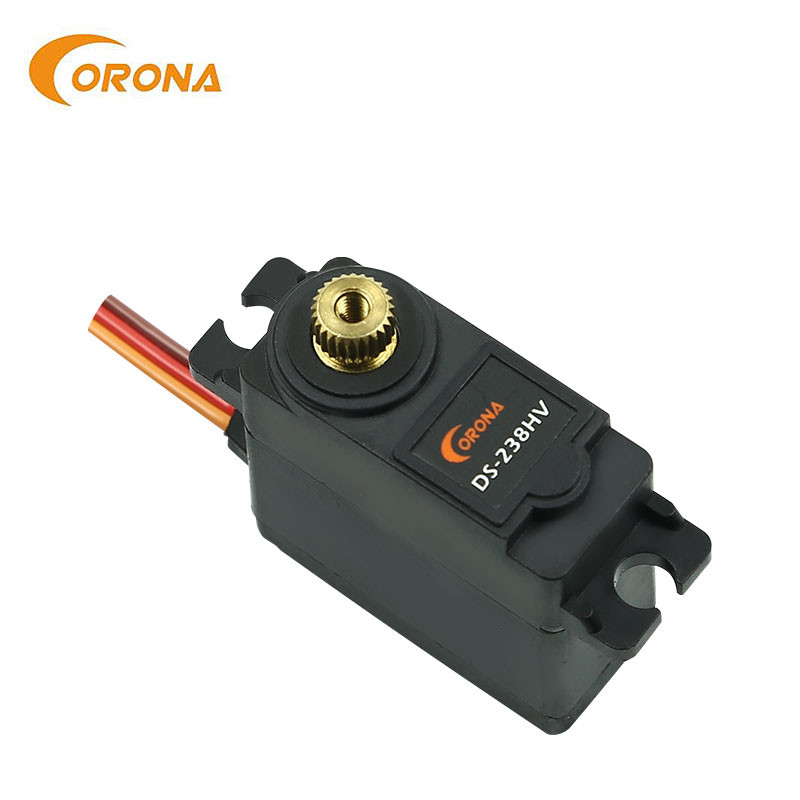

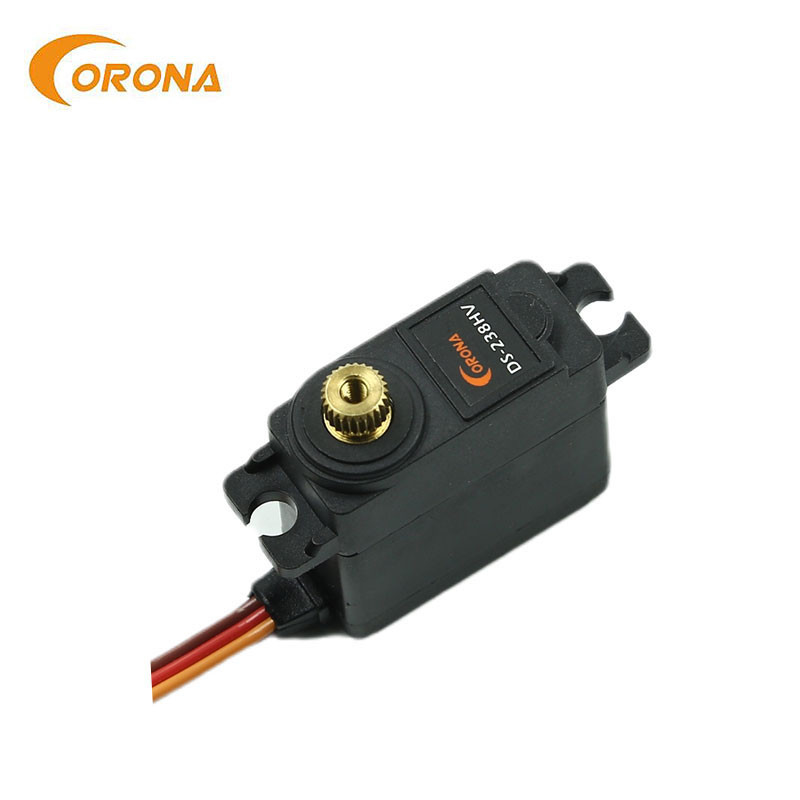

Corona DS238HV 4.6kg 0.13 Sec 22g Digital Metal Gear mini Servo

A servomechanism (servo) can refer to quite a few different machines that have been around longer than most may realize. Essentially, a servo is any motor-driven system with a feedback element built in.




Item: DS238HV
Size: 29x13x30mm(1.14"x0.51"x1.18")
Weight: 22g(0.77OZ)
Voltage: 6.0V / 7.4V
Current: 300mA / 400mA
Operating speed: 0.14sec.60º/ 0.13sec.60º
Stall Torque: 4.kg.cm / 4.6kg.cm
Dead Band: ≤3uSec
Operating Travel: 40º/one side pulse 400us
Potentiometer 3 slider/indirect Drive
Ball bearing MR106
Gear Metal
Connector wire length 215mm
Operating Temperature Range -20 ℃ to +60℃











4.6kg 22g Mini Servo Metal Gear Corona DS238HV 0.13Sec 0

 4.6kg 22g Mini Servo Metal Gear Corona DS238HV 0.13Sec 1

4.6kg 22g Mini Servo Metal Gear Corona DS238HV 0.13Sec 2







Company Information

4.6kg 22g Mini Servo Metal Gear Corona DS238HV 0.13Sec 3

Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.


Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.

4.6kg 22g Mini Servo Metal Gear Corona DS238HV 0.13Sec 4

4.6kg 22g Mini Servo Metal Gear Corona DS238HV 0.13Sec 5

Packaging & Shipping

 4.6kg 22g Mini Servo Metal Gear Corona DS238HV 0.13Sec 6

FAQ

1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?

For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?

For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?

Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?

EXW,FOB,CFR,CIF,DDU.
6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
