Drone Futaba S Fhss Receiver 2.4g For Rc Airplane Corona GR7SF

Basic Information
Place of Origin: Jiangsu, China
Brand Name: Corona
Certification: CE ROHS
Model Number: GR7SF
Minimum Order Quantity: 2pcs
Price: $16.66/pieces -$18.88 pieces
Packaging Details: one pieces per color box packing.
Delivery Time: 7 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 10000 pcs/per Month
Detail Information
Use: Universal Compatibility: T6J,T8J,T10J And T14SG Under S-FHSS Protocol Mode
Operating Current: 60mA Max Operating Voltage: 3.6~8.5V
Latency: 6.8mS Sensitivity: About -96dBm
Weight: 16g
High Light:

futaba drone receiver

,

Corona GR7SF

,

futaba fhss


Product Description

Corona GR7SF 2.4g futaba sfhss rc transmitter and receiver for rc airplane



CORONA GR7SF compatible Futaba SFHSS receiver . It has GYRO function .



Make sure that your plane has good status before installing GR7SF and other electrical device on it.



You can also set failsafe on the S-FHSS transmitter just like the operation of the FUTABA receivers. We highly recommend you set failsafe feature while flying your models.



Product Description
Compatibility T6J,T8J,T10J and T14SG under S-FHSS protocol mode
Operating Current 60mA max
Operating Voltage 3.6~8.5V
Latency 6.8mS
Sensitivity about -96dBm
Weight 16g



Compatibility:



CORONA 2.4GHz S-FHSS Compatible Receiver is designed to use with FUTABA S-FHSS 2.4GHz transmitters, such as T6J,T8J,T10J and T14SG under S-FHSS protocol mode.



Feature:



Mode supply: No mixer, Dual-aileron, V-tail mixer, Delta mixer

Independent simple gyro gain adjustment for Aileron, Elevator and Rudder

S.BUS output support expanding servo channels @the 8th channel

Support gyro function switch on and off in flying by Switching signal of CH5



Specifications:

  • Voltage Range :3.6~8.5V
  • Operating Current:  60mA max
  • Operation temperature: -10~70 degC
  • Latency: 6.8mS
  • Sensitivity: about -96dBm
  • Weight: 16g

Bind procedure:

  • Turn on the S-FHSS transmitter
  • Connect the battery to the receiver while pressing receiver’s F/S button.
  • Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.

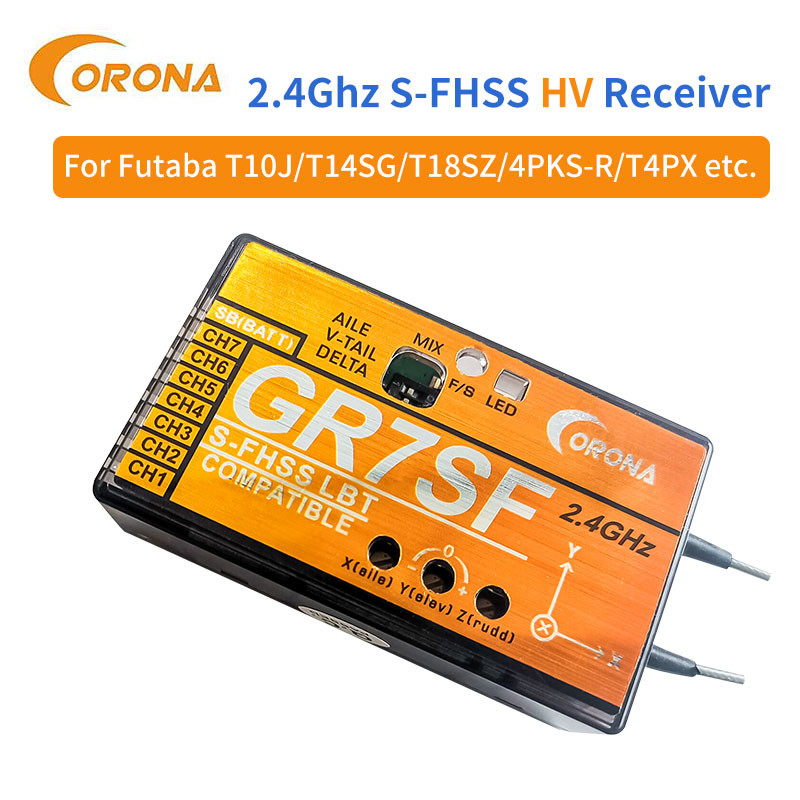

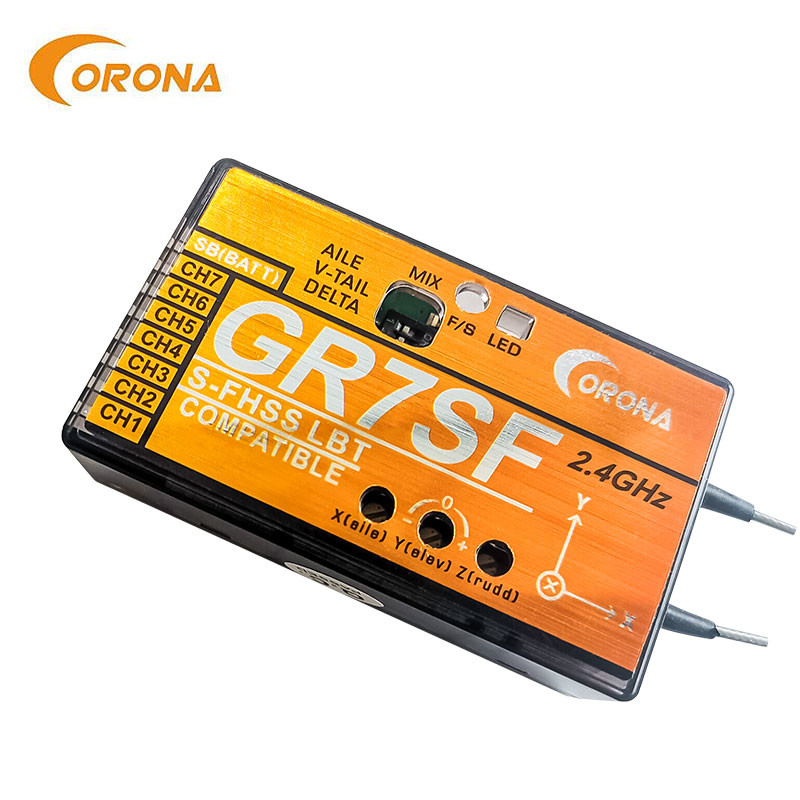

Drone Futaba S Fhss Receiver 2.4g  For Rc Airplane Corona GR7SF 0Drone Futaba S Fhss Receiver 2.4g  For Rc Airplane Corona GR7SF 1



Company Information



    Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.


    Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.

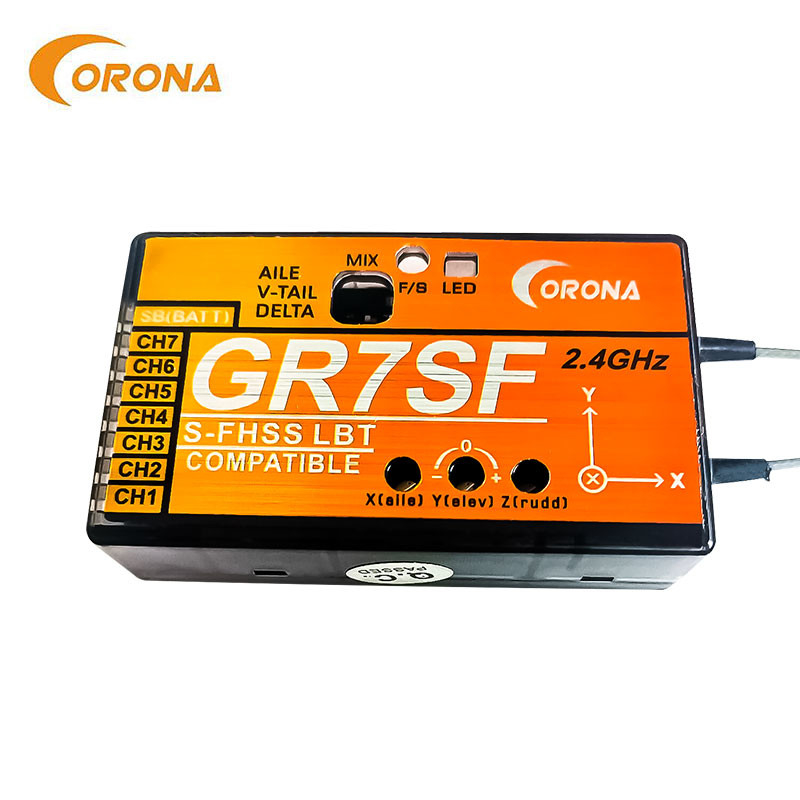

Drone Futaba S Fhss Receiver 2.4g  For Rc Airplane Corona GR7SF 2

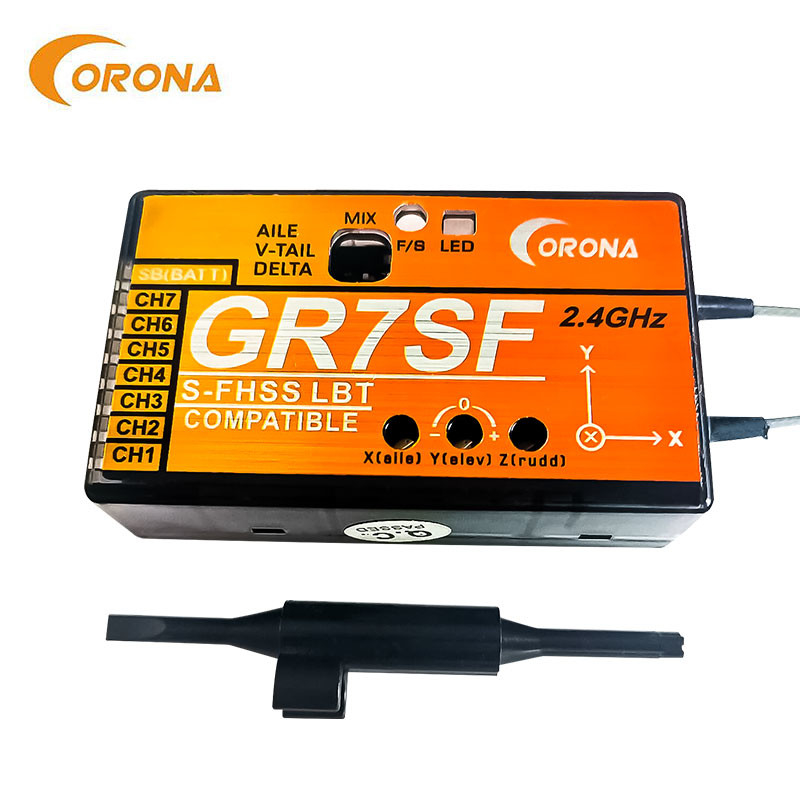

Drone Futaba S Fhss Receiver 2.4g  For Rc Airplane Corona GR7SF 3

Packaging & Shipping

 Drone Futaba S Fhss Receiver 2.4g  For Rc Airplane Corona GR7SF 4

FAQ

1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?

For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?

For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?

Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?

EXW,FOB,CFR,CIF,DDU.
6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
