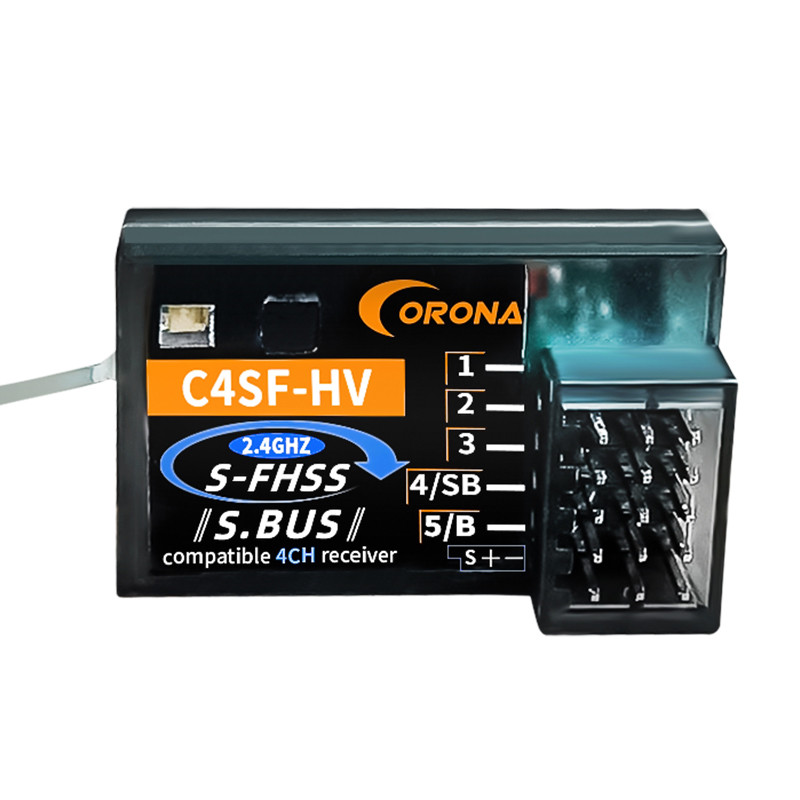

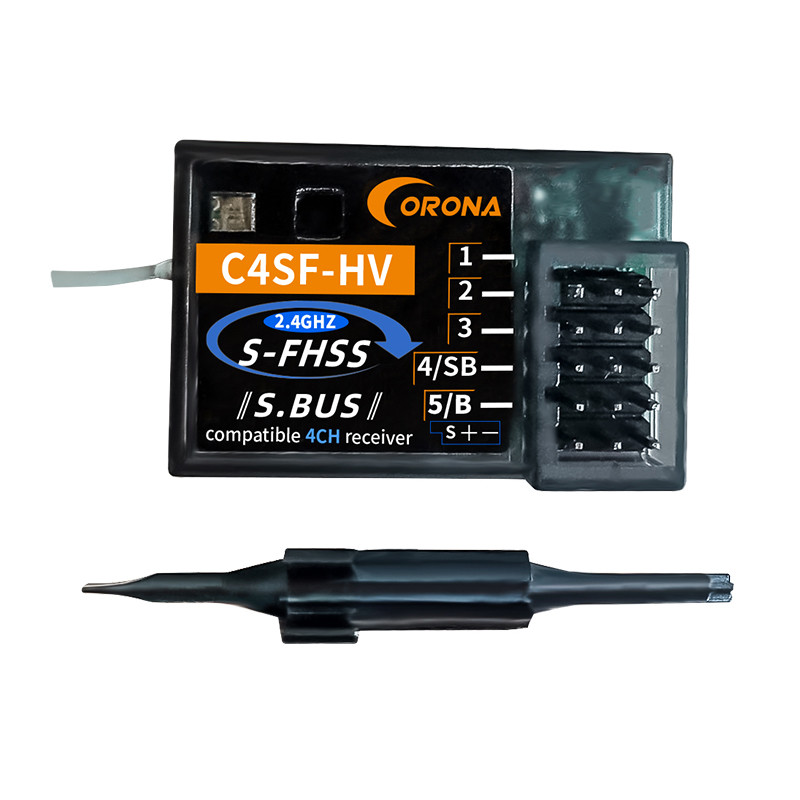

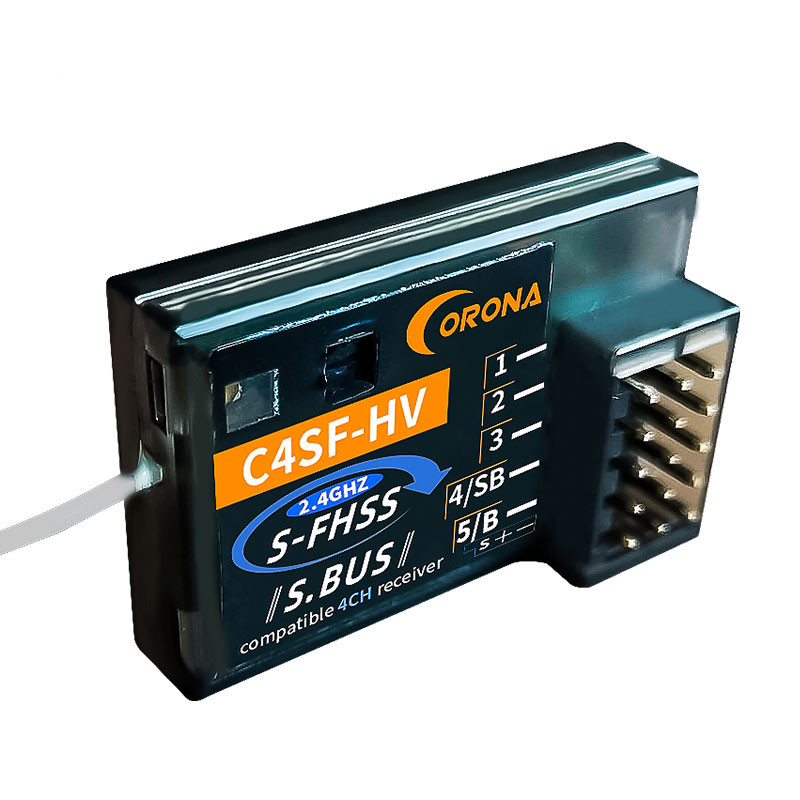

2.4g Futaba S Fhss Receiver Module CORONA C4SF-HV

Basic Information
Place of Origin: Jiangsu, China
Brand Name: CORONA
Certification: CE ROHS
Model Number: C4SF-HV
Minimum Order Quantity: 2pcs
Price: $13.02/pieces -15.08 pieces
Packaging Details: one pieces per color box packing.
Delivery Time: 7 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 10000 pcs/per Month
Detail Information
Color: Black Material: Plastic
Function: Received Signal Operating Current: 60mA Max And 45mA Under Linked
Operating Voltage: 3.6~8.5V Latency: 13.6mS Or 20.4mS
Sensitivity: About -95dBm Weight: 11g
High Light:

futaba s-fhss module


futaba s-fhss module



Product Description

CORONA C4SF-HV 2.4g futaba s fhss rc remote control truck trailer rc car transmitter splash receiver


CORONA C4SF-HV can be used for rc car . It also has splash proof function .  It only has 6.2g . The volum is very small .



If you want to use SBUS  function pls note it must be under special status .  When  you bind to your radio , the Green  light on is succeed .


If you have any question pls contact us .



Product Description

CORONA C4SF-HV  2.4g futaba s fhss rc remote control truck trailer rc car transmitter receiver






CORONA 2.4GHz S-FHSS/FHSS Compatible Receiver is designed to use withFUTABA S-FHSS/FHSS 2.4GHz transmitters, such as air system T4YF,T6J,T6K,T8J,T10J, T14SG ,T18MZ,T18SZ or surface system 3PL,T3PRKA, 4PLS,T4PX,T4GRS under S-FHSS/FHSS protocol mode.




4ch servo channels in C4SF-HV under normal status.


S.BUS output support expanding servo channels on the 4th channel of C4SF-HV under special status.


It has water splash proof function.




Operating Current: 60mA max and 45mA under linked


Operating Voltage: 3.6 ~8.5V


 Sensitivity: about -95dBm for C4SF-HV


Operation temperature: -10~70 degC


Weight: 6.2g for C4SF-HV


Latency: 13.6mS ~20.4mS


Bind procedure:

Turn on the S-FHSS/FHSS transmitter, leave it 0.5M~1M away the receiver.


Connect the battery to the receiver while pressing receiver’s F/S button.


Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.


Fail-safe setting:


C4SF-HV set failsafe on the S-FHSS/FHSS transmitter just like the operation of the FUTABA receivers if the feature exist. We highly recommend you set failsafe feature while driving your models. An example of a useful Failsafe settingwould be to shut down the model’s throttle, so that it does not fly or drive away uncontrolled.


Special/Normal mode switch guide:


If your receiver has been linked with your transmitter, please power off your transmitter. When your receiver’s LED light red, push down and hold the button on your receiver for more than 6 seconds and not more than 10 seconds, release the button to see the green led flash, push down the button again right now, receiver get back to light red . Now the MODE status has changed between Special mode and Normal mode. When green led flash low indicate normal mode to special mode, and green led flash fast indicate special mode to normal mode.

Under the special mode status, you can get S.BUS output feature on the the 4th channel of servo channel, other channels not changed.


Servo selection guide:


If you want to take analog servos on the model, please take normal mode.





ON off No signal searched
OFF solid Signal is very good
OFF flash Signal is not very good



Signal is weak
