| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Certification: | ISO9001 CE ROHS |
| Model Number: | CS238MG |
| Minimum Order Quantity: | 2pieces |
| Price: | $5.58 - $9.15/pieces |
| Packaging Details: | box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 3000 Piece/Pieces per Day |
| Type: | Mini Servo | Size: | 29x13x30mm(1.14"x0.51"x1.18") |
|---|---|---|---|
| Weight: | 22g(0.77OZ) | Operating Voltage: | 4.8V / 6.0V |
| Operating Current: | 300mA / 400mA | Stall Torque: | 4kg.cm / 4.6kg.cm |
| Dead Band: | ≤5uSec | Potentiometer: | 3 Slider/Indirect Drive |
| Ball Bearing: | MR106 | Gear: | Metal |
| Connector Wire Length: | 215mm | Radio Control Style: | RC Hobby |
| Scale: | Standard | Port: | Shanghai |
| High Light: | High Torque Analog Servo,mini metal gear analog servo,Corona CS238MG |
||

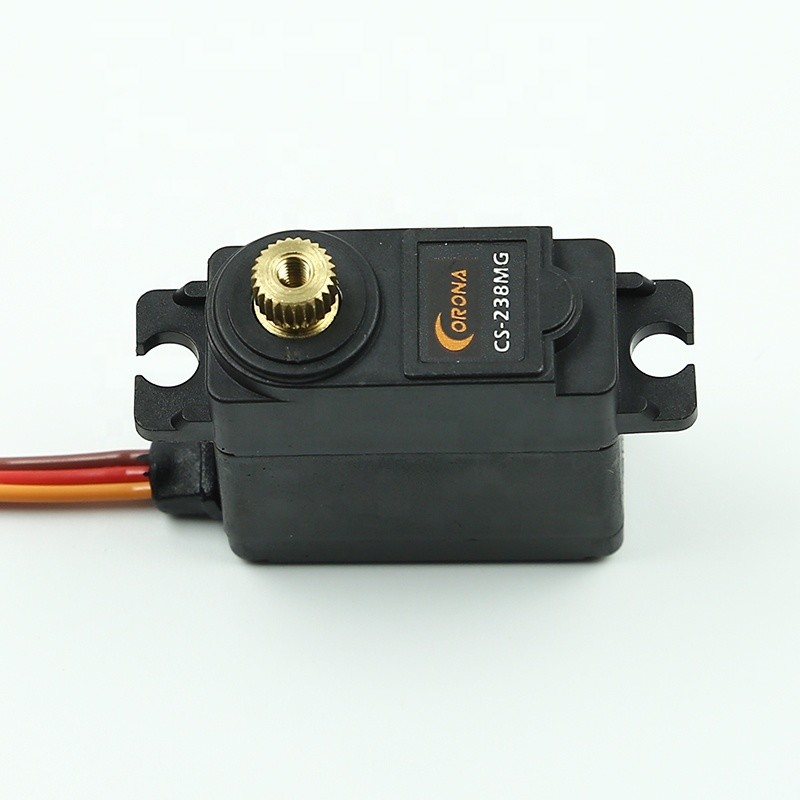

Corona CS238MG Analog Servo With Metal Gear For Rc Aircrafts Cars Boats Robots
cs238mg is a high torque servo at a low price.
Corona presents the DS-239MG. 10mm thick servo features a metal gear train which supplies a fair 4.6kg of torque at 6v while dual ball bearings keep things running smooth. CS238MG is an analog servo, but the torque and the speed can meet the industrial use and rc toy. If you have higher demand, digital servo is recommeded for industrial use.
| Item No | CS238MG |
| Size | 29x13x30mm(1.14"x0.51"x1.18") |
| Weight | 22g(0.77OZ) |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 300mA / 400mA |
| Operateing speed | 0.15sec.60º/ 0.14sec.60º |
| Stall torque | 4kg.cm / 4.6kg.cm |
| Dead band | ≤5uSec |
| Operating Travel | 40º/one side pulse traveling 400us |
| Potentiometer | 3 slider/Indirect Drive |
| Ball bearing | MR106 |
| Gear | Metal |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
