| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Corona |
| Certification: | ISO9001 CE ROHS |
| Model Number: | DS239MG |
| Minimum Order Quantity: | 2 pieces |
| Price: | $9.84/pieces 2-10 pieces |
| Packaging Details: | box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 3000 Piece/Pieces per Day |
| Type: | Mini Servo | Age Range: | 14 Years & Up |
|---|---|---|---|
| Weight: | 22g(0.77OZ) | Size: | 30x10x34.5mm(1.18"x0.4"x1.35") |
| Operating Voltage: | 4.8V / 6.0V | Operating Current: | 300mA / 400mA |
| Dead Band: | ≤3uSec | Stall Torque: | 4.kg.cm / 4.6kg.cm |
| Potentiometer: | 3 Slider/indirect Drive | Port: | Shanghai |
| High Light: | waterproof servo rc,rc metal gear,Corona DS239MG |
||

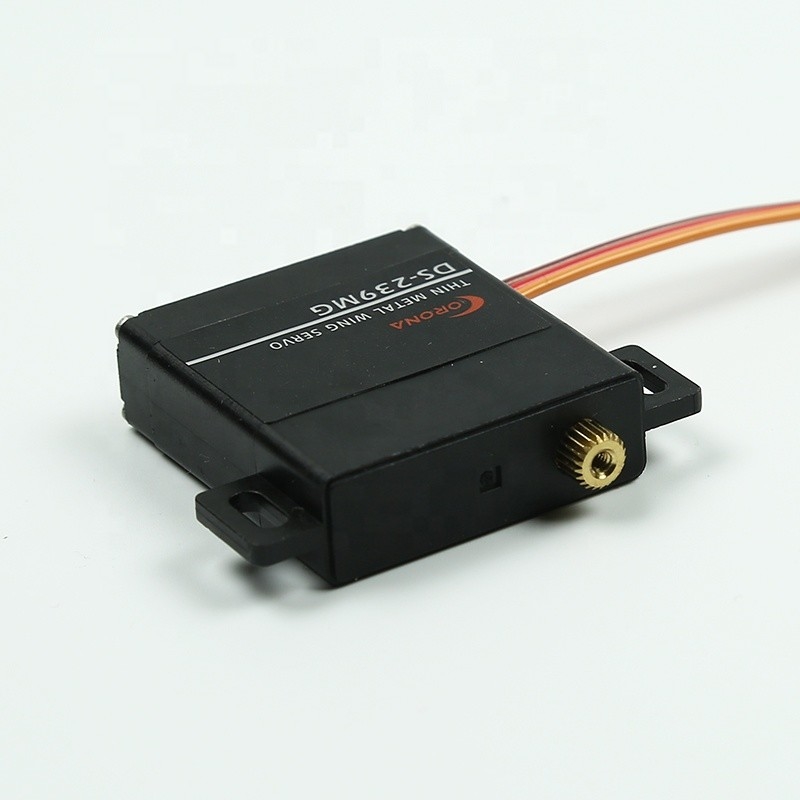

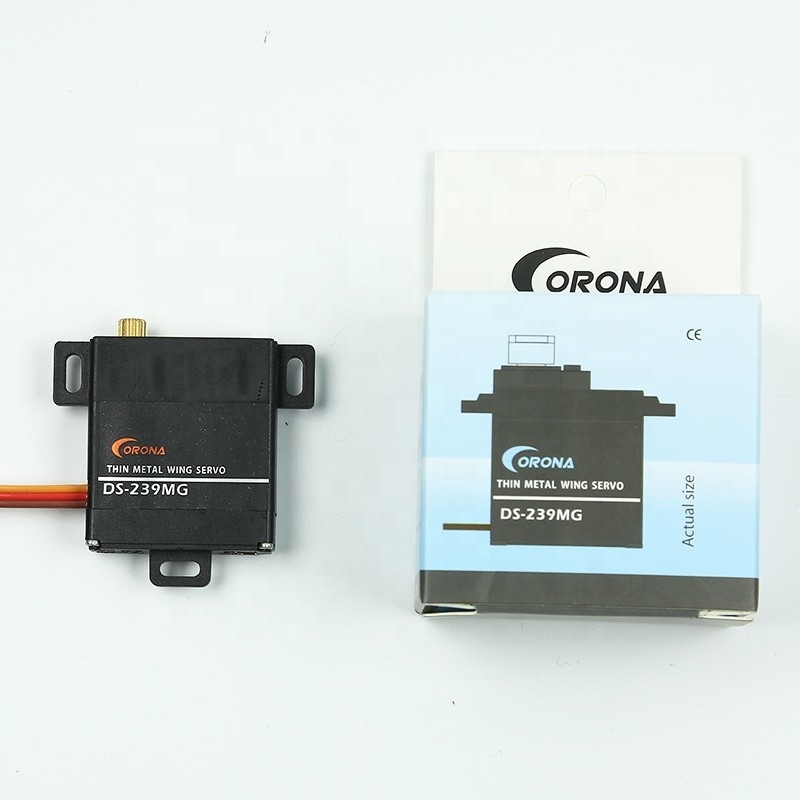

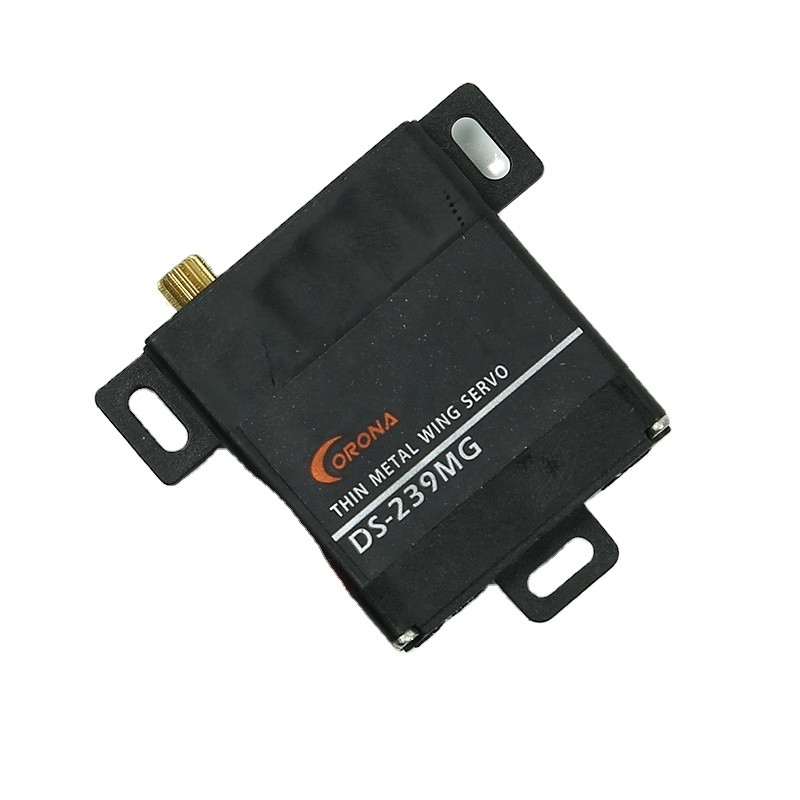

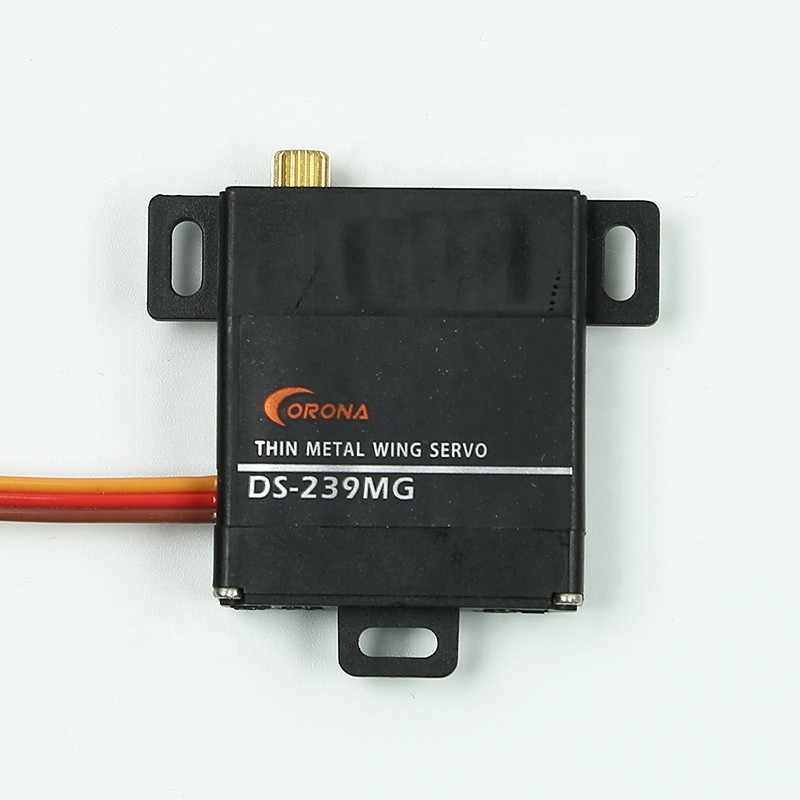

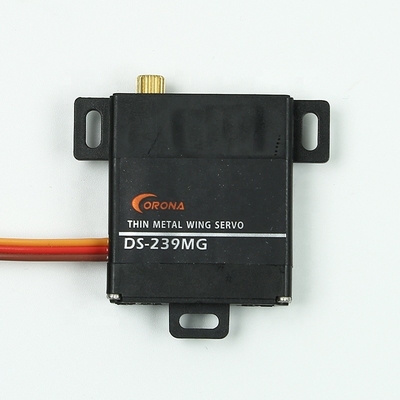

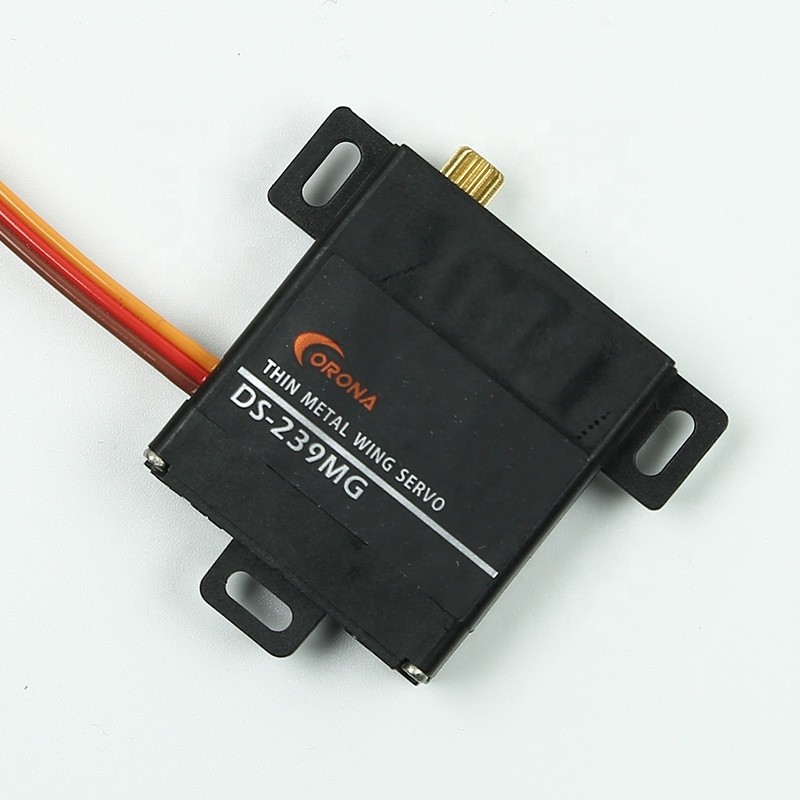

Corona DS239MG Rc Toy Car Truck Helicopter Boat Toys Mini Digital Servo
Corona DS239MG Servo - 4.6 kg , 0.14 sec - 22g Digital Standard Voltage Wing Servo
A budget metal gear, standard voltage wing servo.
Corona presents the DS239MG. This inexpensive, standard voltage wing servo puts up to 4.6kg and at a fairly decent speed.
| Item No | DS239MG |
| Size | 30x10x34.5mm(1.18"x0.4"x1.35") |
| Weight | 22g(0.77OZ) |
| Voltage | 4.8V / 6.0V |
| Current | 300mA / 400mA |
| Operateing speed | 0.15sec.60º/ 0.14sec.60º |
| Stall torque | 4.kg.cm / 4.6kg.cm |
| Dead band | ≤3uSec |
| Operating Travel | 40º/one side pulse 400us |
| Potentiometer | 3 slider/indirect Drive |
| Ball bearing | MR85X2 |
| Gear | Metal |
| Connector wire length | 215mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
Servo Applications:
1. Electric lock (anti-heft door lock servo)
2. Smart lamp Switch Servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Luggage case lock servo
6. Camera gimbal control servo
7. UAV heavy duty servo
7. Servo Release Servo Drop
9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Robot arm servo
15. Medical equipment servo
16. Curtain Servo
17. Robot servo
18. Wheel servo
19. Car window winding servo
Corona Electronics and Technology CO.,LTD is one of the leading professional receiver and servo manufacturers in China.Corona boasts the lightest,smalllest and most reliable receivers and servo with the greatest range in the RC world.We specialize in designing and manufacturing Servos and 2.4GHz combos for Futaba and JR radios . As an export-oriented company , Corona has excellent international distribution channels and our products are sold to more than 40 countries around the world.Corona is based in Wu Xi City which is very close to Shanghai.If you come to China,you are very welcome to visit our office and our factory.
Our motto at Corona is Technological innovation & striving for perfection.We will continue to grow and strive to produce original, innovatively engineered,top quality products to share with the RC World.
1. Why choose us?
We are one of the leading professional receiver and servos manufacturers in china and we have been in this industry for almost 14 years. Most of all, we have own factory. The product cost is competitive.
2.What is your terms of payment?
For payment, we accept payment by T/T, paypal, Alibaba trade assurance.If you want any other payment term, please let us know before you place an order.
3. Which shipping service is better?
For shipping ways, there are many shipping ways that you can choose For example, sea shipping, China post, China airmail, EMS. DHL, Fedex, UPS, and TNT ect.
4. How about your delivery time?
Most of our products are in stock, so we can have your goods shipped within 3 days after payment.
5. What is your terms of delivery?
EXW,FOB,CFR,CIF,DDU.
6.Do you test all your goods before delivery?
Yes,we have 100% test before deliver.
7. What is your sample policy?
We can supply the sample,but you pay the sample cost and The shipping fee.
8. Can you produce according to the samples?
Yes, we can produce with your samples or technical drawings.
