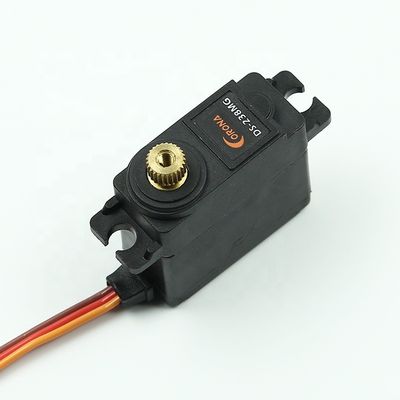

Mini Metal Gear Servo Stronger Sail Winch Rc Car Plane Servo Corona Ds 238 Mg

The RC Servo block represents a small DC motor with a gearbox and control circuitry, commonly used in quadcopters, radio-controlled planes and helicopters, and other mechatronic devices. RC servos provide angular position control of the output shaft over a limited angle range.Why are RC servos so expensive?
Servo motors are expensive because of their sophisticated closed-loop control mechanisms. This is implemented by using an encoder that tracks the position of the motor shaft and runs a feedback algorithm to precisely achieve the desired direction, speed, and angle of rotation.



Item No	DS238MG
Size	29x13x30mm(1.14"x0.51"x1.18")
Weight	22g(0.77OZ)
Operating Voltage	4.8V / 6.0V
Operating Current	300mA / 400mA
Operateing speed	0.15sec.60º/ 0.14sec.60º
Stall torque	4kg.cm / 4.6kg.cm
Dead band	≤3uSec
Operating Travel	40º/one side pulse traveling 400us
Potentiometer	3 slider/Indirect Drive
Ball bearing	MR106
Gear	Metal
Connector wire length	215mm
Operating Temperature Range	-20 ℃ to +60℃

    These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.

Servo Applications:
1. Electric lock (anti-heft door lock servo)

2. Smart lamp Switch Servo

3. Washing machine safety mechanism servo

4. Water/gas valve control Servo
5. Luggage case lock servo

6. Camera gimbal control servo
7. UAV heavy duty servo

7. Servo Release Servo Drop

9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo

11. Smart bike gear change servo
12. Electric car mirror servo

13. Car seat adjustment servo
14. Robot arm servo

15. Medical equipment servo

16. Curtain Servo

17. Robot servo

18. Wheel servo

19. Car window winding servo
