8 Ch Futaba S-Fhss 2.4ghz Futaba 8 Channel Receiver Rc Helicopter Transmitter Receiver Corona R8SF

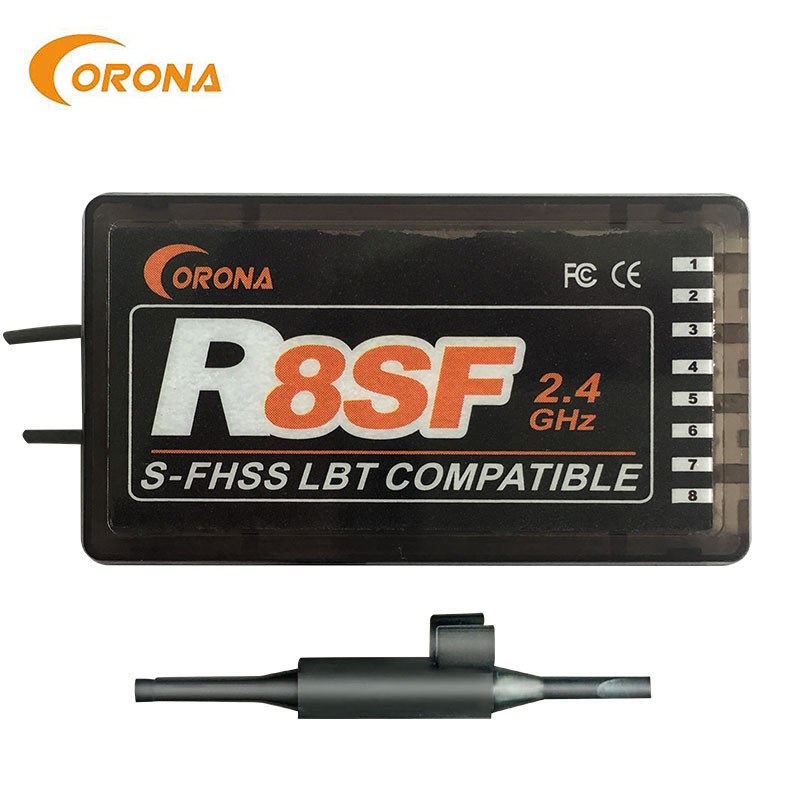

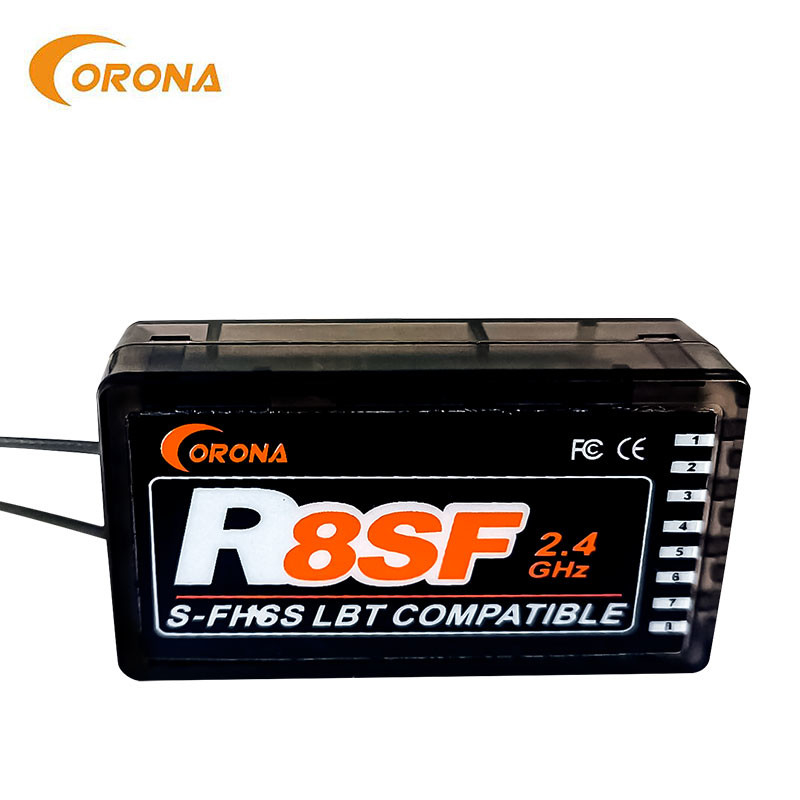

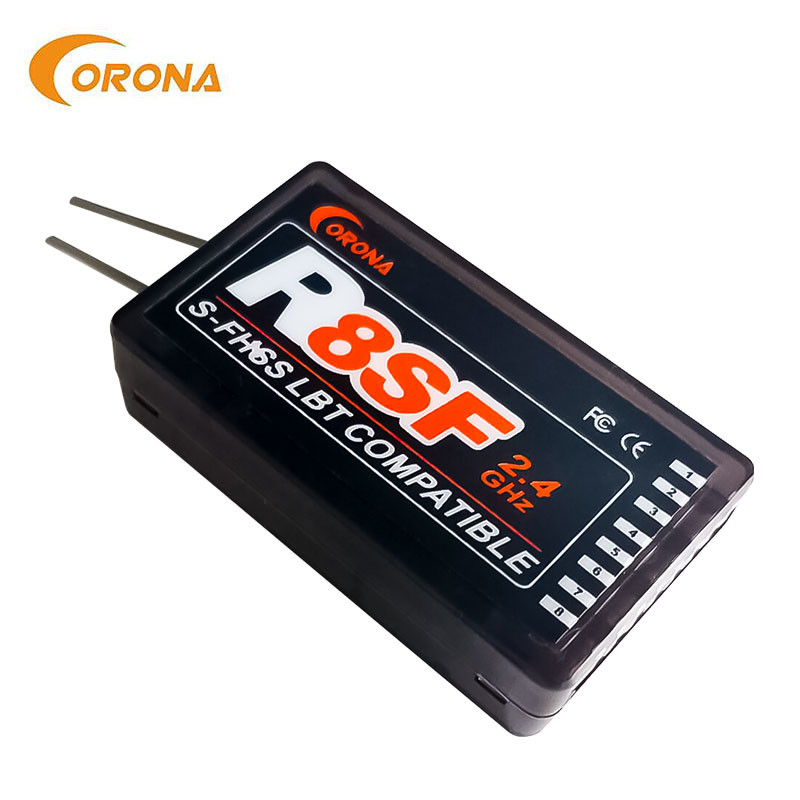

Corona R8SF 2.4g 8 channels compatible Futaba SFHSS rc helicopter transmitter receiver

CORONA R8SF support PWM signal . It also has 8 channel . It can compatible with futaba T18SZ ,T14SZ, 4PLS etc.

It's very popular with customer . If you want to OEM , we are welcome.

Any questions about the R8SF receiver , pls contact us .

Product Description :

Packing & Delivery

Selling Units: Single item

Single package size: 10X14.2X2.2 cm

Single gross weight: 0.023 kg

Feature:

• Without the use of S.bus output support expanding servo channels, R8SF has 8 PWM channels, R6SF has 6 PWM channels and R4SF has 4 PWM channels.
• With the use of S.BUS output support expanding servo channels, R8SF outputs S.BUS signal on the 8th channel, R6SFoutputs S.BUS signal on the 6th channel and R4SF outputs signal on the 4th channel, the rest channels still output standard PWM signal.
• Without S.BUS output support, 20.4mS latency after binding analog servos; with S.BUS output support, 13.6mS latency after binding digital serovs ,which helps smooth flight.
• Specifications:
•
• Voltage Range : 3.6~8.5V
• Operating Current: 45mA-60mA
• Operation temperature: -10~70 degC
• Latency: 13.6mS or 20.4mS
• Sensitivity: about -100dBm for R8SF, -98dBm for R6SF and -95dBm for R4SF
• Weight: 11g for R8SF, 8g for R6SF and 7g for R4S

• Bind procedure:

•

• Turn on the S-FHSS/FHSS transmitter, leave it 0.5M~1M away the receiver.
• Connect the battery to the receiver while pressing receiver’s F/S button.
• Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
•

• Fail-safe setting:

  R8SF, R6SF or R4SF set failsafe on the S-FHSS/FHSS transmitter just like the operation of the FUTABA receivers if the feature exist. We highly recommend you set failsafe feature while flying your models. An example of a useful Failsafe setting would be to shut down the model’s throttle, so that it does not fly or drive away uncontrolled.
