Analog And Digital Servo Motor Waterproof Micro Servo Rc Boat Corona DS561WP

Basic Information
Place of Origin: Wuxi, China
Brand Name: corona
Certification: CE ROHS ISO9001
Model Number: DS561WP
Minimum Order Quantity: 10
Price: $8.9/pcs-$11.4/pcs
Packaging Details: carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 50000pcs/monthly
Detail Information
High Light:

analog and digital servo motor


waterproof micro servo


Corona DS561WP

Product Description

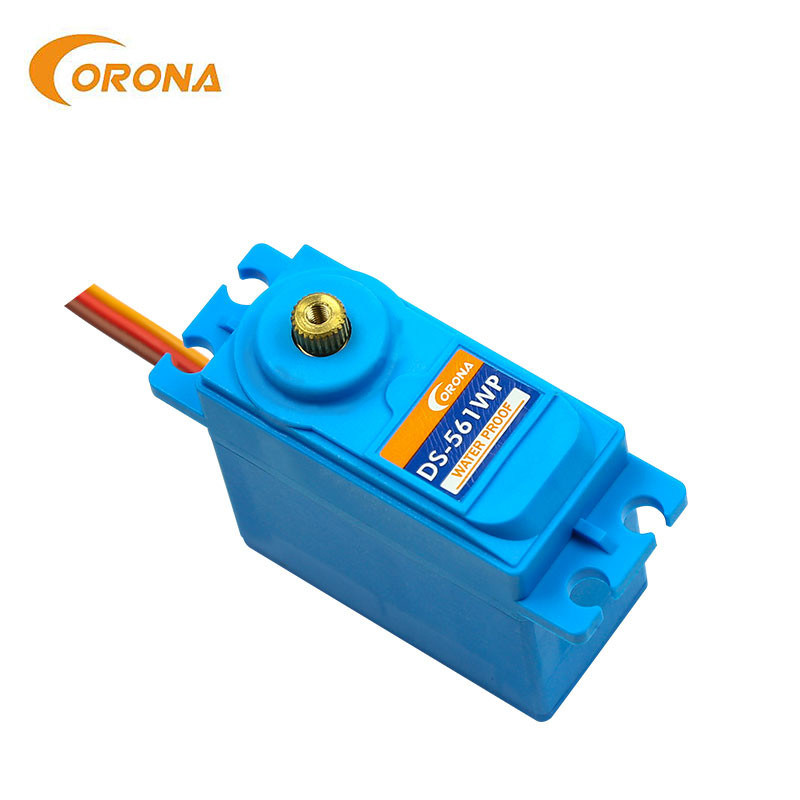

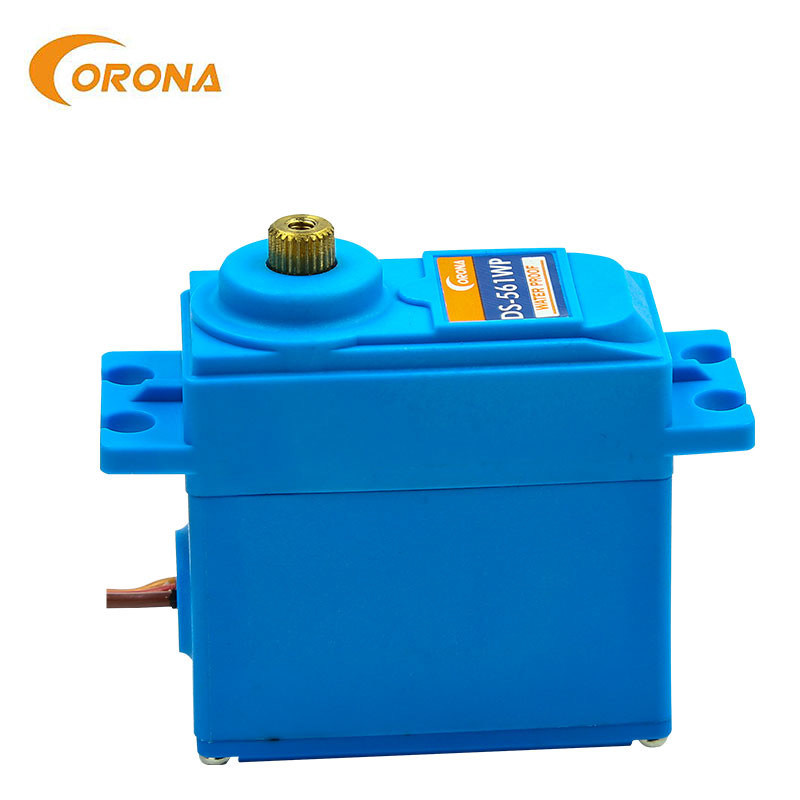

Corona DS561WP standard size waterproof metal gear rc boat industrial servo motor

DS561WP is a waterproof digital servo with metal gear. It can be used under deep water.
Warranty: 3months-1year
Place of Origin:Jiangsu, China
Brand Name:Corona
Model Number:DS561WP
Protect Feature:Waterproof
AC Voltage:4.8V/6.0V
Operating Voltage:4.8V/6.0V
Operating Current:300mA / 400mA
Dead band:≤3uSec
Potentiometer:High Precision
Ball bearing:MR106/MR126
Connector wire length:300mm
Supply Ability
Supply Ability3000 Piece/Pieces per Day
Packaging & delivery
Packaging Details
one pieces per color box packing
Lead time:
Quantity(pieces) 1 - 1000 >1000
Lead time (days) 20 To be negotiated


Product Description


Item No DS561WP
size 41.8*20*40.8mm(1.65"*0.82"*1.61")
Weight 63.6g
Operating Voltage 4.8V/6.0V
Operating Current 300mA / 400mA
Operateing speed 0.18sec.60º / 0.16sec.60º
Stall torque
Dead band ≤3uSec
Operating speed 40º/one side pulse traveling
Potentiometer High Precision
Ball bearing MR106/MR126
Gear Metal
Connector wire length 300mm
Operating Temperature Range -20℃ to +60℃

These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.

Analog And Digital Servo Motor Waterproof Micro Servo Rc Boat Corona DS561WP 0

Servo Applications:
1. Electric lock (anti-heft door lock servo)

2. Smart lamp Switch Servo

3. Washing machine safety mechanism servo

4. Water/gas valve control Servo
5. Luggage case lock servo

6. Camera gimbal control servo
7. UAV heavy duty servo

7. Servo Release Servo Drop

9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo

11. Smart bike gear change servo
12. Electric car mirror servo

13. Car seat adjustment servo
14. Robot arm servo

15. Medical equipment servo

16. Curtain Servo

17. Robot servo

18. Wheel servo

19. Car window winding servo

Corona DS561WP standard size waterproof metal gear rc servo motor
