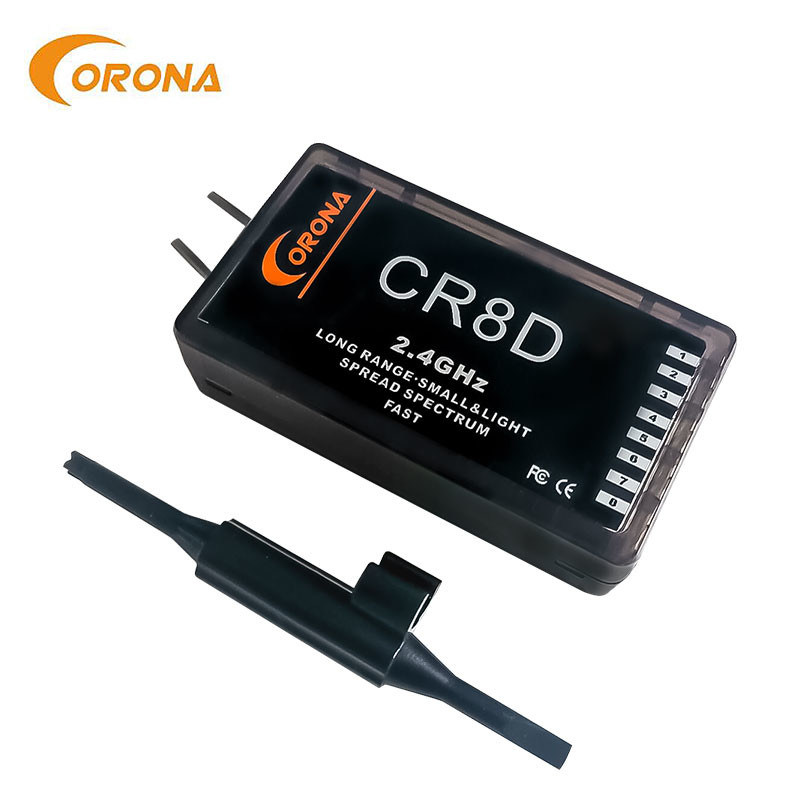

2.4g DSSS Receiver 8ch Rc Receiver Compatible JR Transmitter Corona CT8J CR8D Set

Corona CT8J+CR8D Set 2.4g DSSS rc transmitter and receiver compatible JR transmitter

Receiver and Transmitter setup Instructions

1. Turn the transmitter on and adjust your transmitter to PPM mode and then turn the transmitter off .

2. Press and hold the programming button on the transmitting modele, turn the transmitter on, then you can release the button.

The Led on the Module will flash between red and yellow indicating the transmitter is ready to bind with the receiver.

3. Press and hold the button on the receiver and power the receiver on . The LED on the receiver will flash two times , indicating the receiver have recognized the transmitter. Turn off the transmitter and reveiver.

4. Power on the receiver without pressing any button , then power up the transmitter also without pressing button,, the LED on the transmitter light yellow . The RF-link will normally connect in 15-20 seconds between transmitter and the receiver. If linked the LED on the receiver will light red without any flash indicating the receiver is operating properly . If the LED flashes sometime or does not light at all . Repeat this step until link is connected properly .
