Corona Dmss Receiver Rc Jr 2.4 G Receiver Rc Remote Control Corona R8DM-SB

Basic Information
Place of Origin: China
Brand Name: CORONA
Certification: CE ROHS
Model Number: R8DM-SB
Minimum Order Quantity: 2pcs
Price: $12.69/pieces -$16.51 pieces
Packaging Details: one pieces per color box packing.
Delivery Time: 7 working days
Payment Terms: T/T, Western Union,Paypal . Alibaba Trade Assurance
Supply Ability: 10000 pcs/per Month
Detail Information
Name: R8DM-SB Age Range: 14 Years & Up
Compatibility: XG6,XG7,XG8 ,XG11 And XG14 Under DMSS Protocol Mode Operating Current: 60mA Max And 35mA Under Linked
Operating Voltage: 3.6~8.5V Latency: 13mS Or 14mS
Sensitivity: About -100dBm Weight: 11g
High Light:

Jr 2.4g


dmss rc receiver


corona dmss receiver

Product Description

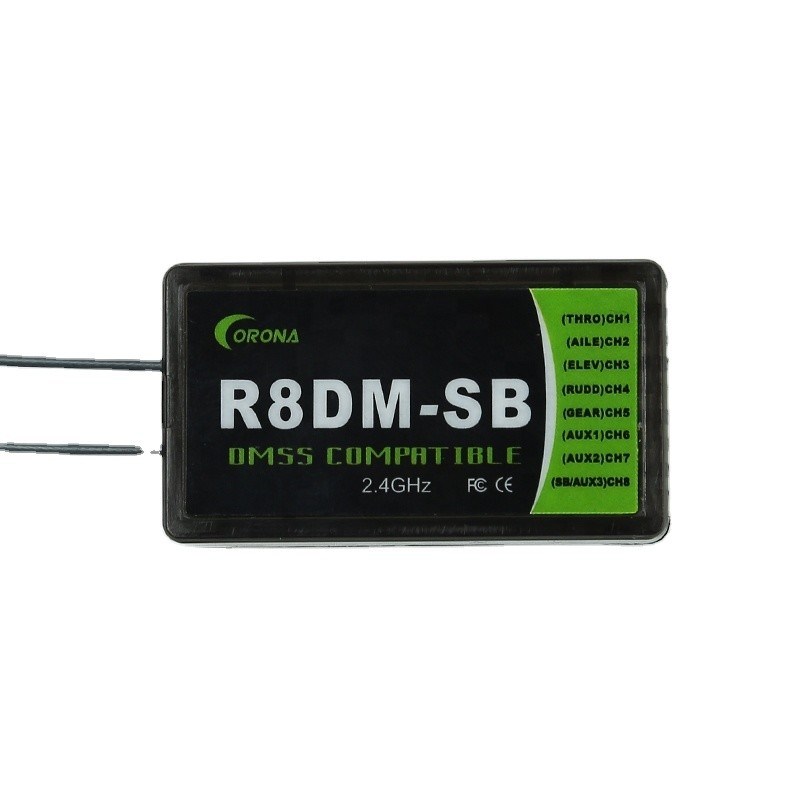

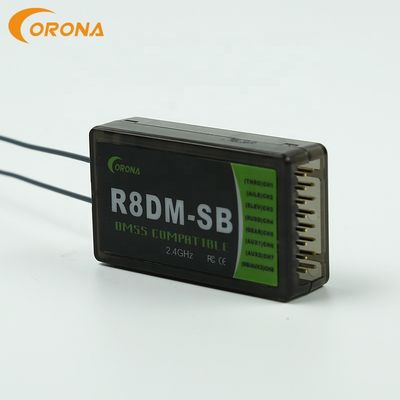

 Corona R8DM-SB 2.4g rc remote control compatible JR DMSS Receiver for rc helicopter


The weight for CORONA R8DM-SB receiver is 11g . R8DM-SB has SBUS function . When you use SBUS function pls note the  8th channe has this function .  R8DM-SB support PWM signal output . It has 2 antennas . When link with XG7 transmitter the latency is 13mS .


If you need OEM service pls  to contact us .


Product Description

XG6,XG7,XG8 ,XG11 and XG14 under DMSS protocol mode

Operating Current

60mA max and 35mA under linked
Operating Voltage



13mS or 14mS


about -100dBm





Corona Dmss Receiver Rc Jr 2.4 G Receiver Rc Remote Control Corona R8DM-SB 0
CORONA 2.4GHz DMSS Compatible Receiver is designed to use with JR DMSS 2.4GHz transmitters, such as XG6,XG7,XG8 ,XG11 and XG14 under DMSS protocol mode.

l Without the use of S.bus output support expanding servo channels, R8DM has 8 PWM channels, R6DM has 6 PWM channels and R4DM has 4 PWM channels.

l With the use of S.BUS output support expanding servo channels, R8DM outputs S.BUS signal on the 8th channel, R6DM outputs S.BUS signal on the 6th channel and R4DM outputs signal on the 4th channel, the rest channels still output standard PWM signal.

l 13mS latency under linking with JR-XG7, and 14mS latency under linking with other transmitters.

l Voltage Range : 3.6~8.5V

l Operating Current: 35mA~60mA

l Operation temperature: -10~70 degC

l Latency: 13mS or 14mS

l Sensitivity: about -100dBm for R8DM , -98dBm for R6DM and -96dBm for R4DM
Weight: 11g for R8DM , 8g for R6DM and 7g for R4DM

Corona Dmss Receiver Rc Jr 2.4 G Receiver Rc Remote Control Corona R8DM-SB 1
