| Place of Origin: | Wuxi, China |
|---|---|
| Brand Name: | corona |
| Certification: | CE ROHS ISO9001 |
| Model Number: | DS843MG |
| Minimum Order Quantity: | 2pcs |
| Price: | USD8.4-6.0 |
| Packaging Details: | box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 3000PCS PER DAY |
| High Light: | industrial servo motor for sale,small industrial servo motor,Corona DS843MG |
||
|---|---|---|---|

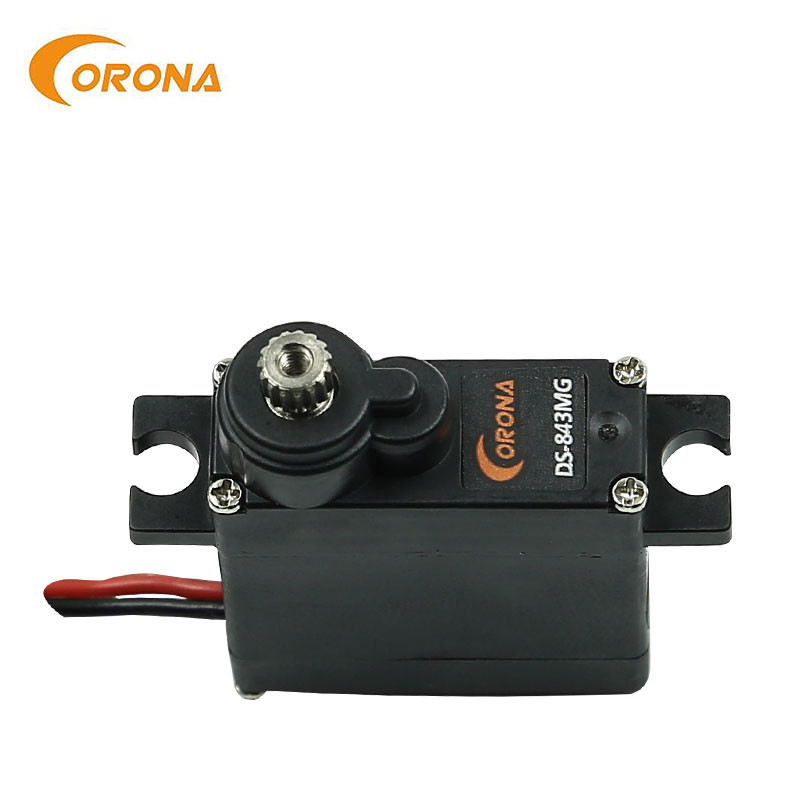

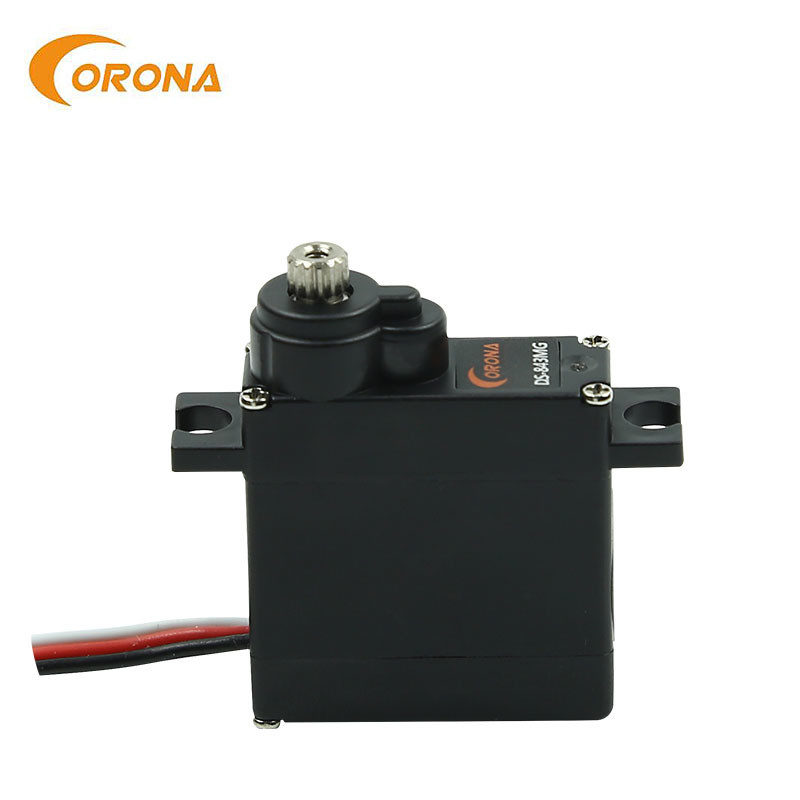

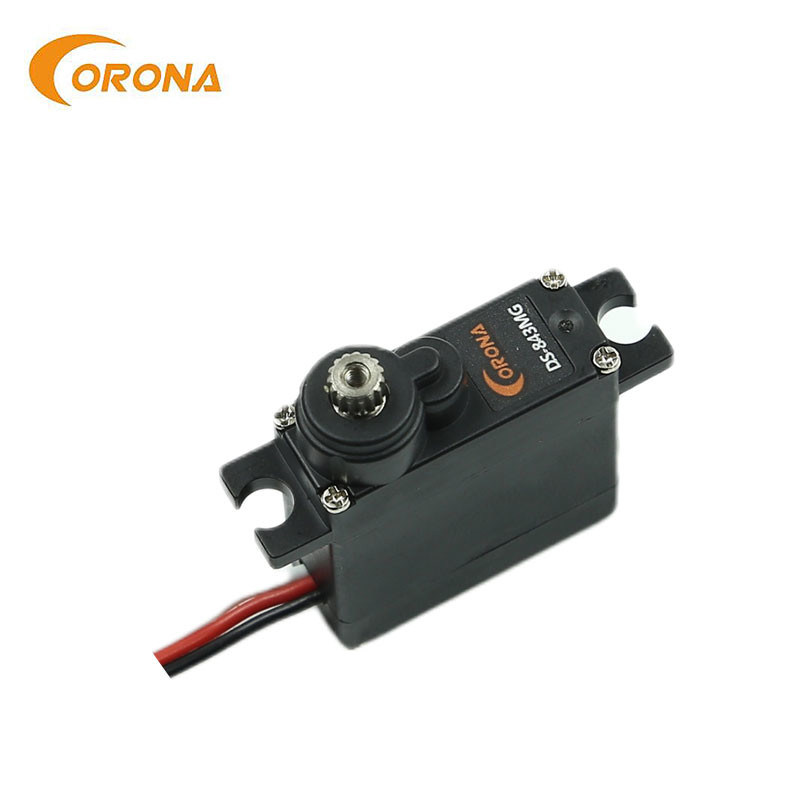

Corona DS843MG 23x9x23mm rc metal gear digital servo for sale
| Item No | DS843MG |
| Size | 23x9x23mm(0.9"x0.35"x0.9") |
| Weight | 8.5g |
| Operating Voltage | 4.8V / 6.0V |
| Operating Current | 200mA / 220mA |
| Operateing speed | 0.12sec.60º/ 0.10sec.60º |
| Stall torque | 4.0kg.cm / 4.8kg.cm |
| Dead band | ≤3uSec |
| Operating Travel | 40º/one side pulse traveling 400us |
| Potentiometer | High precision of Japan origin |
| Ball bearing | MR74 |
| Gear | Metal |
| Connector wire length | 200mm |
| Operating Temperature Range | -20 ℃ to +60℃ |
These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
Servo Applications:
1. Electric lock (anti-heft door lock servo)
2. Smart lamp Switch Servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Luggage case lock servo
6. Camera gimbal control servo
7. UAV heavy duty servo
7. Servo Release Servo Drop
9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Robot arm servo
15. Medical equipment servo
16. Curtain Servo
17. Robot servo
18. Wheel servo
19. Car window winding servo
