32g Micro Servo Metal Gear Rc 5kg 0.15sec Medium Size Corona DS339MG

Basic Information
Place of Origin: Wuxi, China
Brand Name: corona
Certification: CE ROHS ISO9001
Model Number: DS339MG
Minimum Order Quantity: 2pcs
Price: USD9.0-6.4
Packaging Details: box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000PCS PER DAY
Detail Information
High Light:

32g metal gear servo

,

rc 5kg servo

,

Corona DS339MG


Product Description

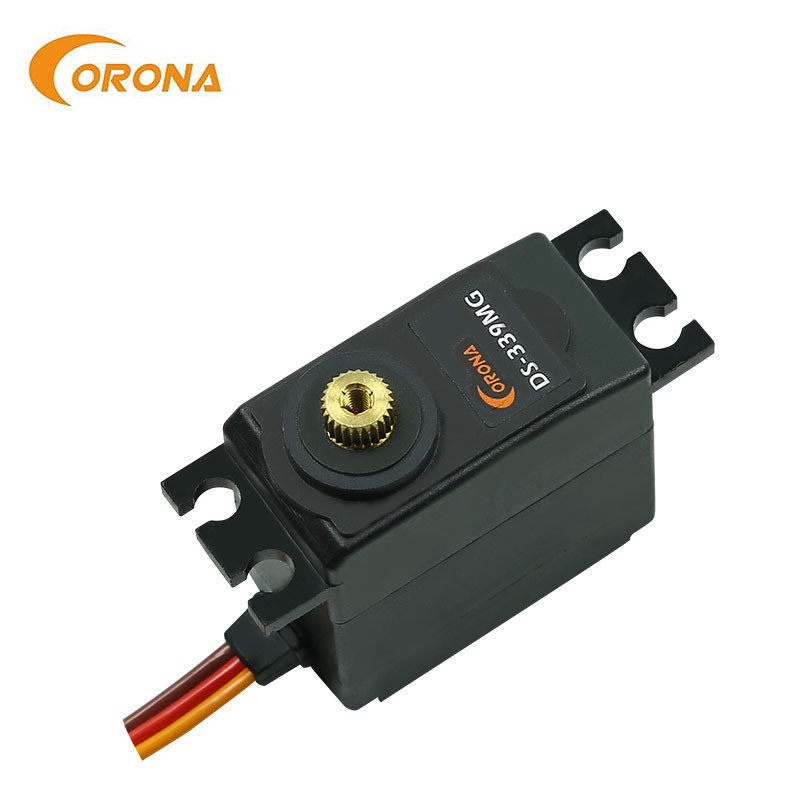

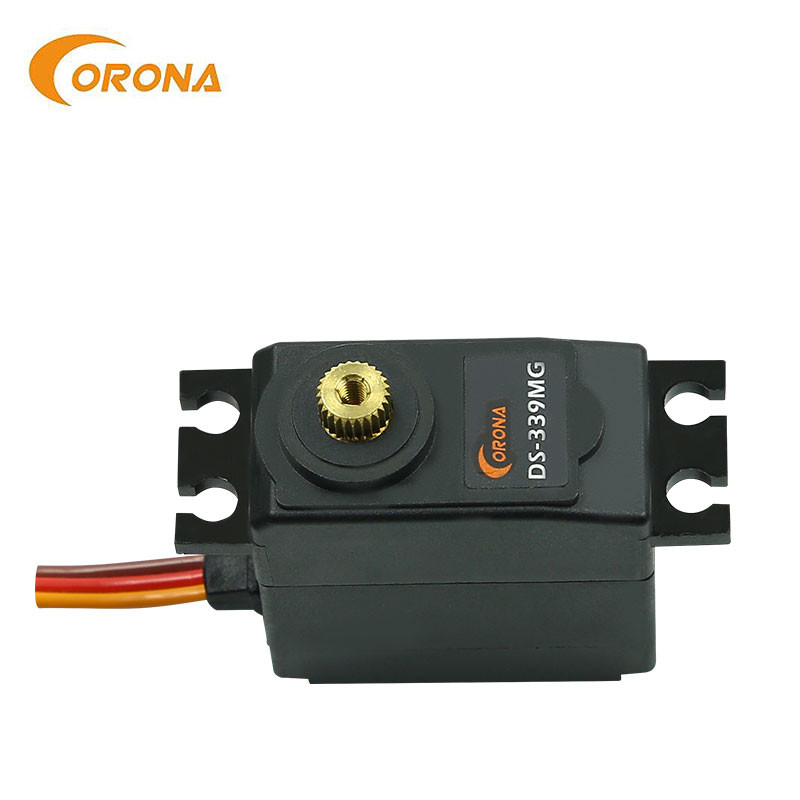

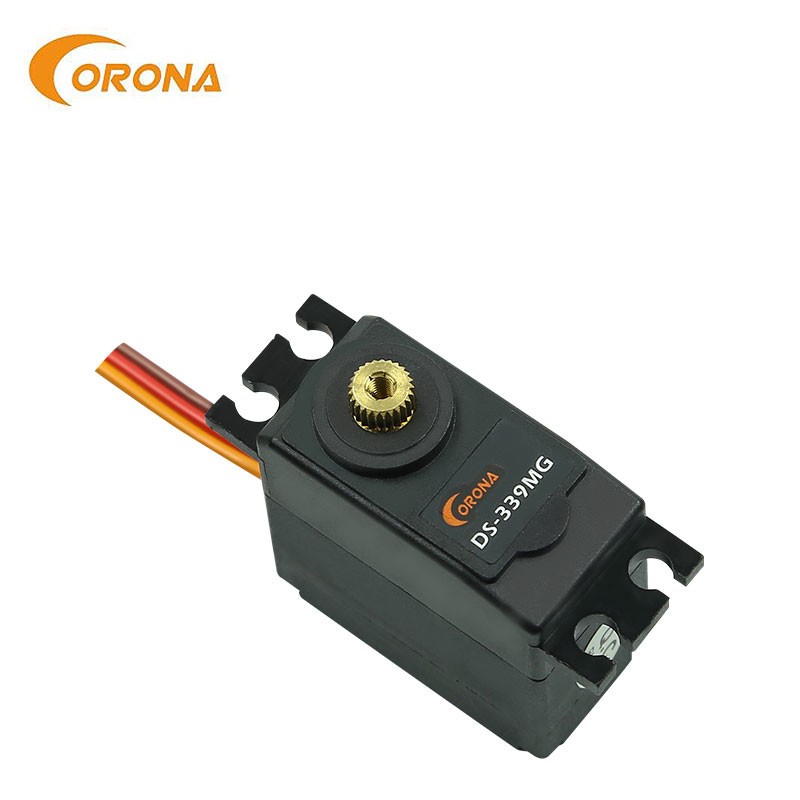

Corona DS339MG 5kg 0.15sec medium size digital metal gear rc toys boat helicopter servo


Inside, an RC servo typically consists of a brushed DC motor with a gear train and a built-in H-Bridge motor driver. A potentiometer attached to the shaft provides position feedback to the control circuit. RC Servos are available in a wide variety of sizes, torque and speed ratings







Product Description

Corona DS339MG 5kg 0.15sec medium size digital metal gear rc toys boat helicopter servo

Item No DS339MG
Size 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight 32g
Operating Voltage 4.8V / 6.0V
Operating Current 300mA / 400mA
Operateing speed 0.14sec.60º/ 0.15sec.60º
Stall torque 4.4kg.cm / 5.0kg.cm
Dead band ≤3uSec
Operating speed 40º/one side pulse traveling 400us
Potentiometer 5 slider/Indirect Drive
Ball bearing MR106
Gear Metal
Connector wire length 300mm
Operating Temperature Range -20 ℃ to +60℃
These iconic servos have been applied by plenty of groups, like hobbyists, students, engineers,dreamers,etc. Low cost and reliable servos are available to you. Please feel free to contact us if you have bulk orders or custom and even OEM / ODM.
32g Micro Servo Metal Gear Rc 5kg 0.15sec Medium Size Corona DS339MG 1

Servo Applications:
1. Electric lock (anti-heft door lock servo)

2. Smart lamp Switch Servo

3. Washing machine safety mechanism servo

4. Water/gas valve control Servo
5. Luggage case lock servo

6. Camera gimbal control servo
7. UAV heavy duty servo

7. Servo Release Servo Drop

9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo

11. Smart bike gear change servo
12. Electric car mirror servo

13. Car seat adjustment servo
14. Robot arm servo

15. Medical equipment servo

16. Curtain Servo

17. Robot servo

18. Wheel servo

19. Car window winding servo
